Keyfix PPL Frame Cramp Movement Tie
Verified by manufacturer 4 days ago
PPL - 125
PPL - 125
Frame cramp movement tie allowing for horizontal deflection.
Application
Movement ties installed at 300 mm vertical centres within movement joints between a masonry panel and a concrete or steel structure.
Description

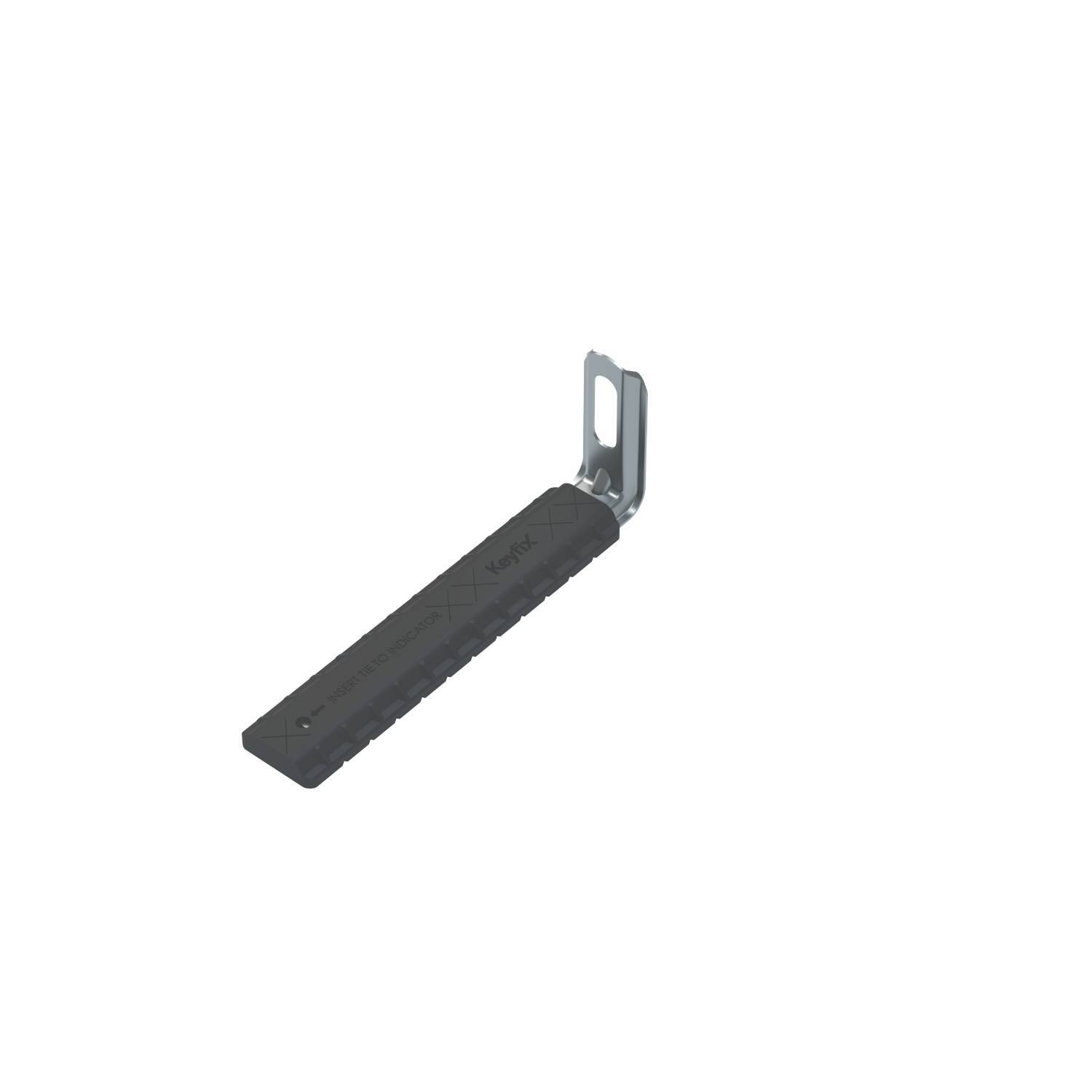

Stainless steel Frame cramp movement tie to be used with Keyfix debonding sleeve in vertical movement joints to resist lateral wind loads and to allow for expansion and contraction of the masonry.
Features and benefits:
- Designed in accordance with PD 6697:2019.
- UKCA and CE accredited.
- Tie manufactured from grade 304 austenitic stainless steel (grade 316 available on request).
- Slotted upstand to provide 22 mm vertical adjustment during installation.
- Debonding sleeve manufactured from recycled polypropylene (rPP).
- Allows for expansion and contraction of the masonry whilst restraining lateral loads.
General information
Color | Silver |
Material | Stainless steel |
Shape | Other |
Length | 125 mm 150 mm 175 mm 200 mm 225 mm |
Uniclass | |
CAWS | F30/27 Wall ties F30/282 Slip ties |
SKU Code | PPL - 125 |
Specification data - General-purpose slip ties
Classification data | |
Standard | To BS EN 845-1. |
Material | Austenitic stainless steel, grade 304. Guidance for specification option: As standard. Austenitic stainless steel, grade 316. Guidance for specification option: Available on request. |
Length | 125 mm. |
End types | Asymmetrical upstand with debonding sleeve. |
Design embedment length (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Additional requirements | |
Shear load capacity | 700 N/m. Manufacturer guidanceDesign shear load capacity. |
Sustainability data
Material | Stainless steel |
Similar products from Keyfix
Keyfix PPE Movement Tie
Keyfix PPH Frame Cramp Movement Tie
