Keyfix PPE Movement Tie
Verified by manufacturer 4 days ago
PPE - 175
PPE - 175

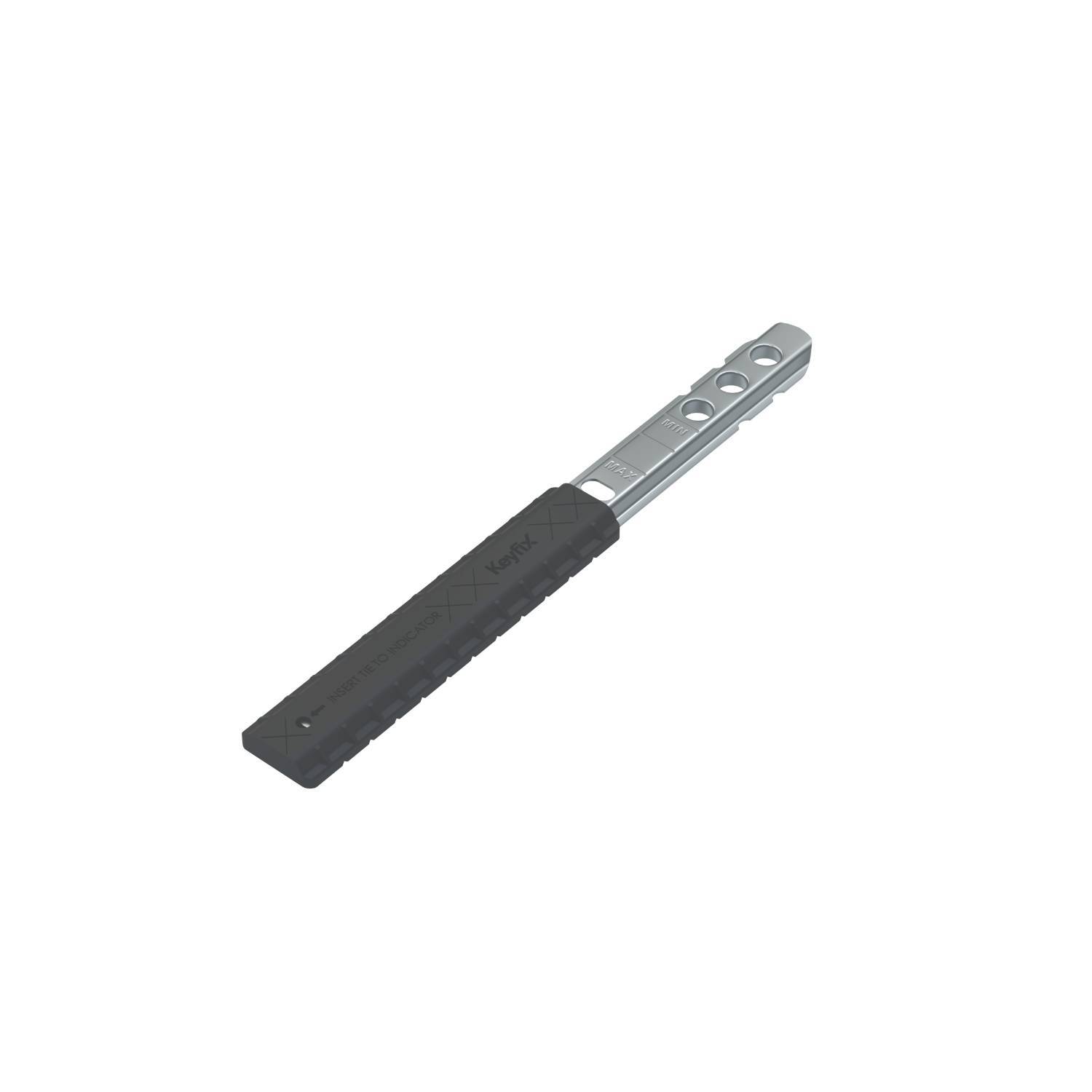

Movement tie allowing for horizontal deflection.
Application
Movement ties installed at 300 mm vertical centres within movement joints between two masonry panels.
Description
Stainless steel movement tie to be used with Keyfix debonding sleeve in vertical movement joints to resist lateral wind loads and to allow for expansion and contraction of the masonry.
Features and benefits:
- Designed in accordance with PD 6697:2019.
- UKCA and CE accredited.
- Tie manufactured from grade 304 austenitic stainless steel (grade 316 available on request).
- Debonding sleeve manufactured from recycled polypropylene (rPP).
- Allows for expansion and contraction of the masonry whilst restraining lateral loads.
General information
Color | Silver |
Material | Stainless steel |
Shape | Other |
Length | 175 mm 200 mm 225 mm 250 mm |
Uniclass | |
CAWS | F30/26 Wall ties F30/282 Slip ties |
SKU Code | PPE - 175 |
Specification data - General-purpose slip ties
Classification data | |
Standard | To BS EN 845-1. |
Material | Austenitic stainless steel, grade 304. Guidance for specification option: As standard. Austenitic stainless steel, grade 316. Guidance for specification option: Available on request. |
Length | 175 mm. |
End types | Asymmetrical embedment with debonding sleeve. |
Design embedment length (minimum) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Additional requirements | |
Shear load capacity | 1811 N/m. |
Sustainability data
Material | Stainless steel |
