Kestrel Aluminium Thermal Commercial Pivot Door System - Aluminium door system
Verified by manufacturer 4 months ago

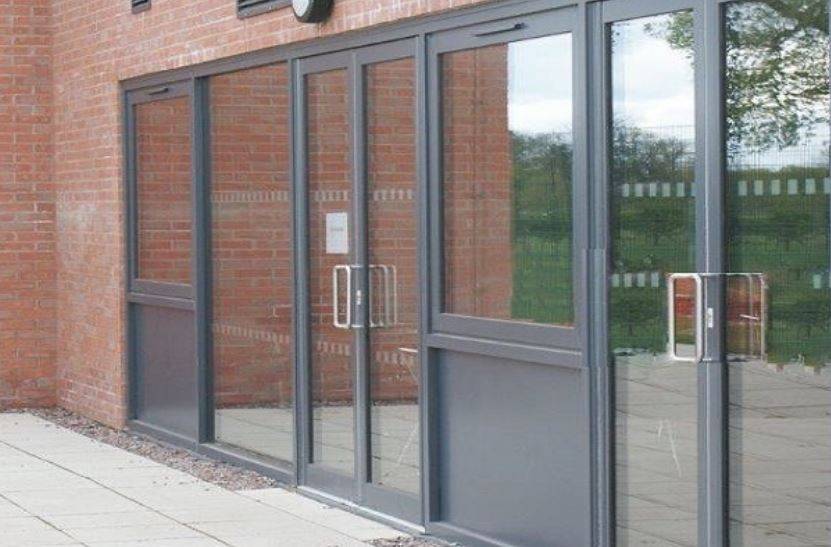

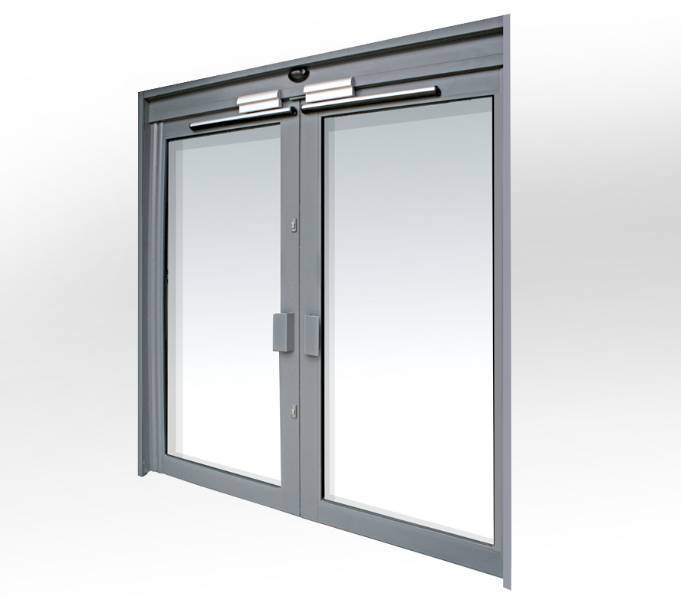

Double door
Double door
Aluminium commercial pivot door.
Application
Designed for use as stand alone units or use in conjunction with the Thermal Framing System. Doors are pivoted with a finger guard hinge jamb only, and are suitable for all high traffic areas such as schools, offices and commercial buildings where enhanced building regulations and security standards are required.
Description
Aluminium commercial pivot door.
Features and benefits:
- The twin brush seal, wool pile weather-stripping and co-ordinated suite of profiles covers the majority of entrance door requirements.
- Slimline profiles minimize sight-lines.
- Good thermal performance.
- Passes the requirements of PAS24: 2012.
- DDA compliant.
Hardware supplied as standard:
- Hook bolt and bar bolt dead locks.
- Relevant face plates and armour strikes.
- Latch locks, standard strikes or electric strikes.
- Profile cylinders to suit above - key variations possible, thumbturn options.
- Push bar exit devices - concealed rod, face fitted rod or push paddle types.
- Concealed overhead closer - end load.
- Letter plates.
- Pad and tubular handles, flush pulls.
- Flush bolts.
General information
Color | Silver Guidance for specification option: Silver AA25. Other Manufacturer guidanceAll Ral Colours and BS Colours are available. |
Finish | Mill Anodized Powder-coated |
Material | Aluminium Guidance for specification option: Alloy 6060/6063 T6, complying with the recommendations of BS EN 12020-2: 2008. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceMaximum width: 1100. |
Height | Bespoke Manufacturer guidanceMaximum height: 2400 mm. |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Aluminium doorsets
Standard | To BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS 4873:2016, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017. |
Third-party certification | PAS 24: 2016. |
Configuration | Double leaf, left hand, open in.Double leaf, left hand, open out.Double leaf, right hand, open in.Double leaf, right hand, open out.Single leaf, left hand, open in.Single leaf, left hand, open out.Single leaf, right hand, open in.Single leaf, right hand, open out. |
Doorset size | 2200 x 2500 mm.Guidance for specification option: Maximum width x height. |
Performance | |
Strength and durability | Hard and soft body impact test: Pass. |
Frame | |
Material | Aluminium. |
Threshold | Extended square threshold KAS761.Ramp threshold KAS758.Square back threshold KAS759.Square threshold KAS760. |
Perimeter seals or inserts | Twin brush. |
Finish | |
Coating | Mill.Anodized.Powder coated. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Installation fasteners | Polyamide screws. |
Door leaf | |
Thickness | Manufacturer guidanceConsult manufacturer and insert requirements. |
Material | Aluminium. |
Perimeter seals | Twin brush. |
Glazing | |
Type | 28 mm.34 mm.38 mm.Other.Guidance for specification option: Maximum thickness 46 mm. |
Beading | |
Type | KAS631.Guidance for specification option: 28 mm glazing. KAS632.Guidance for specification option: 28 mm glazing. KAS633.Guidance for specification option: 34 mm glazing. KAS634.Guidance for specification option: 34 mm glazing. KAS635.Guidance for specification option: 38 mm glazing. KAS636.Guidance for specification option: 38 mm glazing. Manufacturer guidanceClip fit, internally fitted. |
Finish | |
Coating | Mill.Anodized.Powder coated. |
External colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Internal colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Hardware | Manufacturer guidanceDoor hardware is available to construct pivot doors with finger-guard door jamb stiles only. Single door sets have passed the requirements of PAS24: 2012 with KAS450 panic lock device including touch bar and key/lever handle set for external entry override. |
Accessories | Not required.KAS450 - External lever handle.KAS450 3 Star 90 mm profile cylinder/ guard/ support.KAS450 AR Touch bar.Guidance for specification option: Black/Sliver only - 900 or 1200 mm widths. KAS504.H MS 2200 Hooklock with KAS529 Europrofile cylinder.KAS574 Concealed Overhead Closer hold open.Handles to comply with DDA.V-locks. |
Jointing | Mechanical. |
Glazing | 28 – 47 mm thick. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg COâ‚‚ eq/kg Self declared |
Recyclability | Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % |
Literature
PAS24 Thermal Commercial door with Magnetic V Locks

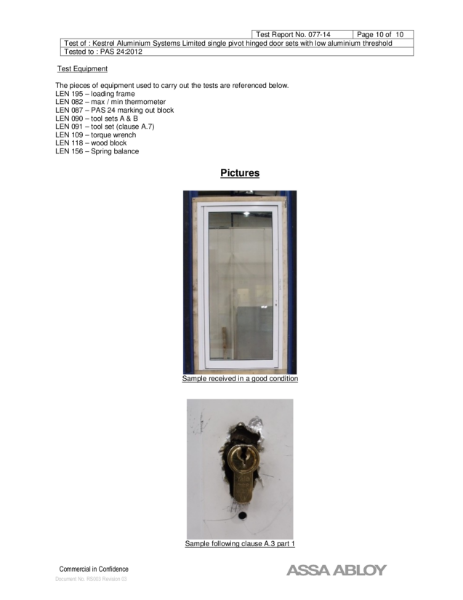

PAS24 Thermal Commercial door single swing
PAS24 Thermal Commercial door Double
PAS24 Thermal Commercial Door with Panic Hardware

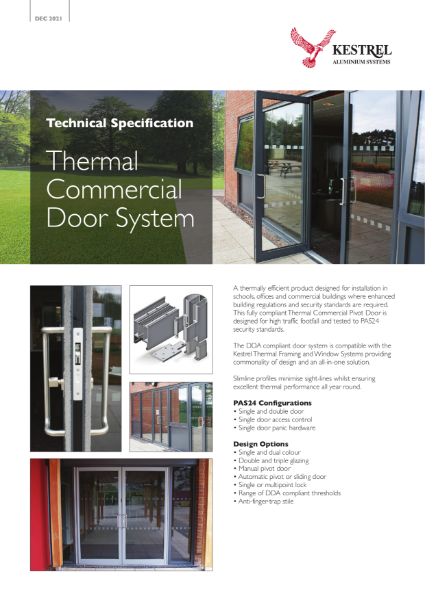

Datasheet Kestrel Thermal Commercial Door System
Case studies

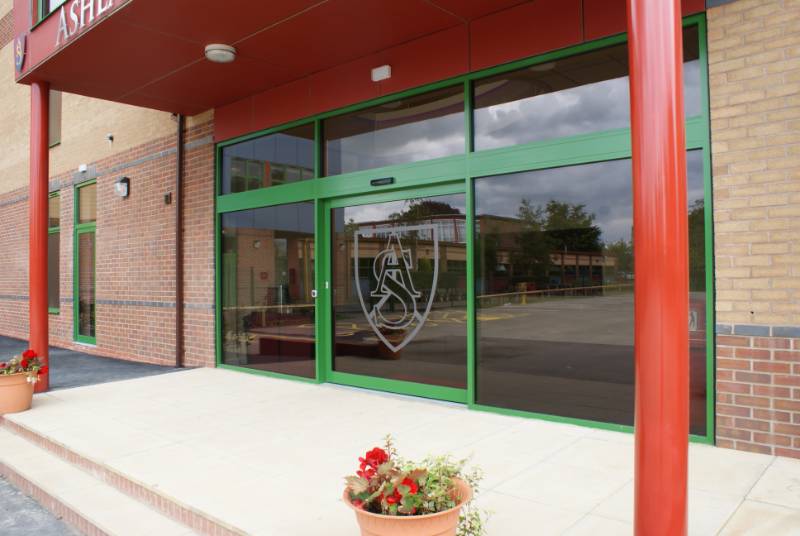

Kestrel Aluminium. Case Study: Ashlawn School, Rugby

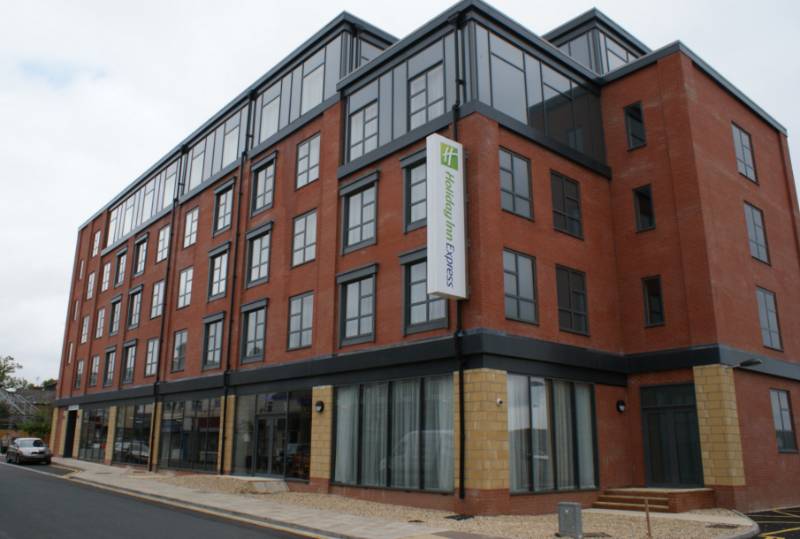

Kestrel Aluminium. Case Study: Holiday Inn, Grimsby

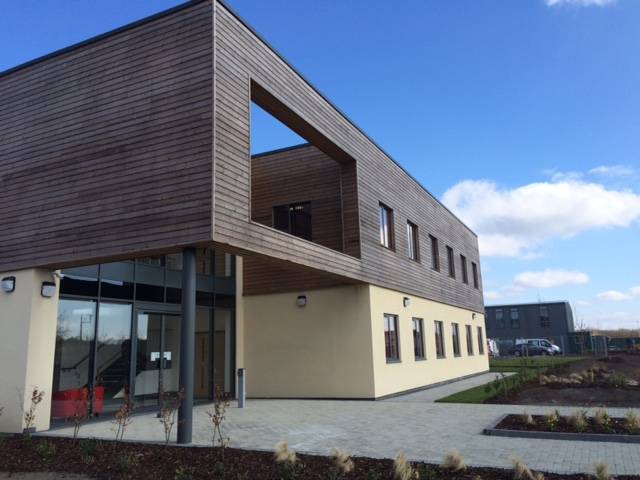

Kestrel Aluminium. Case Study: Welsh Air Ambulance Charity HQ, Llanelli

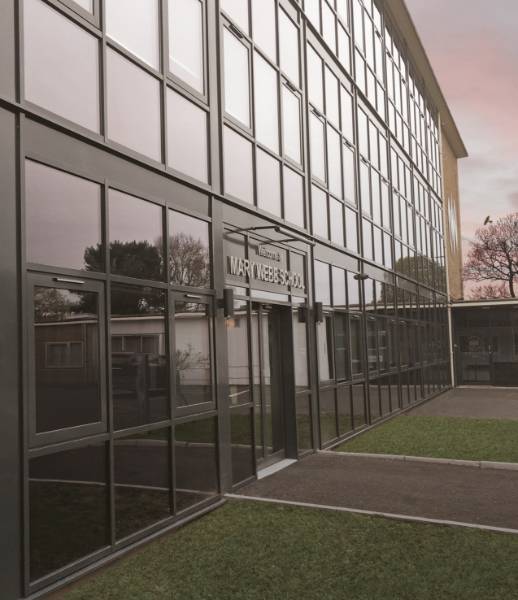

Kestrel Aluminium. Case Study: Mary Webb School, Pontesbury, Shropshire
Kestrel Aluminium. Case Study: Whipsnade Zoo, Dunstable
Kestrel Aluminium. Case Study: Alder Hey Children's Hospital, Liverpool

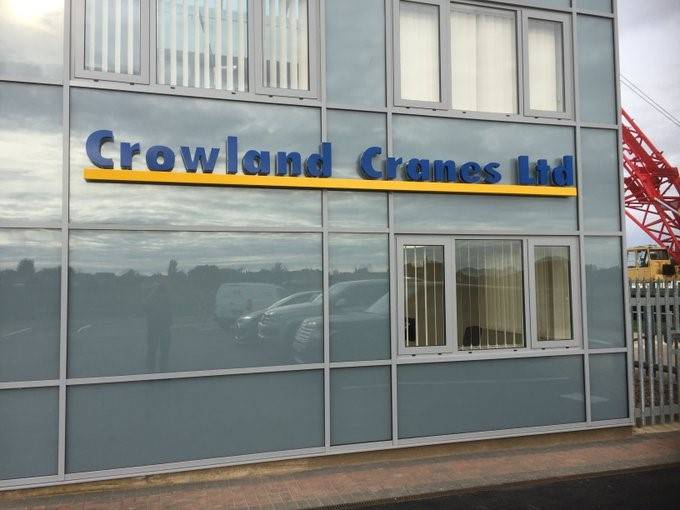

Kestrel Aluminium. Case Study: Crowland Cranes, Peterborough
