Kestrel Aluminium Thermal Commercial Pivot Door System - Aluminium door system
Kestrel Aluminium Thermal Commercial Pivot Door System - Aluminium door system

Verified 4 months ago

Kestrel Aluminium Systems

Double door

Verified 4 months ago

Kestrel Aluminium Systems

Single door

Summary

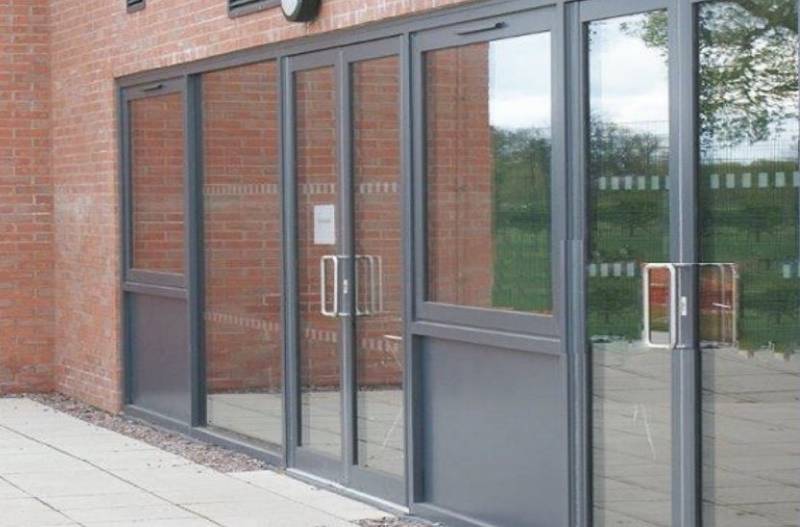

Aluminium commercial pivot door.
Aluminium commercial pivot door.
Color
Silver, Other
Silver, Other
Finish
Mill, Anodized, Powder-coated
Mill, Anodized, Powder-coated
Material
Aluminium
Aluminium
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Ten year
Ten year

Specification

Standard
To BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS 4873:2016, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017.
To BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS 4873:2016, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017.
Third-party certification
PAS 24: 2016.
PAS 24: 2016.
Configuration
Double leaf, left hand, open in., Double leaf, left hand, open out., Double leaf, right hand, open in., Double leaf, right hand, open out., Single leaf, left hand, open in., Single leaf, left hand, open out., Single leaf, right hand, open in., Single leaf, right hand, open out.
Double leaf, left hand, open in., Double leaf, left hand, open out., Double leaf, right hand, open in., Double leaf, right hand, open out., Single leaf, left hand, open in., Single leaf, left hand, open out., Single leaf, right hand, open in., Single leaf, right hand, open out.
Doorset size
2200 x 2500 mm.
1100 x 2500 mm.
Performance
-
-
Strength and durability
Hard and soft body impact test: Pass.
Hard and soft body impact test: Pass.
Frame
-
-
Material
Aluminium.
Aluminium.
Threshold
Extended square threshold KAS761., Ramp threshold KAS758., Square back threshold KAS759., Square threshold KAS760.
Extended square threshold KAS761., Ramp threshold KAS758., Square back threshold KAS759., Square threshold KAS760.
Perimeter seals or inserts
Twin brush.
Twin brush.
Finish
-
-
Coating
Mill., Anodized., Powder coated.
Mill., Anodized., Powder coated.
Installation fasteners
Polyamide screws.
Polyamide screws.
Door leaf
-
-
Material
Aluminium.
Aluminium.
Perimeter seals
Twin brush.
Twin brush.
Glazing
-
-
Type
28 mm., 34 mm., 38 mm., Other.
28 mm., 34 mm., 38 mm., Other.
Beading
-
-
Type
KAS631., KAS632., KAS633., KAS634., KAS635., KAS636.
KAS631., KAS632., KAS633., KAS634., KAS635., KAS636.
Finish
-
-
Coating
Mill., Anodized., Powder coated.
Mill., Anodized., Powder coated.
Accessories
Not required., KAS450 - External lever handle., KAS450 3 Star 90 mm profile cylinder/ guard/ support., KAS450 AR Touch bar., KAS504.H MS 2200 Hooklock with KAS529 Europrofile cylinder., KAS574 Concealed Overhead Closer hold open., Handles to comply with DDA., V-locks.
Not required., KAS450 - External lever handle., KAS450 3 Star 90 mm profile cylinder/ guard/ support., KAS450 AR Touch bar., KAS504.H MS 2200 Hooklock with KAS529 Europrofile cylinder., KAS574 Concealed Overhead Closer hold open., Handles to comply with DDA., V-locks.

Additional properties

Jointing
Mechanical.
Mechanical.
Glazing
28 – 47 mm thick.
28 – 47 mm thick.

Sustainability data

Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Embodied carbon
4.0 kg CO₂ eq/kg
4.0 kg CO₂ eq/kg
Recyclability
Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.
Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.
Recycled content
79 %
79 %
