Rectangular tube - 50 x 60 mm

EH Smith Architectural Solutions

Ceramic/ terracotta baguettes and lamellar elements.

Jump to:

+44 (0)121 713 7200 Website

Application

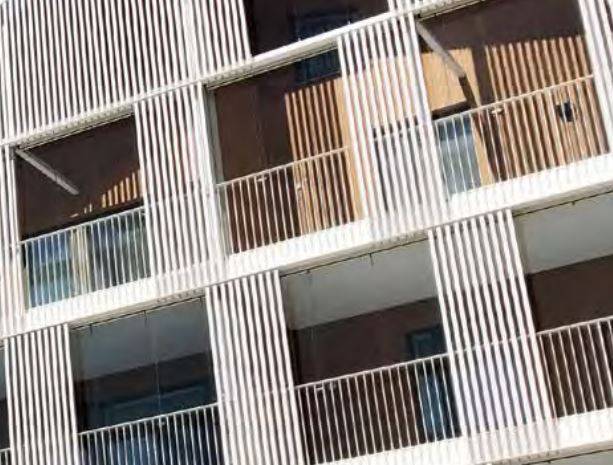

Cladding elements within building applications.

Description

Ceramic/ terracotta baguettes and lamellar elements with the standard range comprising of rectangular tubes and rounded lamellar elements. By using special fastening sets, the individual elements can be merged to form compact units or extended practically infinitely.

Features and benefits:

Individual special shapes and sizes are possible depending on the respective building.
Multiple sizes available.
Multiple colours available.
Particularly suitable for the execution of corners and projections.
Versatile.
Matching rubber spacers available on request.

General information

Color	Cream Yellow Red Pink Orange Green White Black Grey Blue Brown Show more
Material	Ceramic
Shape	Rectangle Elliptical Triangle
Width	50 mm 60 mm 100 mm 140 mm
Height	50 mm 60 mm

Uniclass	Pr_25_71_14_15 Ceramic panelsPrimary
CAWS	H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems)

Specification data - Ceramic panels

Panel size	-
Length	- Manufacturer guidance Up to 1800 mm on request. Insert requirements.
Finish as delivered	Glazed. Unglazed. Guidance for specification option: With four glazed sides.
Colour	6201 cream 1. 6202 cream 2. 6203 cream 3. 6204 cream 4. 6205 cream 5. 6211 yellow 1. 6212 yellow 2. 6213 yellow 3. 6214 yellow 4. 6215 yellow 5. 6221 apricot 1. 6222 apricot 2. 6223 apricot 3. 6224 apricot 4. 6225 apricot 5. 6231 salmon-red 1. 6232 salmon-red 2. 6233 salmon-red 3. 6234 salmon-red 4. 6235 salmon-red 5. 6241 pink 1. 6242 pink 2. 6243 pink 3. 6244 pink 4. 6245 pink 5. 150 lemon-yellow. 151 orange. 152 apple-green. 153 violet. 154 contrasting red. 407 white. 410 cream. 411 ochre. 412 salmon. 396 salmon-red. 414 light-grey. 409 iron-grey. 415 vulcan-grey. 419 black. 416 smoky-blue. 6251 neutral-grey 1. 6252 neutral-grey 2. 6253 neutral-grey 3. 6254 neutral-grey 4. 6255 neutral-grey 5. 6261 grey 1. 6262 grey 2. 6263 grey 3. 6264 grey 4. 6265 grey 5. 6271 blue 1. 6272 blue 2. 6273 blue 3. 6274 blue 4. 6275 blue 5. 6281 green 1. 6282 green 2. 6283 green 3. 6284 green 4. 6285 green 5. 4230 glacier-white, glossy. 4234 chalk-white, matt. 4530 black, glossy. 4534 black, matt. 144 intense blue. 403 red. 397 brick-red. 408 red-brown. 418 brown. 417 patina-green.

Weight	4.29 kg.
Dimensions	50 x 60 mm.
Mounting	The mounting of the substructure must be carried out according to project-specific, static calculation. Guidance for specification option: For horizontal laying, the mounting sets (Art. no. 606, 607) can be used. One has to decide whether only base plates with hole and counterbore or also with M5 thread in addition have to be used. The “supports for mounting parts” must be fixed in the special pieces by means of polyurethane adhesive. For vertical laying, the clamps (Art. no. 685, 686, 687 and 685R, 686R, 687R respectively) can be used. The clamps can be fastened with stainless steel screws (Art. no. 659-01). Manufacturer guidance Consult manufacturer literature for article numbers.
Accessories	Article 606. Guidance for specification option: Base plate optionally available with M5 thread. Weight: 0.14 kg / set. Horizontal laying. Built in unit. Guidance for specification option: Available as continuous profile on request. Horizontal laying. Twin-clamp - Article 685-5060-01. Guidance for specification option: Perforation: 2 x 4.9 mm. Material: AlMg3 H22 (EN AW-5754) painted black. Weight: 35 kg / 1,000 pcs. Vertical laying. A4 stainless steel screw - Article 659-01. Guidance for specification option: Weight: 2.8 kg / box. Nominal dimensions: 4.8 x 16 mm. Box contents: 500 pieces + 1 bit. Vertical laying. Terminal-clamp - Article 685R-5060-01. Guidance for specification option: Perforation: 2 x 4.9 mm. Material: AlMg3 H22 (EN AW-5754) painted black. Weight: 20 kg / 1,000 pcs. Vertical laying.
Laying	Horizontal. Vertical.
