KerAion® - Facade System

Name: KerAion® - Facade System
Brand: EH Smith Architectural Solutions
SKU: xnTpRhbHCzcmL5sAZWeVfV

Verified by manufacturer 7 days ago

SpectraView

EH Smith Architectural Solutions

Large format ceramic facade system.

Jump to:

+44 (0)121 713 7200 Website

Application

Suitable for commercial applications.

Description

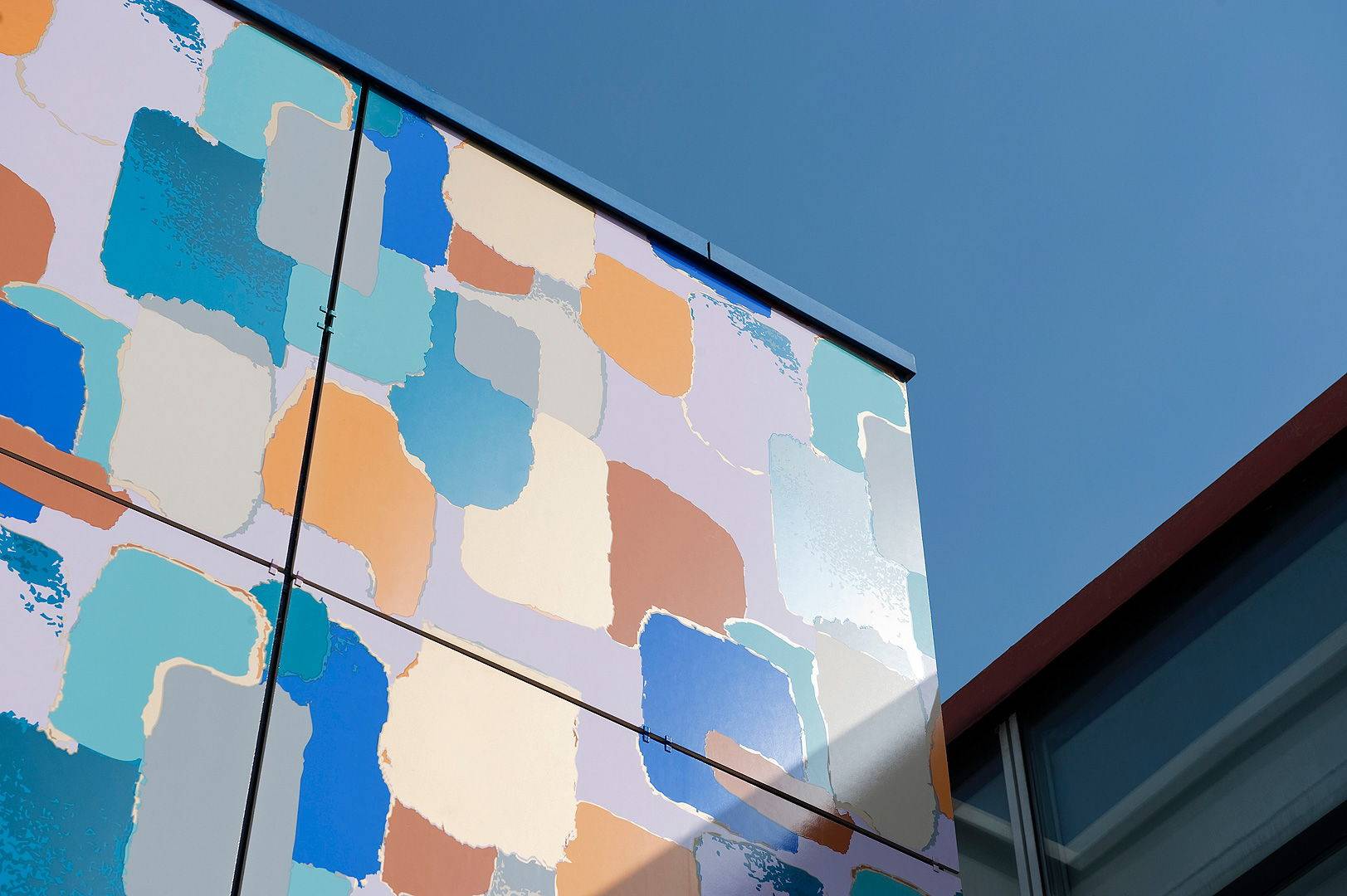

KeraAion® is a facade system with a wide variety of colours. All versions and formats received the general approval of the construction supervisory authority. It is completed by the SpectraView and Design glazed colours in a range of looks such as cement, stone or metal.

Fastened by clamps, and the colour of the clamp lips is matched to the design of the ceramic panel. Optionally, safety tapes are available for all formats, which are applied to the panel reverse side already in-plant and prevent larger pieces from falling down if a panel is damaged.

Features and benefits:

Lightweight.
Based on SpectraView with a range of nine colour families matched to each other, and several contrasting colours.
A range of different colour looks are available such as cement, stone or metal.
Can be used with metal and wooden substructures.
Frostproof.
Resistant to acids and alkalis.
Anti-graffiti.
Protection against heat and cold.
Provides sun and visual protection.
Lightning protection.
Noise protection.
Hytect self-washing effect.

General information

Color	Black Blue Brown Grey Green Yellow White Beige Orange Pink Purple Red Cream Show more
Finish	Matt Glazed Cement Gloss Metallic
Material	Ceramic
Shape	Square Rectangle
Length	592 mm 892 mm 1192 mm Bespoke
Width	592 mm 892 mm Bespoke
Height	8 mm Manufacturer guidance Thickness.

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Secondary support structure	Vertical bearing profile with stainless steel clamps K8. Guidance for specification option: The mounting of the substructure must be carried out according to project-specific, static calculations. The usability certification Z-10.3-844 serves as basis. The profiles have to be mounted perpendicularly and in a flush way. The length of the profiles must be divisible by the height of the panel format and should not exceed the height of a story of the building (approximately 3 m). A profile butt joint of the vertical profiles behind a panel is not allowed. The stainless steel clamps K8 (Art. no. 545, 546, 547, 548, 549) must be fastened with stainless steel rivets (Art. no. 675-01). For the nonrigid installation of the panels, foamed pieces or, PUR or MS polymer bonding materials have to be used. Vertical bearing profile with undercut anchors. Guidance for specification option: Wall connections (bracket or strut) can be used to achieve thermal and static requirements. Used to achieve the required energy savings. Lightweight panels. Can be mounted on metal and wooden substructures. Invisible fastening.
Cladding panels	-
Material	Ceramic panels.
System accessories	Not required. Twin-clamp K8, article 545. Edge-clamp K8, article 546. Edge-clamp K8, left, article 547. Edge-clamp K8, right, article 548. Single-clamp K8, article 549. Foamed piece, article 347-01. Joint tape, black, article 506. Stainless steel blind rivet, article 675-01.

Standards	To DIN EN 14411.
Third-party certification	Deutsches Institut für Bautechnik (DIBt). BBA.
Fire performance	Class A1 (non-combustible).
TensileStrength	≥30 N/mm².
Water absorption	E ≤3%.
Colour	Cream 1 - 6201. Cream 2 - 6202. Cream 3 - 6203. Cream 4 - 6204. Cream 5 - 6205. Yellow 1 - 6211. Yellow 2 - 6212. Yellow 3 - 6213. Yellow 4 - 6214. Yellow 5 - 6215. Apricot 1 - 6221. Apricot 2 - 6222. Apricot 3 - 6223. Apricot 4 - 6224. Apricot 5 - 6225. Salmon-red 1 - 6231. Salmon-red 2 - 6232. Salmon-red 3 - 6233. Salmon-red 4 - 6234. Salmon-red 5 - 6235. Pink 1 - 6241. Pink 2 - 6242. Pink 3 - 6243. Pink 4 - 6244. Pink 5 - 6245. Neutral-grey 1 - 6251. Neutral-grey 2 - 6252. Neutral-grey 3 - 6253. Neutral-grey 4 - 6254. Neutral-grey 5 - 6254. Grey 1 - 6261. Grey 2 - 6262. Grey 3 - 6263. Grey 4 - 6264. Grey 5 - 6265. Blue 1 - 6271. Blue 2 - 6272. Blue 3 - 6273. Blue 4 - 6274. Blue 5 - 6275. Green 1 - 6281. Green 2 - 6282. Green 3 - 6283. Green 4 - 6284. Green 5 - 6285. Glacier-white, glossy - 4230. Chalk-white, matt - 4234. Black, glossy - 4530. Black, matt - 4534. Show more
Finishes	Glazed. Silky-matt.
Weight	18 kg/m². Guidance for specification option: Individual panel weight.
Size and profile	592 x 592 mm. Guidance for specification option: Article K100HK. 60 x 60 cm. 892 x 592 mm. Guidance for specification option: Article K104HK. 90 x 60 cm. 892 x 892 mm. Guidance for specification option: Article K416HK. 90 x 90 cm. 1192 x 592 mm. Guidance for specification option: Article K418HK. 120 x 60 cm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance Length x width. Other sizes available upon request.
Fire safety	To DIN 18516-1.
Frost resistance	To DIN ISO 10545-12.

Sustainability data

Country of product manufacture	Germany Guidance for specification option: Bavaria.
Material	Ceramic
Recyclability	100%
