Description

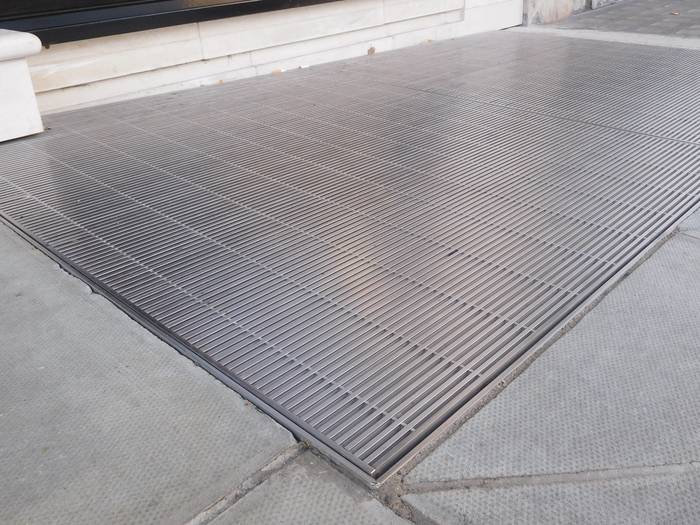

The Kent Double Wedge Heelmesh Grating is commonly be manufactured for use in Channels Gullies or ventilation grilles. Unlike most other options available our double wedge range can be manufactured to take loadings of up to FACTA D (D400).

Kent Double Wedge grating is frequently supplied with angle frame, channel, and Support beams when being used for ventilation grilles (More detail can be found on P3 &4).

As Standard the double wedge grating is manufactured to be heelsafe, The 5mm bar and 5mm gap prevents High heels getting trapped or entering the free area.

Features and benefits:

  • Heelsafe.
  • Various loadings available.
  • 5 mm bar and 5 mm gap.
  • Can be used for channels, gullies or Ventilation Grilles.
  • Grade 316 Stainless steel as Standard.
  • Satin Finish 320 Grit Polish.

General information
Features

Heelsafe, multiple loadings available, multiple applications

Finish

Satin finish 320 grit polish

Material

Stainless steel

Shape

Rectangle

Size

3000 x 100 mm

Uniclass 2015 Expanded metal mesh (Pr_25_57_56_27)
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
