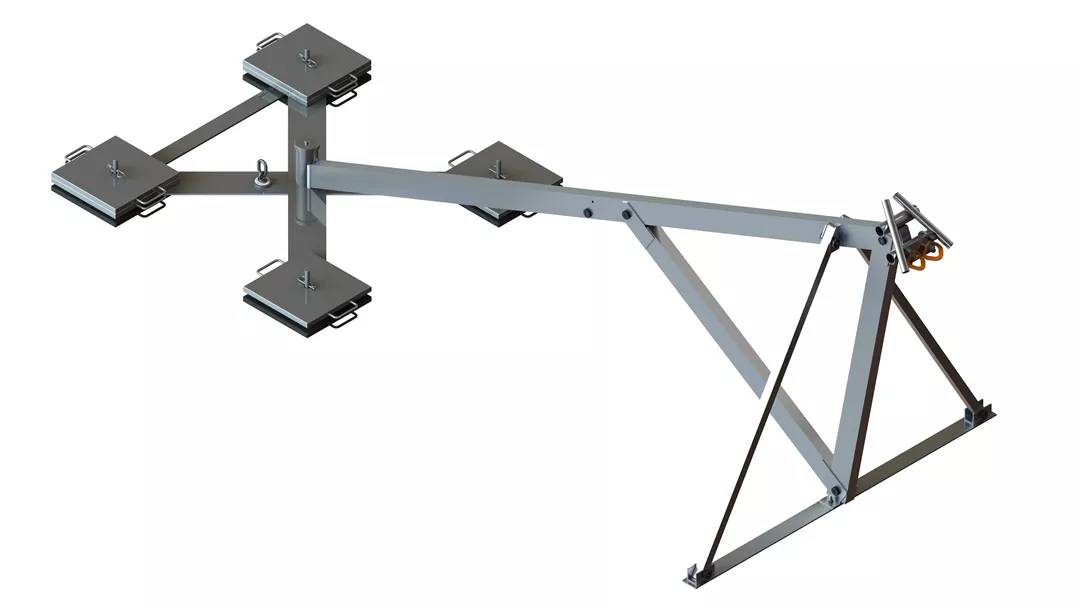

Kee Attach® - Mobile Rope Access System

Verified by manufacturer 1 day ago

Kee Safety Ltd

A single-user product solution designed to abseil building facades. It incorporates a paired anchor device for use in rope access operations.

Jump to:
01384 632188 Website

Application

Single user product solution designed for fall restraint or fall arrest applications.

Description

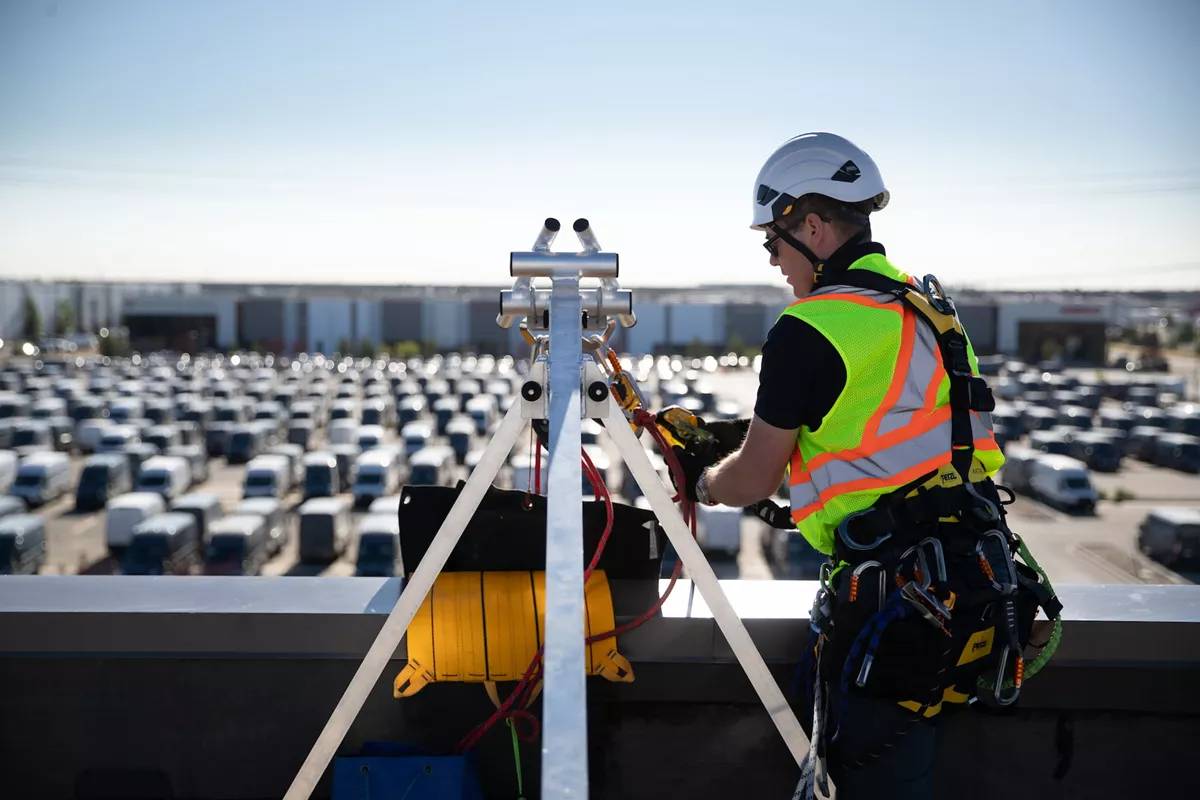

A single-user product solution designed to abseil building facades.

It incorporates a paired anchor device for use in rope access operations following the Industrial Rope Access Trade Association (IRATA) International Code of Practice and/ or BS 7985 - Code of Practice for the use of rope access methods for industrial purposes.

Features and benefits:

  • Counterweight system: single user product solution designed for fall restraint or fall arrest applications.
  • Mobile: suitable for use in locations where there are no suitable permanent anchors for the attachment of Personal Fall Protection Equipment (PFPE) utilized for the purpose of performing rope access operations.
  • Tested and inspected: tested to the requirements of BS EN 795: 2012 Type B, and has CE approval certification issued by Apave Exploitation France SAS.
  • Non-penetrating: When correctly assembled, provides an 'internally force-balanced' system that does not require attaching to the roof or other structures.
  • Heavy-duty: The Kee Attach system is intended for one user plus tools to a maximum 136 kg SWL.
  • Lightweight: designed to be lightweight and breaks down into several components for easy transportation and installation on rooftop.
  • Adaptable: engineered for different roof types.
  • Modular and versatile: can be used in conjunction with other products to provide a complete fall protection plan.
  • Easy to install: simply installed with hand tools so there’s no need to buy additional equipment.
  • Safety first: meets all of the requirements of the relevant standards and is safe to use.

Compliance:

  • EN 795:2012 Type B - Personal Fall Protection Equipment. Anchor Devices.
  • BS 8610:2017 - Personal Fall Protection Equipment. Anchor Systems.
  • OSHA 29 CFR 1926.502 (d)(15) Fall Protection Criteria and Practices.
  • ANSI/ASSE Z359.18-2017 Safety Requirements for Anchorage Connectors for Active Fall Protection Systems.
  • CSA Z259.15-17 Anchorage Connectors.

General information

Color

Silver

Finish

Natural

Galvanized

Zinc plated

Electro polished

Material

Steel

Stainless steel

Rubber

Alloy

Shape

Other

Length

4155 mm

Guidance for specification option:

Overall.

Width

1666 mm

Guidance for specification option:

Maximum.

Height

1593 mm

Guidance for specification option:

Overall.

Uniclass

Pr_20_29_03_86 Structural anchorsPrimary

CAWS

N25/20 Single point anchorage devices

N25/220 Single point anchorage devices

Specification data - Structural anchors

Classification data

Anchor type

Manufacturer's standard.

Guidance for specification option:

Exclusive use for one person.

Maximum rated load: 100 kg.

Dimensions

Overall/ maximum: 4155 x 1666 x 1593 mm.

Guidance for specification option:

Length x width x height.

Material

Steel/ stainless steel/ rubber/ alloy.

Guidance for specification option:

Consult manufacturer's literature for details.

Finish

Natural/ galvanized/ zinc-plated/ electropolished.

Guidance for specification option:

Consult manufacturer's literature for details.

Weight

Overall: 281 kg.

Guidance for specification option:

Consult manufacturer's literature for details by component.

Accessories

System tag.

Guidance for specification option:

Provides details of the system and inspection status.

Available in a range of languages, consult manufacturer for details.

Sustainability data

Material

Steel
Stainless steel
Rubber
Alloy
