K Systems Aricco System For Timber Frame Buildings
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
Drained and vented cavity façade system for timber frame buildings, with options for VBriQ acrylic brick-slips, Dash render or Silicone TC thincoat render finishes.
Application
For timber frame construction.
Description
Aricco is a drained and vented cavity facade system for timber framed builds, that is suitable for use in low rise construction.

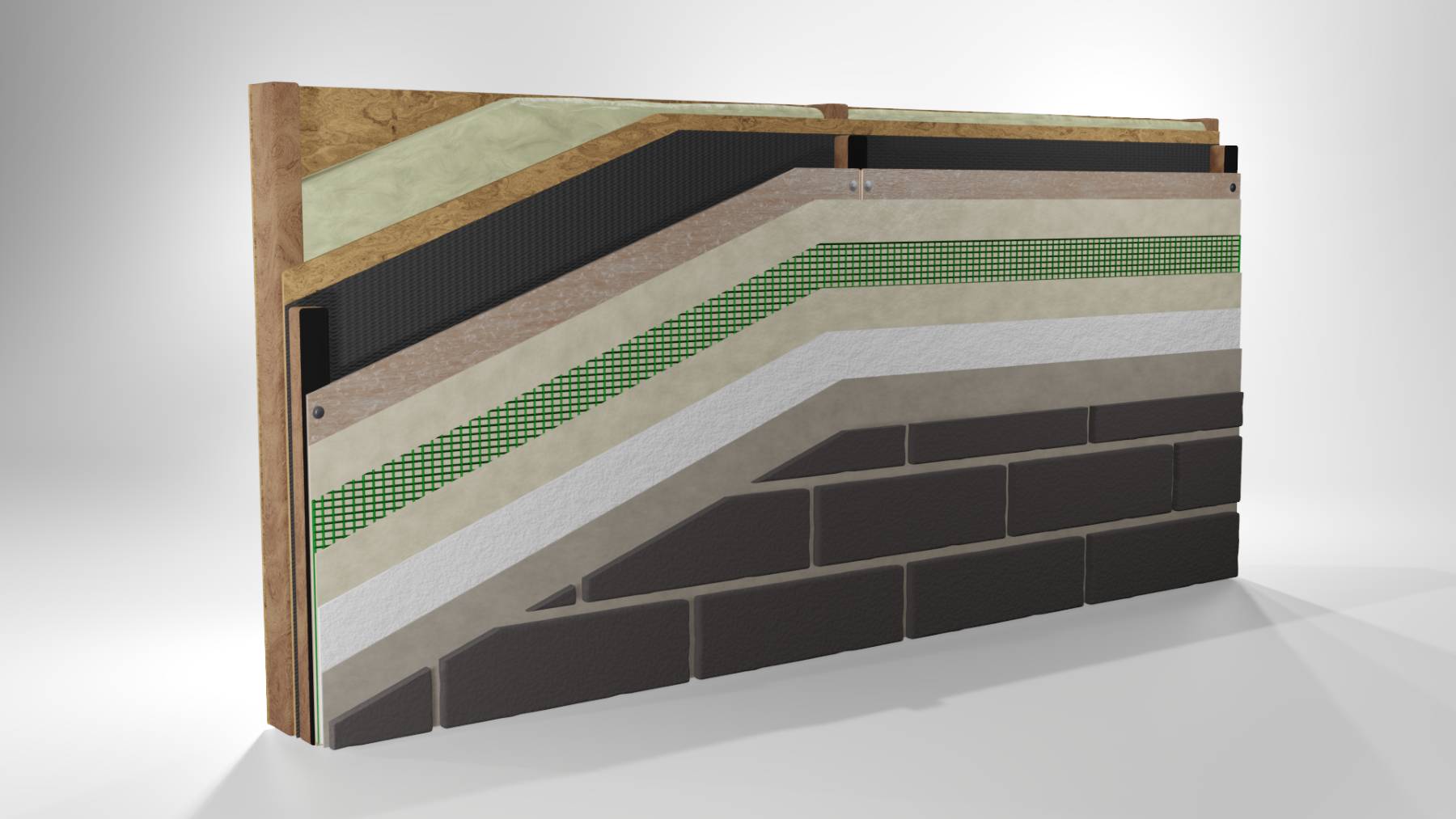

The Aricco facade system is compatible with offsite/modular construction techniques, including SIPS panels and comprises a timber or metal rail to create the cavity, onto which a sheathing board and the desired finish are applied.
A range of aesthetic finishes are available, including lightweight VBriQ acrylic brick-slips, dashing render and Silicone thin coat render options.
VBriQ acrylic brick-slips offer a lightweight and highly robust brick finish; while the dashing render offers high levels of durability and provides a robust and low maintenance finish; the Silicone thin coat provides a highly functional water repellent surface that allows water vapour to pass freely through the render, along with a fresh and modern appearance.
Features and benefits:
- Drained and vented cavity façade system for timber frame construction, with acrylic brick-slip, dashing render and silicone thin coat render finishes
- BBA Certificate: 20/5749 PS1.
General information
Color | Manufacturer guidanceK Systems standard colour range (other colours are available on request, according to NCS colour range) |
Finish | Dry dash Textured Other |
Material | Render Brick |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceProduct and system warranties available |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system |
Specification data - External wall insulation systems
Support rails and brackets | |
Boards | |
Material | K Systems approved sheathing board. |
Insulation | |
Additional mechanical fixings | Ejot JT3 or SH3. |
Render carrier or reinforcement | |
Material | Alkali resistant reinforcement mesh, embedded into basecoat. |
Render | |
Material | K Systems MRS7 Dash receiver.K Systems VBriQ acrylic brick-slips (with VBriQ adhesive).Silkolitt+ silicone thin coat render. |
Decorative finish | Dry Dash Aggregate. |
Colour | Manufacturer guidanceK Systems standard 20 colour range (other colours are available on request, according to NCS colour range). Consult manufacturer and insert requirements. |
System accessories | K Pro clear hydrophobic coating.K Systems expansion beads and trims.Movement joint.Sealant tape.Sealant. |
Fire performance | A2-s1,d0. |
Basecoat | K Systems ABC basecoat. K Systems Scrim Adhesive basecoat. |
Primer | K Systems Silicone Primer. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Render Brick |
Expected Life | 30 year |
Third party certifications
Literature
K Systems Brochure
Case studies
Hurlford Avenue, Glasgow
Curries Yard, Locharbriggs
