Josta Wall Rack

90 degree 425 mm crs

Cycle-Works Ltd Variant:

An individual wall-mounted bicycle rack that can be installed directly to the wall or on metal frameworks.

Jump to:
+44 (0)23 9281 5555 www.cycle-works.com

Application

For mounting on the wall.

Description

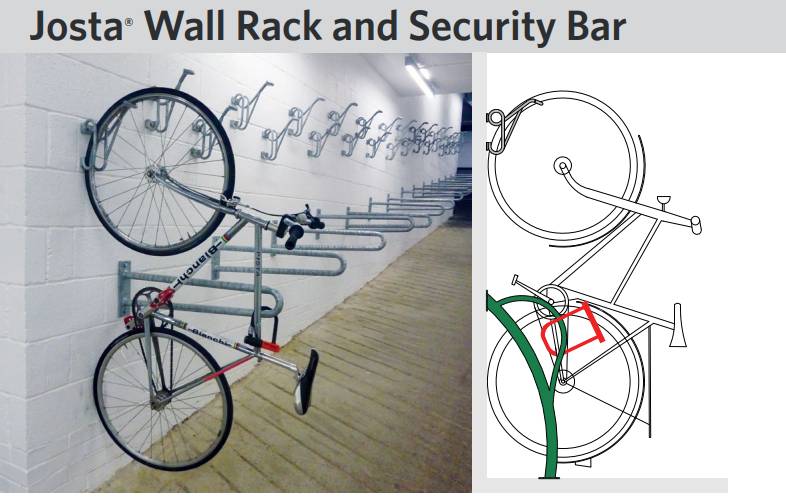

The Josta Wall Rack rack holds the bicycle securely in place, while the optional security bar provides an extra locking point for the bike frame. The rack can be installed where space is at a premium or where it is impossible to mount a rack to the ground. The bicycle can be stored vertically or horizontally, depending on the height the rack is installed at.


The Josta Wall Rack can also be mounted onto frameworks for sites where it is impossible to fix the rack to the wall. The frameworks are usually used for sites where the walls are too weak to bear the full weight of the bike, or where the wall cannot be drilled into due to leasing arrangements or for cosmetic reasons. The racks and bars are fixed to the framework, then the framework is bolted to the ground.


Features and benefits:

  • Small footprint.
  • Can store the bicycle vertically or horizontally.
  • Neat and organised individual parking.
  • 90, 60, 45 and 30 degree angles available.
  • The bike is stable while it is being locked.
  • Security bar provides locking points for the bike frame.

General information

Color

Any RAL colour available.

Other

Finish

As per manufacturer and includes:

  • Galvanized.
  • Powder coated.

Powder coated

Material

Steel

WarrantyDescription

Two year

Size

300 x 300 mm

Uniclass

Pr_40_30_21_12 Carbon steel cycle standsPrimary

CAWS

Q50/32 Cycle stands

Q50/210 Cycle stands

Specification data - Carbon steel cycle stands Enhanced data

Stand type

Cycle.

Base

Anchored base, mounted on wall.

Anchored base, mounted on framework.

Finish as delivered

Galvanized.

Powder coated.

Colours

Can be powder coated in most standard RAL colours; insert requirements.

-

Mounting position

90°.

Centres

425 mm (minimum).

A standard bike will project approximately 1100 mm from the wall.

Accessories

None.

Security bar type 1: Floor.

800 x 300 mm (height x width).

Security bar type 2: Wall and floor.

900 x 350 mm (height x projection).

Dimensions

(Height x projection)

300 x 300 mm.
