JHMI: Joist Hanger for Masonry: I-Joists

Verified by manufacturer 1 month ago

Simpson Strong-Tie Third party certifications:
  • DoP

    DoP

    Certificate type

A range of joist hangers to support timber joists, beams and trussed rafters from masonry walls.

Jump to:
+44 (0)1827 255600 Website

Application

Can be used to connect solid-sawn joists, trusses and engineered joists to masonry walls or steel beams.

Description

The JHM and JHMI range of joist hangers can be used to connect solid-sawn joists, trusses and engineered joists to masonry walls or steel beams.


Features and benefits:

  • Built-in inspection slot at the base of the hanger to aid inspection from the ground.
  • Top flange provides the widest area in contact with masonry support allowing superior performance.
  • Embossments on top flange, and holes, allow improved mortar keying.
  • Flanges on hangers are much higher than the traditional style, providing greatly enhanced resistance to joist rotation.

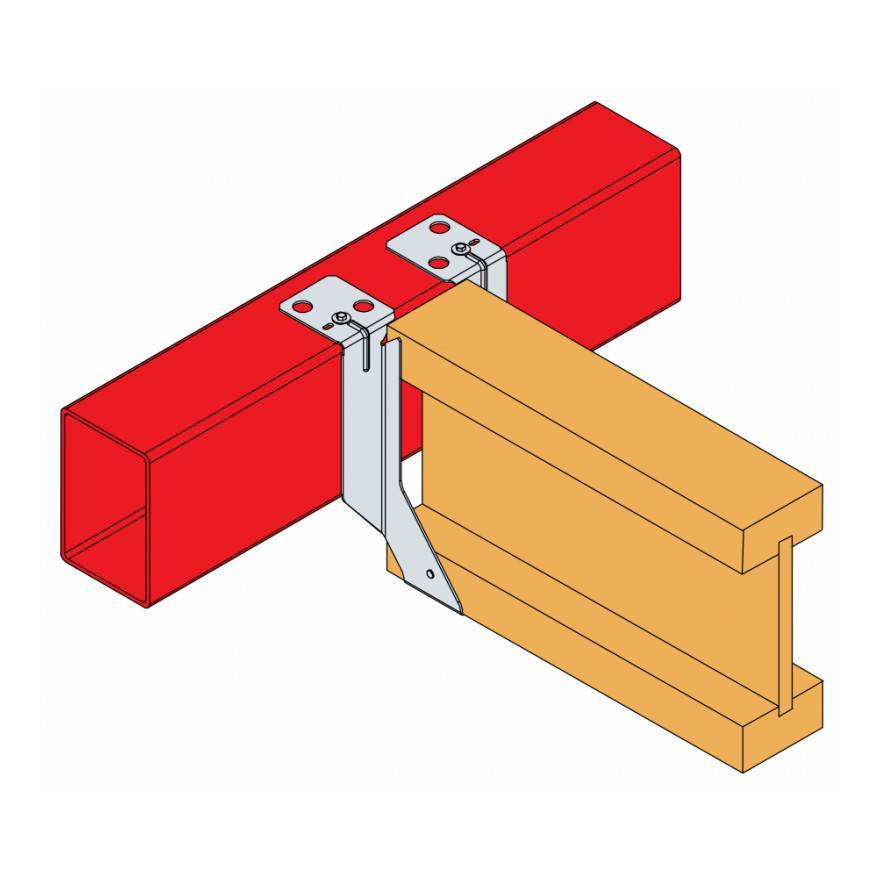

  • Can be installed onto ‘I’ section or hollow section steel beams.
  • CE marked.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Width

40 mm

47 mm

50 mm

56 mm

61 mm

Show more

Height

145 mm

195 mm

200 mm

220 mm

225 mm

Show more

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Standard

To BS EN 845-1.

Format

Face fixing.

Material

Carbon steel.

Finish

Galvanized.

Sizes

-

Manufacturer guidance

Over 170 sizes available; consult manufacturer's literature and insert requirements.

Third party certifications

DoP

DoP

Declaration of Performance DoP-h06/0002

Literature

JHMI: Joist Hanger for Masonry: I-Joists Technical Data Sheet

JHMI: Joist Hanger for Masonry: I-Joists Technical Data Sheet

JHM and JHMI Masonry Hanger Mechanically Fixed to Steel Beams

JHM and JHMI Masonry Hanger Mechanically Fixed to Steel Beams
