Jackodur - Thermal Insulation

Name: Jackodur - Thermal Insulation
Brand: BEWI Construction (JACKOBOARD & ICF THERMOUR)
SKU: jUjdabcTVTjJEUtDdqGHuw

Verified by manufacturer 3 months ago

EVO 300 Standard SF

BEWI Construction (JACKOBOARD & ICF THERMOUR)

Third party certifications:

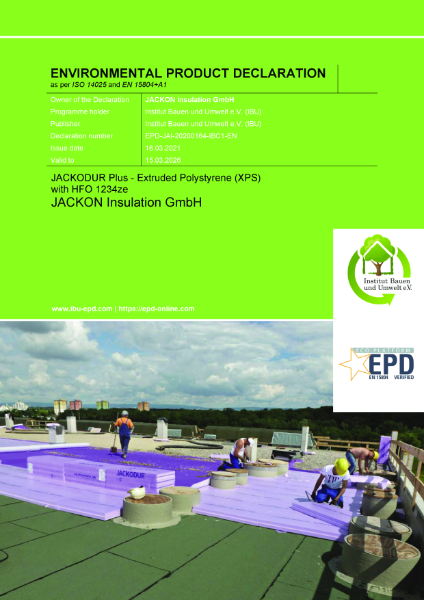

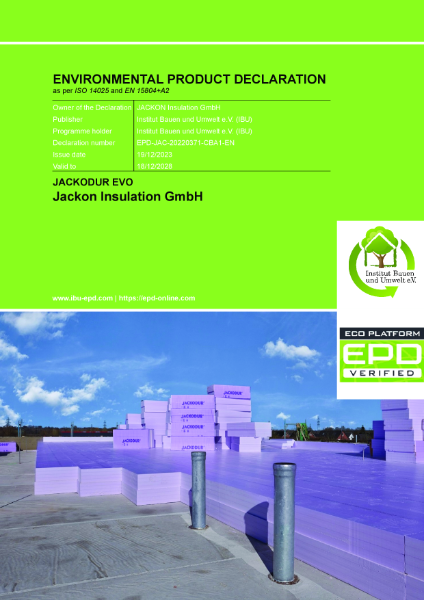

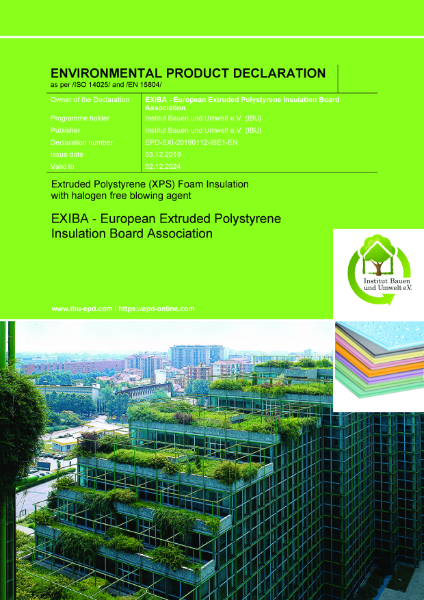

EPD
Certificate type

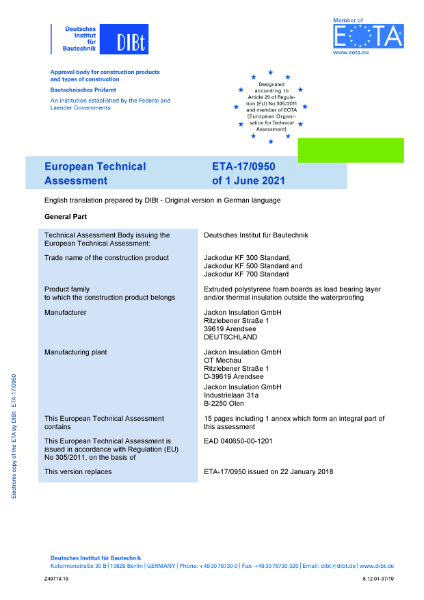

European Technical Approval (ETA)
Certificate type

Thermal insulation for structural use.

Jump to:

+44 (0)120 4221089 Website

Application

JACKODUR® EVO 300 and Standard SF, JACKODUR® Plus 300 Standard SF, JACKODUR® KF 300 Standard SF: For insulating perimeters, flat roofs, beneath screed, etc.
JACKODUR® Plus 300 Gefiniert GL and JACKODUR® KF 300 Gefiniert GL: For use as render base, plinth insulation, concealed formwork for concrete application and thermal bridge insulation.
JACKODUR® KF 300 Standard GL: Extrusion-compressed surface for floors, screed, multi-layer core insulation, etc.
JACKODUR® EVO 300 Standard NF: For pitched roofs (on rafters).
JACKODUR® KF 500 Standard SF: For heavy-duty applications when insulating perimeters, flat roofs, parking decks, beneath industrial floors, etc.
JACKODUR® KF 700 Standard SF: For extremely heavy duty applications when insulating perimeters, flat roofs, parking decks, beneath industrial floors, etc.

Description

Jackodur® is a high-quality thermal insulation made of extruded polystyrene (XPS) according to EN 13164. It is load-bearing, dimensionally stable, insensitive to moisture and rot-proof. Jackodur® thermal insulation is available in various thicknesses and edge finishes with a smooth or textured surface.

Features and benefits:

100% recyclable.
Water repellent.
Thermal insulation properties from λD= 0.027 W/(m∙K).
Various compressive strengths ≥ 300, 500, 700 kPa.
Suitable for use in groundwater.
Resistant to frost/ thaw changes.
Insulation thicknesses from 20–400 mm.
Available in shiplap edge (SF), square edge (GL) and T&G edge (NF)
Available in smooth (Standard) and textured (Gefiniert) surface finishes.
Complete with national technical approval.

General information

Color	Purple
Finish	Smooth Textured
Material	Extruded polystyrene (XPS)
Shape	Rectangle
Length	1265 mm 1250 mm 2500 mm
Width	615 mm 600 mm
Height	20 mm 30 mm 40 mm 50 mm 60 mm 80 mm 100 mm 120 mm 140 mm 160 mm 180 mm 200 mm 220 mm 240 mm 260 mm 280 mm 300 mm 320 mm 340 mm 360 mm 380 mm 400 mm Show more

Uniclass	Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary
CAWS	Q37/110 Intensive green roof Q37/310 Inverted roof insulation E20/30 Underslab insulation J41/410 Expanded polystyrene (EPS) insulation J31/26 Thermal insulation J21/25 Warm deck roof insulation E20/200 Proprietary underslab insulation M21/20 External wall insulation system . . . . . . J41/26 Thermal insulation J42/27 Thermal insulation M13/40 Floating construction M10/40 Floating construction J21/410 Expanded polystyrene insulation M21/210 External wall insulation system J42/410 Expanded polystyrene (EPS) insulation M13/260 Floating construction M10/290 Floating construction J31/331 Expanded polystyrene (EPS) insulation

Specification data - Extruded polystyrene (XPS) boards

Standard	To EN 13164.
Fire performance	To EN 13501-1, Euroclass E.
Compressive strength (minimum) at 10% compression	300 kPa.
Thermal conductivity (maximum)	0.032 W/(m·K).
Water permeability	Total immersion: 0.7%; Diffusion: Class WD(V)1-3.
Water vapour permeability	250-80 μ.
Thickness	40 mm. 50 mm. 60 mm. 80 mm. 100 mm. 120 mm. 140 mm. 160 mm. 180 mm. 200 mm. 220 mm. 240 mm. 260 mm. 280 mm. 300 mm. 320 mm. 340 mm. 360 mm. 380 mm. 400 mm.
Face size (length x width)	1265 x 615 mm.
Edges	Shiplap.
