Verified by manufacturer 3 months ago
BRE Certificate
Certificate type
Internal Wall Insulation
Suitable for various buildings, including housing associations, local authorities, education, healthcare, and public buildings.

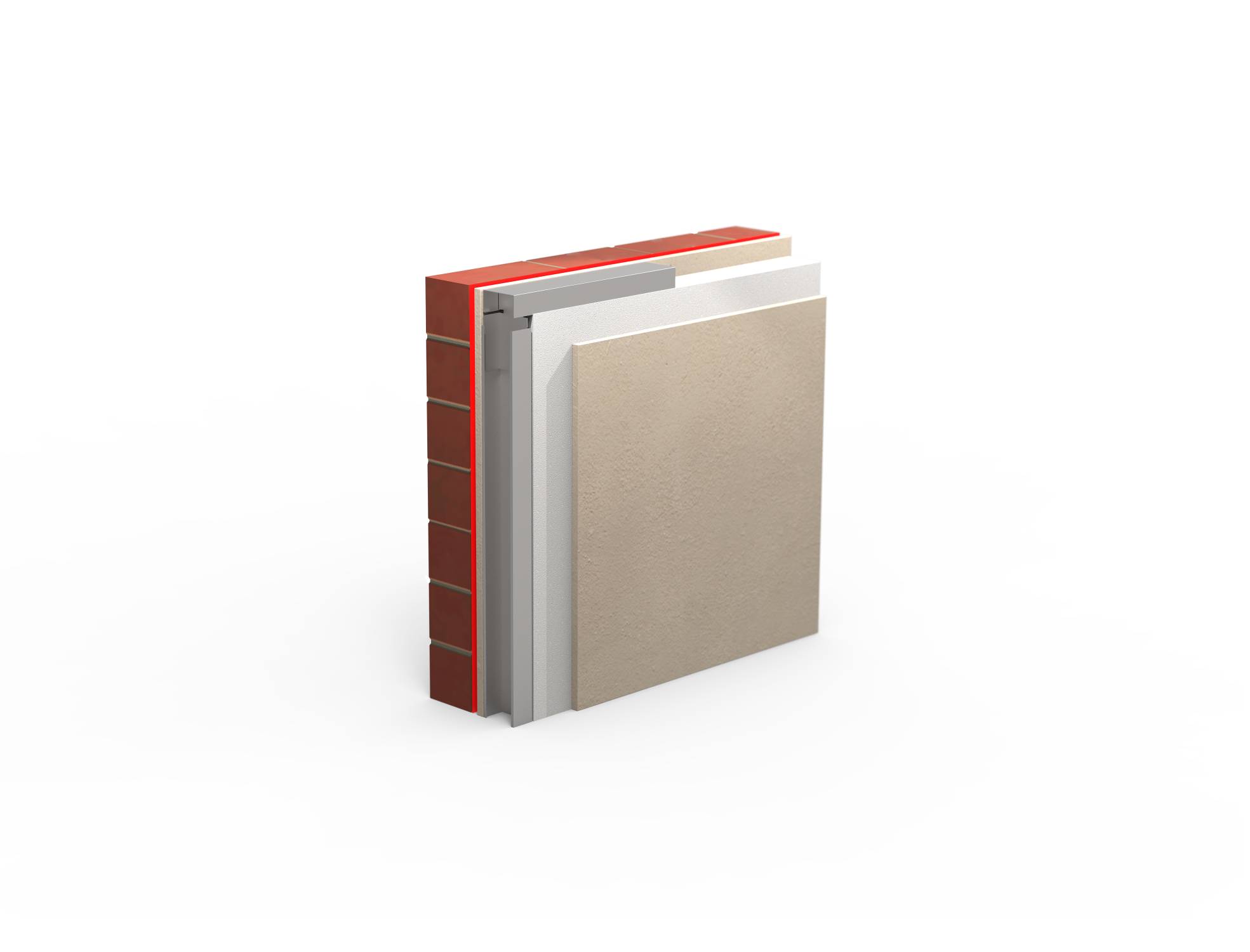

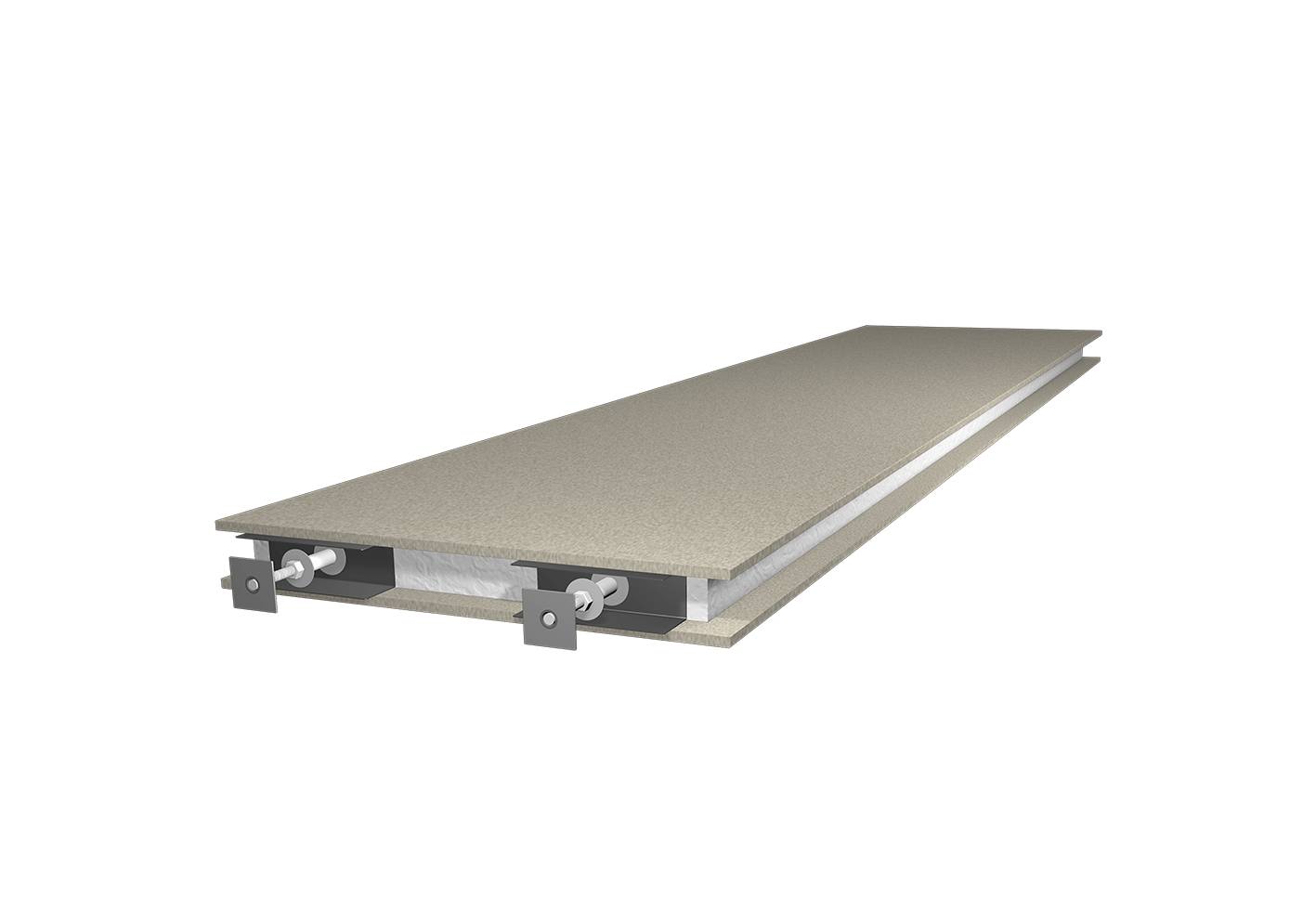

Discover our Premium System: Engineered with the same design principal as our safeguard system, our premium system consists of an EPS insulation core bonded between gypsum fibre boards. Secured in a light gauge steel frame with vertical and horizontal compression, it’s mechanically fixed to floors, ceilings, and supporting walls aligned with a breather membrane to ensure moisture control and structural integrity.
Features and benefits:
Thermally efficient
Insulated panels minimise heat loss and reduce energy consumption.
Fire Performance
Safeguard system is classified as European Classification B-s1-d0.
High airtightness performance
Decrease air changes per hour to as low as 3 ACH.
Moisture control
Mitigates risk of surface and interstitial condensation.
Non-invasive
Modular systems arrive on site cut to size, minimising disruption to tenants.
Prefinished
Removing the need for wet trades.
Robust & durable
Tested with multiple fixings and loads, therefore no need for secondary supports.
MMC
Quality of offsite manufacture, combined with approved installation teams, removes the risk of build defects.
Certified
The only fully approved end-end Internal Wall Insulation Systems available.
System Guarantee
IWI systems are provided with a 25-year guarantee.
Color | Beige |
Finish | Smooth |
Material | Gypsum Expanded polystyrene (EPS) Metal |
Shape | Rectangle |
Width | 144 mm 195 mm 294 mm 398 mm 597 mm |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | K10/30 Metal stud K10/155 Wall lining system (metal studs) |
System performance | Manufacturer guidanceReaction to fire: To BS EN 13501-1, Class B-s1, D0. Thermal resistance: 0.36 W/m²K. Duty rating: Moderate. Panel height: Maximum 3000 mm. Consult manufacturer for details and test reports. |
Preparation | Manufacturer guidanceNot required. |
Support | 50 mm C Stud and 52 mm U Channel light gauge steel framing system. |
Insulation | 50 mm Expanded polystyrene (EPS) and stone wool.Guidance for specification option: The panel has an EPS core. Stone wool is friction fitted into the framing and all exposed voids for thermal continuity. |
Insulation fixing | Panel: Bonded; Frame: Friction fitted.Guidance for specification option: All framing is packed with stone wool to ensure continuity of thermal performance. |
Vapour control layer | Self adhesive breather membrane. |
Linings | 10 mm Gypsum fibreboard.Guidance for specification option: Vapour open, capillary active and hygroscopic wood fibre insulation board. |
Lining fixings | 40 mm Screws. |
Joint treatment | Easifill 20/ 60.Guidance for specification option: The joints between the panels are 3 mm with a 1 mm chamfer on each panel. |
Execution | Manufacturer guidanceRefer to Panelised IWI Systems Installation Manual. |
Panel depth | 70 mm. |
Reaction to fire | To BS EN 13501-1, Class B-s1, D0. |
Thermal resistance | 0.38 W/m²K. |
Duty | Moderate. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Gypsum Expanded polystyrene (EPS) Metal |
Recyclability | The system is demountable, recyclable, and subject to application, reusable. |
