Description

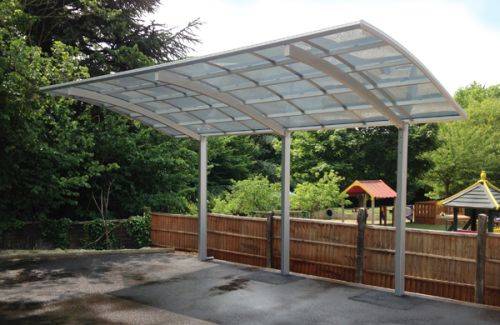

Stylish and modern canopy, constructed from an aluminium structure with a solid, arched polycarbonate roof.

Features and benefits:

  • Available with extra high posts if required.
  • Can be bolted or cast in situ to concrete foundations.
  • Five-year guarantee.
  • Cuts out 100% of UV rays and has a strong impact resistance - 250 times higher than glass.
  • Compliant with BS 6399-2 and BS 6399-3.

General information
Material

Roof: Polycarbonate, blue smoke colour

Posts: Aluminium, silver

Roofing spar: Aluminium

Integral guttering: Unplasticized polyvinyl chloride (U-PVC)

Uniclass 2015
Open sided shelters (Pr_20_65_78_58)Primary
Specification data - Open sided shelters
Product Reference

Italia Monza Canopy

Type

Mini, extended

See 'Options' below and insert requirements.

Mini, multiple

See 'Options' below and insert requirements.

Mini, single

See 'Options' below and insert requirements.

Standard, extended

See 'Options' below and insert requirements.

Standard, multiple

See 'Options' below and insert requirements.

Standard, single

See 'Options' below and insert requirements.

Fixing

Bolted

Cast in

Connection joint

M connection

Y connection

Standard product features

Material:

  • Roof: Polycarbonate, blue smoke colour.
  • Posts: Aluminium, silver.
  • Roofing spar: Aluminium.
  • Integral guttering: Unplasticized polyvinyl chloride (U-PVC).

Product Options

Type:

- Mini, extended:

Please note this includes the single unit length in addition to the length stated below. Available in one size only.

  • 2456 x 2010 x 2425 mm (l x w x h).

- Mini, multiple:

Please note this includes the single unit length in addition to the length stated below, multiplied by the amount of units required. Consult manufacturer for details.

  • 4872 x 2010 x 2425 mm (l x w x h).
  • 5476 x 2010 x 2425 mm (l x w x h).

- Mini, single:

  • 2538 x 2010 x 2425 mm (l x w x h).
  • 4954 x 2010 x 2425 mm (l x w x h).
  • 5558 x 2010 x 2425 mm (l x w x h).

- Standard, extended:

Please note this includes the single unit length in addition to the length stated below.

  • 2456 x 2405 x 2462 mm (l x w x h).
  • 2456 x 2704 x 2480 mm (l x w x h).
  • 2456 x 3012 x 2575 mm (l x w x h).

- Standard, multiple:

Please note this includes the single unit length in addition to the length stated below, multiplied by the amount of units required. Consult manufacturer for details.

  • 4872 x 2405 x 2462 mm (l x w x h).
  • 4872 x 2704 x 2480 mm (l x w x h).
  • 4872 x 3012 x 2575 mm (l x w x h).
  • 5476 x 2405 x 2462 mm (l x w x h).
  • 5476 x 2704 x 2480 mm (l x w x h).
  • 5476 x 3012 x 2575 mm (l x w x h).

- Standard, single:

  • 4954 x 2405 x 2462 mm (l x w x h).
  • 4954 x 2704 x 2480 mm (l x w x h).
  • 4954 x 3012 x 2575 mm (l x w x h).
  • 5558 x 2405 x 2462 mm (l x w x h).
  • 5558 x 2704 x 2480 mm (l x w x h).
  • 5558 x 3012 x 2575 mm (l x w x h).

Extra high posts can be supplied with an additional 500 mm - consult manufacturer for details.

Connection joint:

Supplied based upon the specified length. Consult manufacturer for further details.
