Italia-80 Fencing - Steel louvre privacy barrier fence
Verified by manufacturer today
Italia-80 Vertical
Italia-80 Vertical

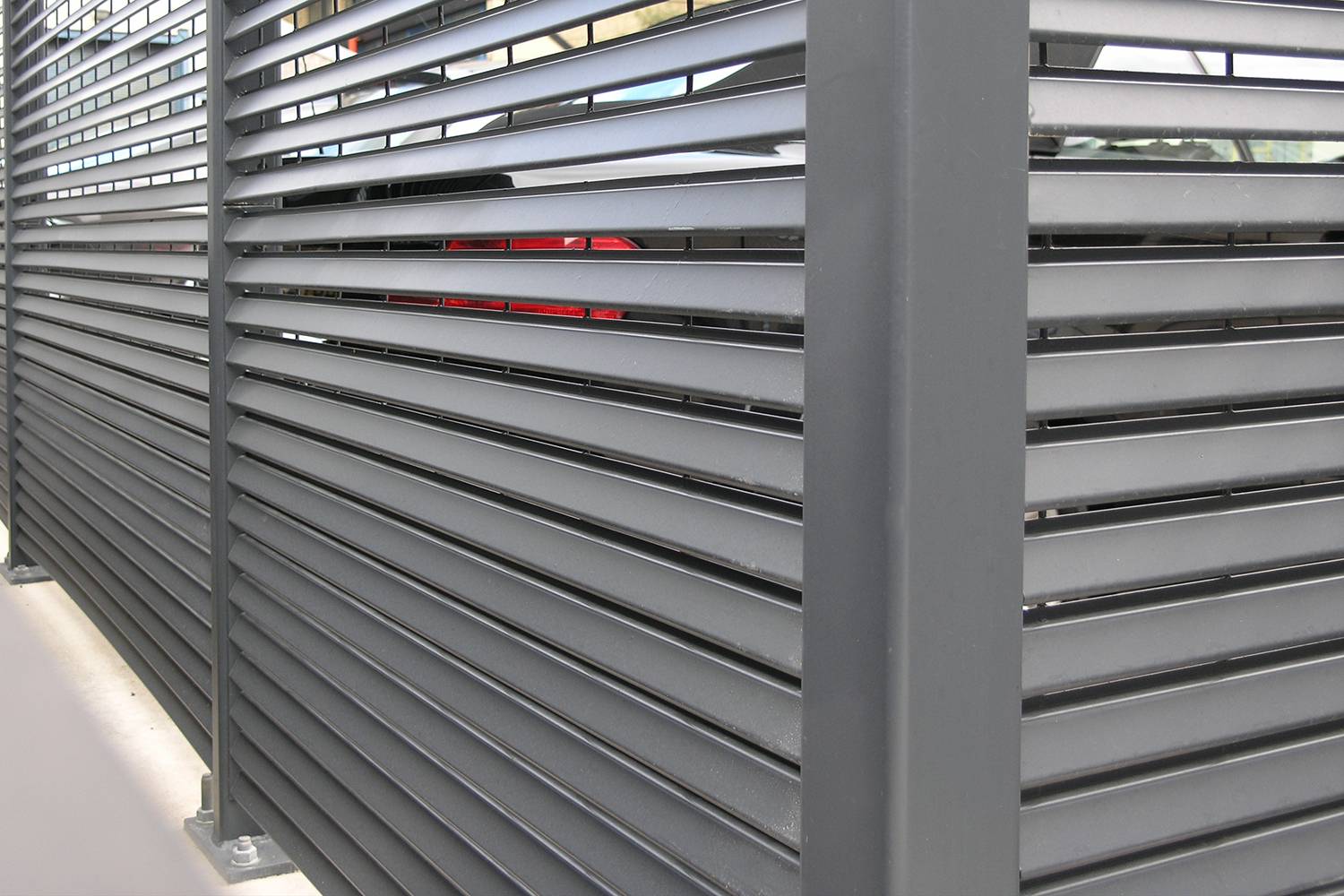

A steel louvred fence with a profiled horizontal bar, providing 80% visual screening and security.
Application
Suitable for external fencing applications.
Description
A rigid steel louvred fencing system which offers a high degree of perimeter protection, combining 80% visual screening and anti-climb properties.
Features and benefits:

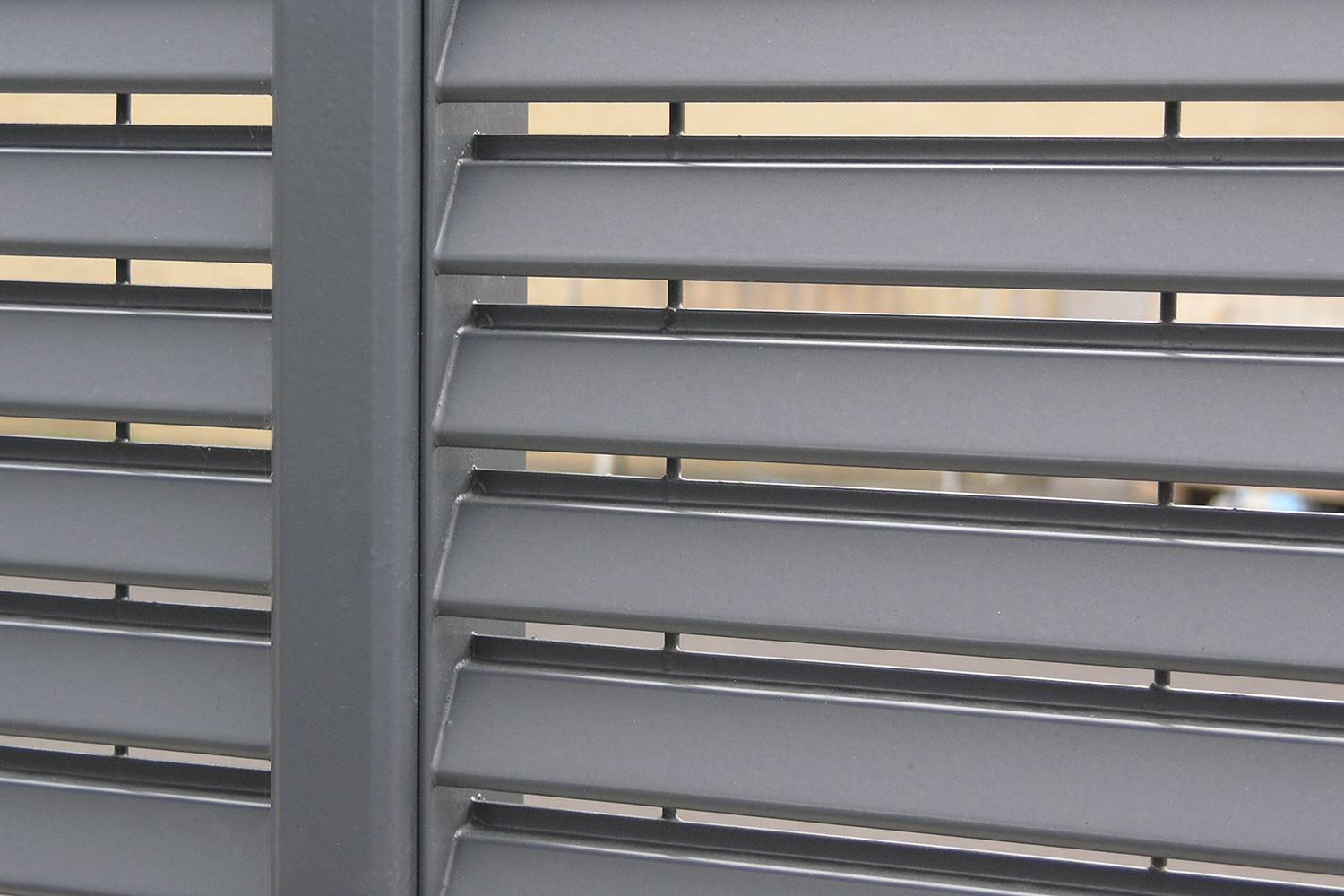

- The louvre profile is formed from triple flanged 50 x 1.5 mm flat bars, providing a linear aesthetic and is secured by electrofusion to 4 mm diameter vertical round bars.
- Single leaf, double leaf, pivot, cantilevered or sliding gates are manufactured to match with Italia-80 infill.
- Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm.
- Louvre fences are supplied in accordance with BS 1722-14.
- Panels and posts can be supplied galvanized only or galvanized and powder coated to any RAL colour.
General information
Color | Grey Black Blue Brown Copper Manufacturer guidanceHot-dip galvanized and polyester powder coated option to any RAL or BS colour. |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated |
Material | Steel |
Shape | Rectangle Guidance for specification option: Fences are generally designed with horizontal louvres. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/126 Open mesh steel panel security fencing |
Product range |
Specification data - Metal mesh panel fencing systems
Standard | To BS 1722-14. |
Posts | Mild steel S235JR. |
Post foundations | Ground fixing (concrete mix).Guidance for specification option:
Base plates for fixing to a concrete foundation.Off-set over top of wall.Anchoring within wall pockets.Manufacturer guidanceAlternative lengths and style of post, dependent on fixing. |
Site applied finishes | Manufacturer guidancePolyester powder coating is a multi-stage process which applies thermo-setting resins, producing a superior finish to painting. |
System accessories | Not required.Guidance for specification option: Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm. Entry/ exit controls. |
Panel Type | Italia-80 Vertical. |
Height | 954 mm. 1184 mm. 1596 mm. 1733 mm. 1963 mm. Manufacturer guidance
|
Width | 1992 mm. Manufacturer guidanceNon-standard widths can be fabricated upon request. |
Straight section | 60 x 40 mm RHS. Guidance for specification option: For panel height 954, 1184, 1596 or 1733 mm. 80 x 40 mm RHS. Guidance for specification option: For panel height 1963, 2423 or 2607 mm. 100 x 50 mm RHS. Guidance for specification option: For panel height 2929 mm. 100 x 55 mm I-section. Guidance for specification option:
|
Corners | 60 x 60 mm SHS. Guidance for specification option: For panel height 954, 1184, 1596 or 1733 mm 80 x 80 mm SHS. Guidance for specification option: For panel height 1963, 2423 or 2607 mm. 100 x 100 mm SHS. Guidance for specification option: For panel height 2929 mm. 60 x 60 mm RSA. Guidance for specification option: For panel height 954, 1184, 1596 or 1733 mm 80 x 80 mm RSA. Guidance for specification option: For panel height 1963, 2423 or 2607 mm. Manufacturer guidance
|
Fixing | Stainless steel bolts, domed heads and snap-off security nuts, grade A2. Guidance for specification option: Panels fixed to posts. |
Other requirements | Not required. Rolled to a radius. |
Framing | Framed on two sides with flat bars. Guidance for specification option: Flat bars projects behind the louvre, to provide a fixing zone for a bolted panel-to-post connection. |
Orientation | Vertical louvres. Guidance for specification option: Provides a variable degree of visual screening, depending on the angle of view. |
Material | Mild steel S235JR. Manufacturer guidancePanel. |
Finishes | Hot-dip galvanized. Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
