Novara-34 Fencing - Anti climb steel grating barrier

Name: Novara-34 Fencing - Anti climb steel grating barrier
Brand: Lang+Fulton
SKU: vneZTk1swHwom8BWhBaSDF

Verified by manufacturer 19 days ago

An anti-climb steel grating fence with narrow 34 mm rectangular apertures, providing enhanced security for schools, colleges and public buildings.

Jump to:

+44 (0)131 441 1255 Website

Application

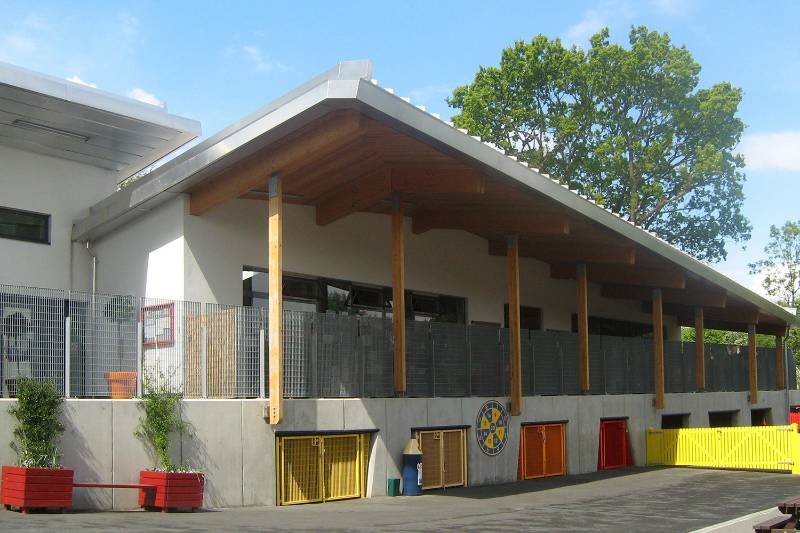

Suitable for schools, colleges and public buildings.

Description

The anti-climb properties and security level of the Novara-34 fence makes it particularly appropriate for schools and colleges. The tight aperture complies with NHBC guidelines and the 1660 mm post centres provide rigidity.

Features and benefits:

Mesh size: 34 x 100 mm, vertical flat bars 25 x 3 mm, horizontal round bars: 4 mm diameter.
Single leaf, double leaf, pivot, cantilevered or sliding gates are made to match with Novara-34 infill panels.
Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm.
Panels and posts can be supplied galvanized only, or galvanized and powder coated to any RAL colour.
Bespoke designs: The integrity of the grating material allows it to be cut, shaped or rolled to create customized fencing which include curved top, waved top or radiused panels.
Incorporates ornamental motifs and laser cut panels.

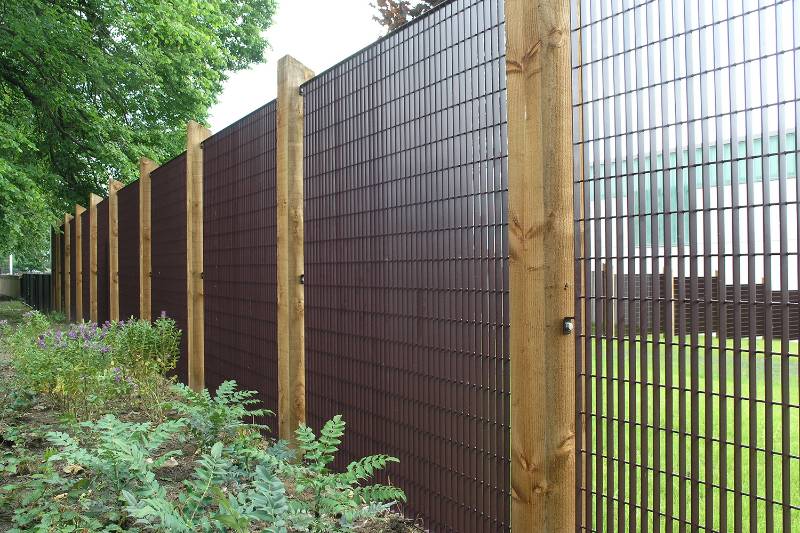

Other alternative designs include decorative rails, handrails and feature posts with optional finials in steel or wood.

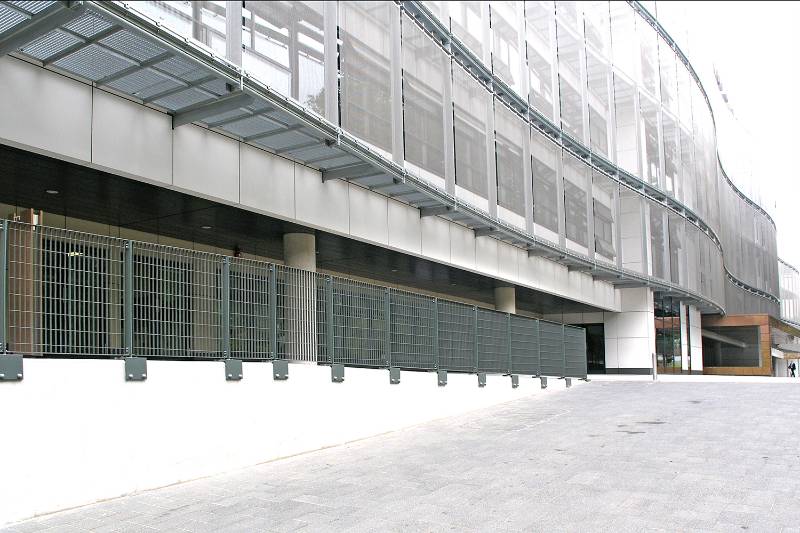

Available in alternative lengths and style of posts for ground fixing, anchoring within wall pockets, base plates for fixing to a concrete foundation and off-set over top of wall.
Non-standard special panel widths can be reduced on site to suit ends of fence runs, and fixed using hidden sleeves fitted to the rails.
Grating fences are supplied in accordance with BS 1722-14.

General information

Color	Grey Beige Black Blue Bronze Brown Copper Gold Green Red Silver White Other Yellow Show more
Finish	Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated Guidance for specification option: Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS 1722–16.
Material	Steel
Shape	Rectangle

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary Ss_25_14_61_62 Post and panel fencing systems
CAWS	Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/126 Open mesh steel panel security fencing Q40/125 Open mesh steel panel general purpose fencing

Product range	Fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS 1722-14.
Posts	Mild steel S235JR.
Post foundations	Ground fixing (concrete mix). Guidance for specification option: Refer to BS 1722 giving consideration to existing ground conditions. Posts to be set in holes 300 to 400 mm square in plan and between 550 and 700 mm in depth, depending on fence height. Holes should be completely filled to a minimum of 50 mm below ground level with concrete mix (minimum strength of C20). Base plates for fixing to a concrete foundation. Off-set over top of wall. Anchoring within wall pockets.
Rails	Not required. Hand rail.
Panels	Vertical flat bars and horizontal round bars, framed top and bottom with flat bars, mild steel S235JR.
Fence topping	Not required. Curved top. Waved top. Decorative rail. Manufacturer guidance Panels framed top and bottom with flat bars.
System accessories	Not required. Entry/ exit controls. Guidance for specification option: Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm. Ornamental motifs. Laser cut panels. Wood finials. Steel finials.

Height	1000 mm. 1200 mm. 1500 mm. 1800 mm. 2000 mm. 2400 mm. 2700 mm. 3000 mm. Show more Manufacturer guidance Panel.
Width	1620 mm. Guidance for specification option: Achieves a nominal width of 1660 mm when framed and fixed with an RHS post. Manufacturer guidance Panel. Non-standard widths available upon request following site survey, or cut on site and fixed to posts with adjustable lug.
Straight section	50 x 30 mm RHS. Guidance for specification option: For panel heights: 1000, 1200 or 1500 mm. 60 x 40 mm RHS. Guidance for specification option: For panel height: 1800 mm. 80 x 40 mm RHS. Guidance for specification option: For panel heights: 2000, 2400 or 2700 mm. 100 x 50 mm RHS. Guidance for specification option: For panel height: 3000 mm. 60 x 7 mm flat bar. Guidance for specification option: For panel heights: 1000, 1200, 1500 or 1800 mm. 80 x 8 mm flat bar. Guidance for specification option: For panel heights: 2000 or 2400 mm. 100 x 55 mm I-post. Guidance for specification option: For panel heights: For panel heights: 2000, 2400, 2700 or 3000 mm. Show more Manufacturer guidance Posts. Height from ground: Panels to sit 100 mm (maximum) off the ground.
Corners	60 x 60 mm RSA. Guidance for specification option: For panel heights: 1000, 1200, 1500 or 1800 mm. 80 x 80 mm RSA. Guidance for specification option: For panel heights: 2000, 2400 or 2700 mm. 100 x 100 mm RSA. Guidance for specification option: For panel height: 3000 mm. 60 x 60 mm SHS. Guidance for specification option: For panel heights: 1000, 1200, 1500 or 1800 mm. 80 x 80 mm SHS. Guidance for specification option: For panel heights: 2000, 2400 or 2700 mm. 100 x 100 mm SHS. Guidance for specification option: For panel height: 3000 mm. Two flat bar posts. Guidance for specification option: For corners that are not 90 degrees. Show more Manufacturer guidance Posts. For alternative lengths and style of post, T-posts can be used to reduce the gap between panel and post for increased security. Changes in level: Fence panels stepped to 150 mm (maximum) on standard length post. Post centres to be reduced for steeper gradients (between 1:20 and 1:7).
Fixing	M10 x 70 mm stainless steel bolts, domed heads and snap-off security nuts, grade A2. Guidance for specification option: Panels fixed to posts.
Other requirements	Not required. Curved top. Decorative rails. Handrails and feature posts with optional finials in steel. Handrails and feature posts with optional finials in wood. Ornamental motifs and laser cut panels. Radiused panels. Waved top. Show more Manufacturer guidance The integrity of the grating material allows it to be cut, shaped or rolled to create customized fencing.
Orientation	Round bars set to inside of enclosed area.
Framing	Framed top and bottom with flat bars. Guidance for specification option: Framing bar is bent over at the ends to form fixing lugs for a bolted panel-to-post connection. Fence heights of 2000 mm and above have an additional intermediate fixing.
Mesh size	Vertical flat bars: 25 x 3 mm, Horizontal round bars: 4 mm diameter.
Aperture	34 x 100 mm.
Finishes	Hot-dip galvanized. Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option: Insert colour requirement. To BS EN ISO 1461 and polyester powder coated to BS EN 1722-16 in any RAL colour.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Steel
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.42 kg CO₂ eq/kg Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	56 %
