Italia-100 Fencing - Steel louvre privacy barrier fence

Name: Italia-100 Fencing - Steel louvre privacy barrier fence
Brand: Lang+Fulton
SKU: mXS5ZuDHi3qvFGHvUzSo3E

Verified by manufacturer 24 days ago

Italia-100 Vertical Fencing

Lang+Fulton

A steel louvred fence with a profiled horizontal bar, providing 100% visual screening and security.

Jump to:

+44 (0)131 441 1255 Website

Application

Suitable for external fencing applications.

Description

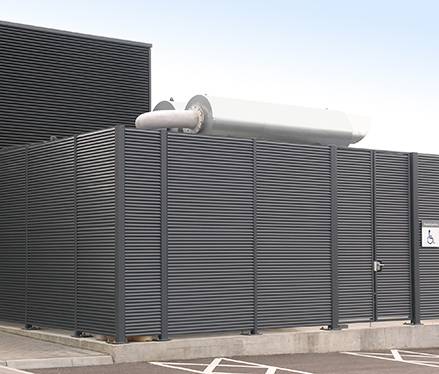

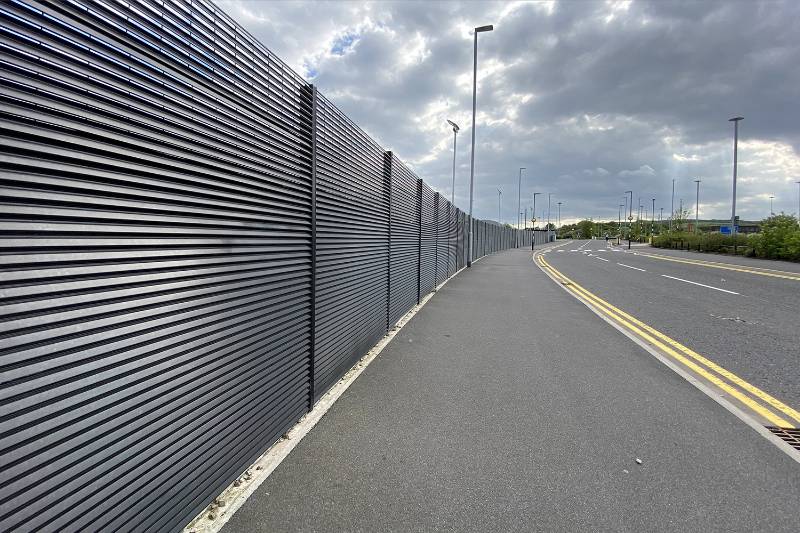

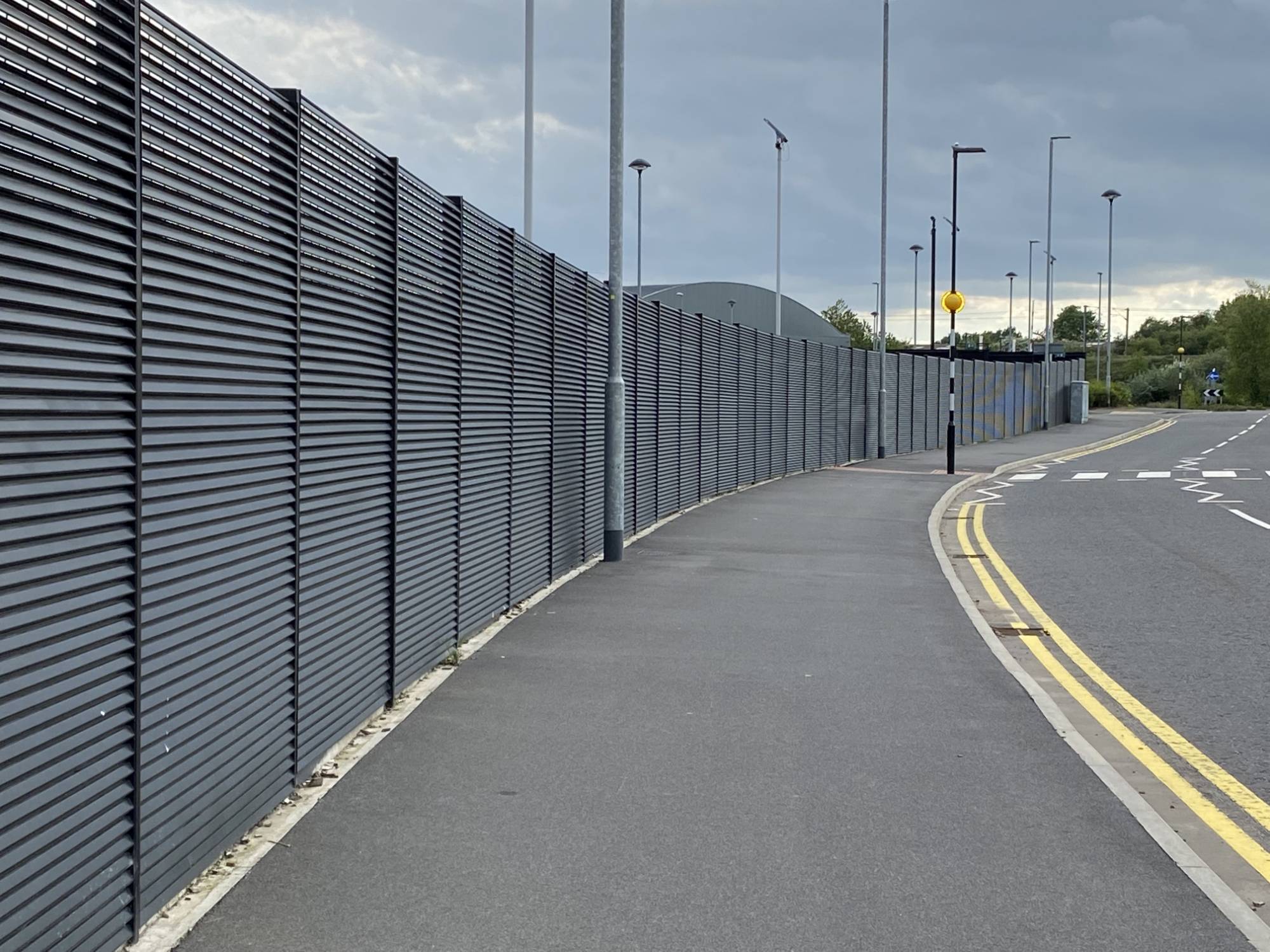

A rigid steel louvred fencing system, which offers a high degree of perimeter protection combining 100% visual screening and anti-climb properties. The louvre profile is formed from triple flanged 69 x 1.5 mm flat bars, which overlap to provide total screening and a linear aesthetic.

Features and benefits:

Louvres are secured by electrofusion to 4 mm diameter vertical round bars.

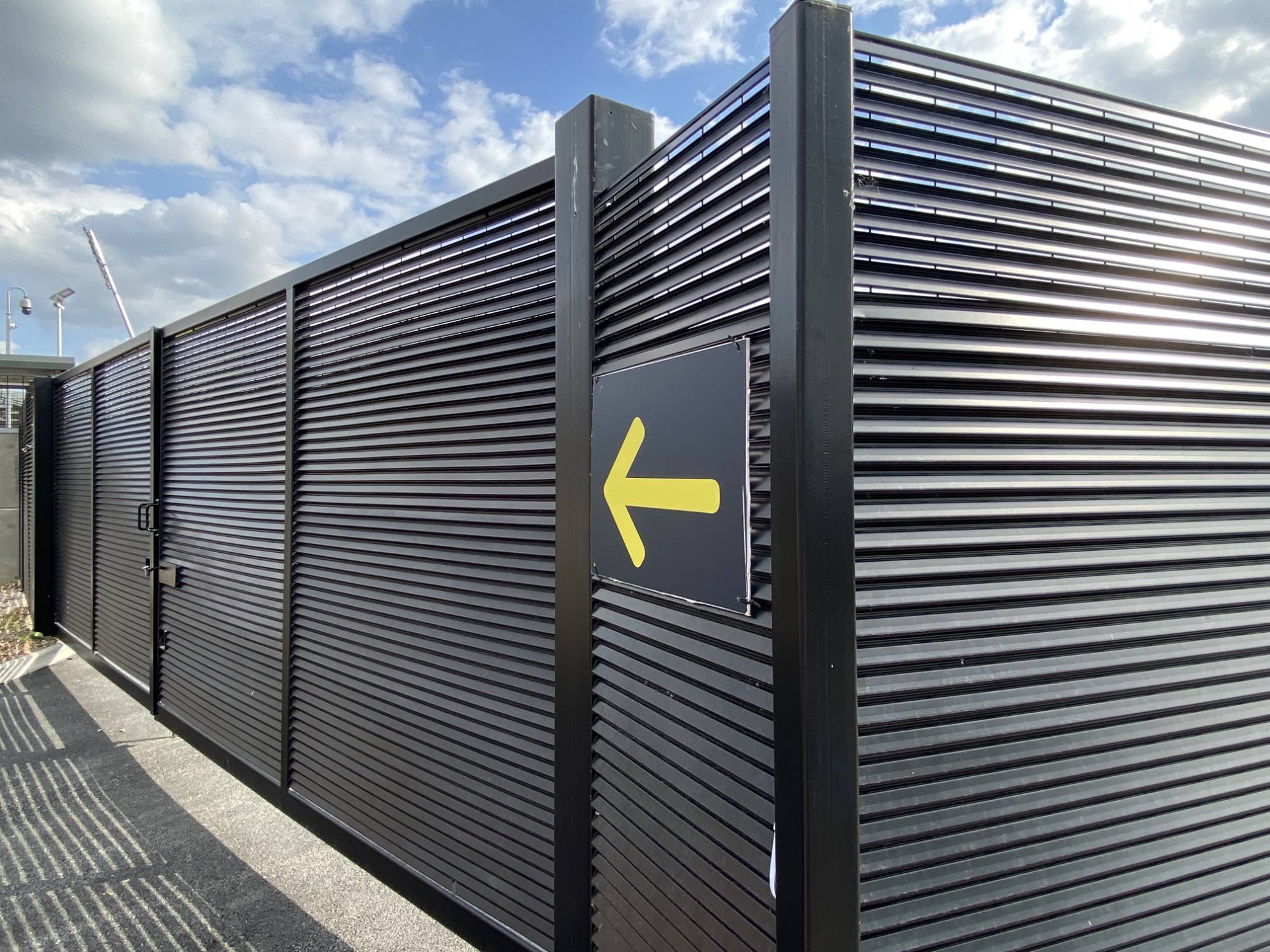

Single leaf, double leaf, pivot, cantilevered or sliding gates are made to match with Italia-100 infill.
Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm.
Louvre fences are supplied in accordance with BS 1722-14.
Panels and posts can be supplied galvanized only, or galvanized and powder coated to any RAL colour.

General information

Color	Grey Black Blue Brown Copper Bronze Cream Gold Green Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more Manufacturer guidance Hot-dip galvanized and polyester powder coated option to any RAL or BS colour.
Finish	Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated
Material	Steel
Shape	Rectangle Guidance for specification option: Vertical design.
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary Ss_25_14_61_62 Post and panel fencing systems
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/126 Open mesh steel panel security fencing

Product range	Fencing

Specification data - Metal mesh panel fencing systems

Standard	To BS 1722-14.
Posts	Mild steel S235JR.
Post foundations	Ground fixing (concrete mix). Guidance for specification option: Refer to BS 1722 giving consideration to existing ground conditions. Posts to be set in holes 300 to 400 mm square in plan and between 550 and 700 mm in depth, depending on fence height. Holes should be completely filled to a minimum of 50 mm below ground level with concrete mix (minimum strength of C20). Base plates for fixing to a concrete foundation. Off-set over top of wall. Anchoring within wall pockets. Manufacturer guidance Alternative lengths and style of post, dependent on fixing.
Site applied finishes	- Manufacturer guidance Polyester powder coating is a multi-stage process which applies thermo-setting resins, producing a superior finish to painting.
System accessories	Not required. Entry/ exit controls. Guidance for specification option: Optional entry/ exit controls can be supplied for restricted access, with automatic activation in the event of fire alarm.

Panel Type	Italia-100 Vertical Fencing.
Height	967 mm. 1196 mm. 1608 mm. 1745 mm. 1975 mm. 2479 mm. 2616 mm. 2937 mm. Show more
Width	1992 mm. Manufacturer guidance Panel. Non-standard heights and widths fabricated upon request.
Straight section	60 x 40 mm RHS. Guidance for specification option: For panel heights: 967, 1196, 1608 or 1745 mm. 80 x 40 mm RHS. Guidance for specification option: For panel height: 1975, 2479 or 2616 mm. 100 x 50 mm RHS. Guidance for specification option: For panel heights: 2937 mm. 100 x 55 mm I-section. Manufacturer guidance Posts. RHS: Rectangular hollow sections. Height from ground: Panels to sit 100 mm (maximum) off ground.
Corners	60 x 60 mm SHS. Guidance for specification option: For panel heights: 967, 1196, 1608 or 1745 mm. 80 x 80 mm SHS. Guidance for specification option: For panel heights: 1975, 2479 or 2616 mm. 100 x 100 mm SHS. Guidance for specification option: For panel height: 2937 mm. 60 x 60 mm RSA. Guidance for specification option: For panel heights: 967, 1196, 1608 or 1745 mm. 80 x 80 mm RSA Guidance for specification option: For panel heights: 1975, 2479 or 2616 mm. 100 x 100 mm RSA. Guidance for specification option: For panel height: 2937 mm. Composite flat bar. Guidance for specification option: For angles not equal to 90 degrees. Show more Manufacturer guidance Posts. SHS: Square hollow sections. RSA: Rolled steel angles. Changes in level: Fence panels stepped to 150 mm (maximum) on standard length post. Post centres to be reduced for steeper gradients (between 1:20 and 1:7).
Fixing	Stainless steel bolts, domed heads and snap-off security nuts, grade A2. Guidance for specification option: Panels fixed to posts.
Other requirements	Not required. Rolled to a radius.
Finish:	Hot-dip galvanized. Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option: Insert colour requirement. To BS EN ISO 1461 and polyester powder coated to BS EN 1722-16 in any RAL or BS colour.
Orientation	Vertical louvres. Guidance for specification option: Provides a variable degree of visual screening, depending on the angle of view.
Framing	Framed on two sides with flat bars. Guidance for specification option: Flat bars projects behind the louvre, to provide a fixing zone for a bolted panel-to-post connection.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Steel
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.37 kg CO₂ eq/kg Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	56 %
