Internal Modular Ramp

Verified by manufacturer 6 months ago

Standard modular ramp

Rapid Ramp Limited Variant:

The internal modular ramp is available in different lengths, widths, heights, and configurations to suit different indoor spaces. Two options are available, the standard or DDA compliant.

Jump to:
+44 (0)1424 714646 Website

Application

Standard modular ramp:

  • Suitable for residential applications.


Fully compliant modular ramp:

  • Suitable for all public applications e.g. schools, museums, train stations, airports, outdoor festivals, offices, public toilets facilities.

Description

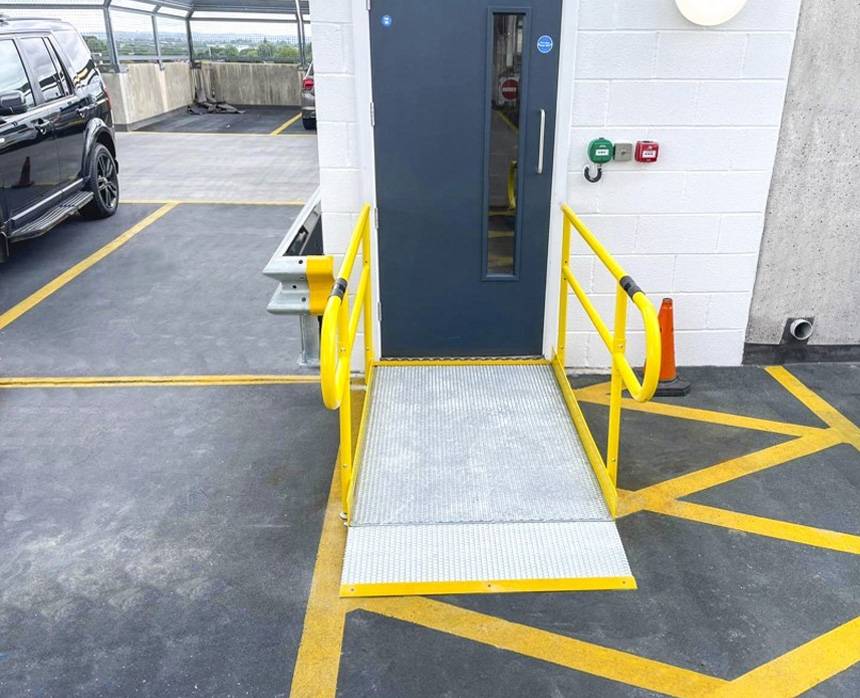

The internal modular ramp is available in different lengths, widths, heights, and configurations to suit different indoor spaces, such as marquees, car parks, halls, schools, and hospitals.


Plus, the Lidar scanning technology employed by our site surveyors is advantageous for internal ramp projects. This machine scans and charts the dimensions of objects within its field of view, including items like drain covers, slopes, flooring, ceilings, pillars, and overhead beams.


Subsequently, the ramp can be meticulously designed to navigate around these obstructions, and the process guarantees the calculation of adequate headroom between the ceiling and ramp height.


The ramp feet can be screwed down to the floorboards to create a secure fixing. Alternatively, rubber pads can be fixed to the feet.


Features and benefits:

  • Rapid design and installation.
  • Available in varied widths.
  • Made of durable steel with galvanised walkway and powder-coated, warm-to-touch handrails.
  • Manufactured in the UK with a nationwide service in the UK and Ireland.
  • Reusable modular components.
  • Ramps are fire-resistant, compared to wooden systems which will burn if exposed to fire.
  • Three-year guarantee, lifespan of over 25 years.
  • Suitable as a short or long term solution.
  • Fully adjustable, can be adapted, modified and reused.
  • Bespoke sizes are available.
  • Ramps can easily be removed, leaving an area in its original condition.

General information

Color

Black

Guidance for specification option:

Standard.

Other

Guidance for specification option:

Also available powder-coated in any RAL colour.

Finish

Galvanized

Powder-coated

Material

Steel

Width

900 mm

1000 mm

1200 mm

1500 mm

Bespoke

Height

-

Manufacturer guidance

The Rapid Ramp system can be used up to 3 m high.

Warranty description

Three year

Uniclass

Ss_35_10_85_35 Heavy steel stair systemsPrimary

CAWS

L30/45 Ramps/ walkways

L30/470 Ramps

Specification data - Heavy steel stair systems

Flooring and treads

Mesh platform.

Guidance for specification option:

As standard. Minimum width: 900 mm.

GRP platform.

Guidance for specification option:

Optional. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard, contact manufacturer for colour options and insert requirements.

Safetread rubber crumb.

Guidance for specification option:

Optional. A soft, slip-resistant surface that reduces the impact of falls. Available in various colours, contact manufacturer and insert requirements.

Ramp system

Standard modular ramp.

Guidance for specification option:

Suitable for residential applications.

Gradient

≤ 1:12 (4.7°).

Width

900 mm.

Guidance for specification option:

The recommended width for dwellings under Document M, Section 6 of the Building Regulations.

1000 mm.

Guidance for specification option:

Standard size for dwellings.

1200 mm.

Guidance for specification option:

Slightly wider ramp.

1500 mm.

Guidance for specification option:

Recommended width for ramps for public buildings.

Bespoke.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Any of the widths can be secured together to create almost any width.

Handrails

Standard handrail.

Infill handrail.

Guidance for specification option:

The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings.

1100 mm high vertical infill handrail.

Guidance for specification option:

For level landings in a commercial application.

Lower intermediate handrail.

Guidance for specification option:

For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system.

Manufacturer guidance

  • With trombone ends as standard.
  • Powder coated black as standard, but can be powder coated to any RAL colour.
  • For further information, consult manufacturer's literature and insert requirements.

Integral accessories

Telescopic legs.

Guidance for specification option:

Legs can be adjusted to accommodate different threshold heights.

Accessories

None.

Gates unit.

Guidance for specification option:

A gate unit can be attached to the side of a platform; 1200 mm or wider.

Step unit.

Access hatch.

Guidance for specification option:

A hatch opens allowing a person access to the underground services.

Underside mesh hoarding.

Guidance for specification option:

This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings.

Specification includes:

• Mesh size 200 x 50 mm.

• 33.7 mm OD Single mesh clip.

Show more

Colour/ Finish

Black, powder-coated.

Guidance for specification option:

As standard.

RAL, powder-coated.

Guidance for specification option:

Insert requirements.

MaximumSupportedWeight

815 kg (approx.).

Guidance for specification option:

Factor of safety, 1.5. For further details, contact manufacturer.

Manufacturer guidance

Maximum recommended load based on the weight loading report for a 1500 x 1500 mm platform.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

156.73 kg CO₂ eq/m²

Self declared

Guidance for specification option:

When considering the carbon embodiment within the material; it is important to understand the mass of the material. For instance, a Rapid Ramp is hollow underneath the platform, whereas, a concrete ramp is solid. The amount of carbon embodiment needs to be considered based on the mass.

Recyclability

96%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

21 %

Case studies

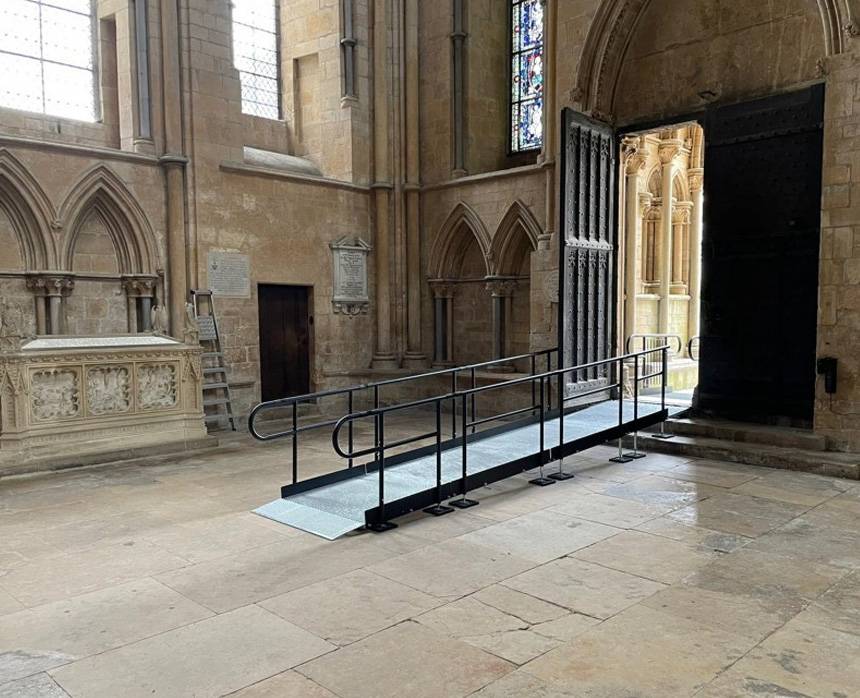

Lincoln Cathedral, Lincoln

Lincoln Cathedral, Lincoln
