Internal Glazed Screen with Timber Frame

Verified by manufacturer 27 days ago

NFR Internal Glazed Screen with Timber Frame (Non fire-rated)

Ahmarra Door Solutions Ltd Variant:

Internal glazed screens with timber frames. Available as glazed side screens, elevated side screens, multiple side screens and fanlights.

Jump to:
02392 389 076 Website

Application

Ahmarra specialise in bespoke internal screens (internal windows).

Internal screens enable the transfer of natural light throughout internal spaces.

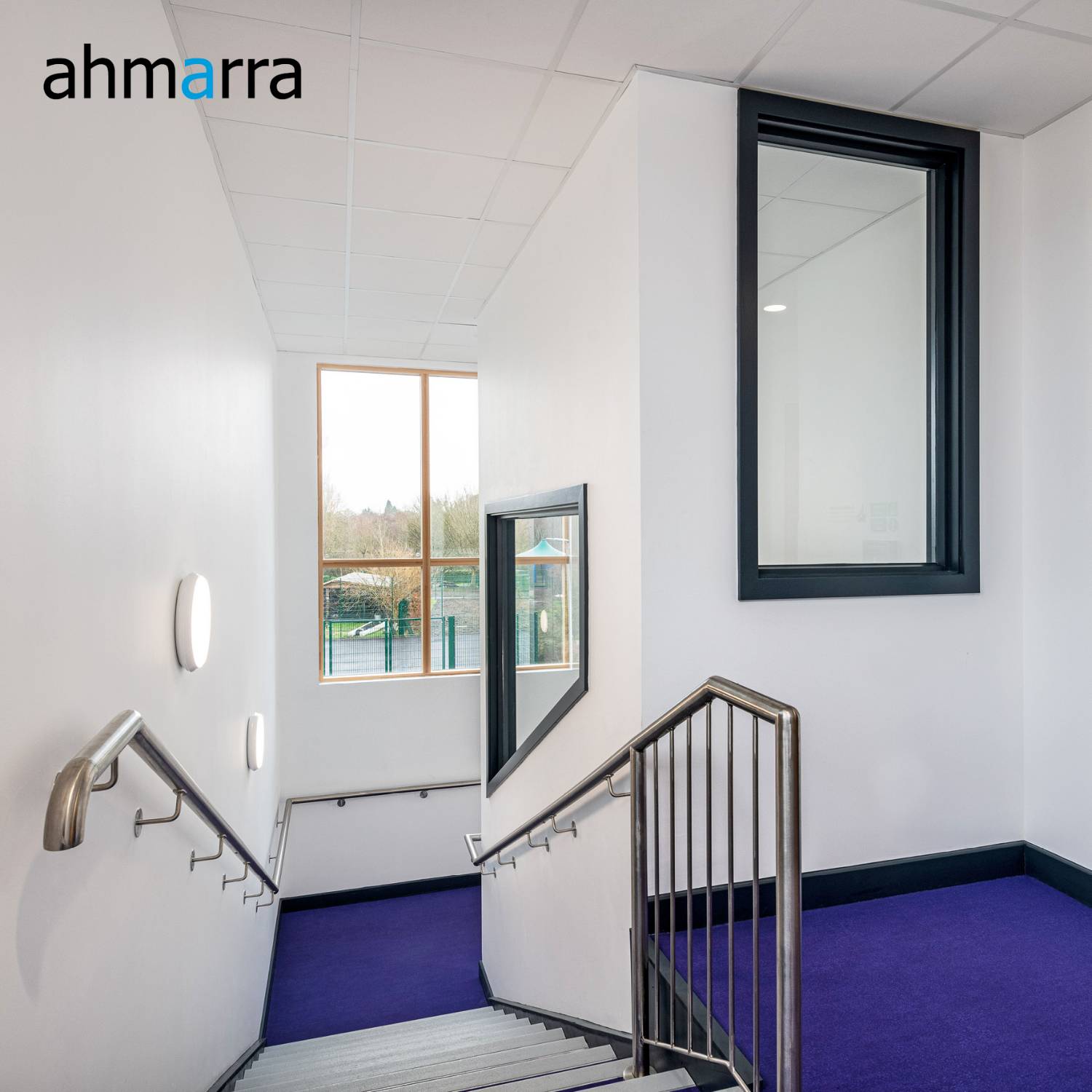

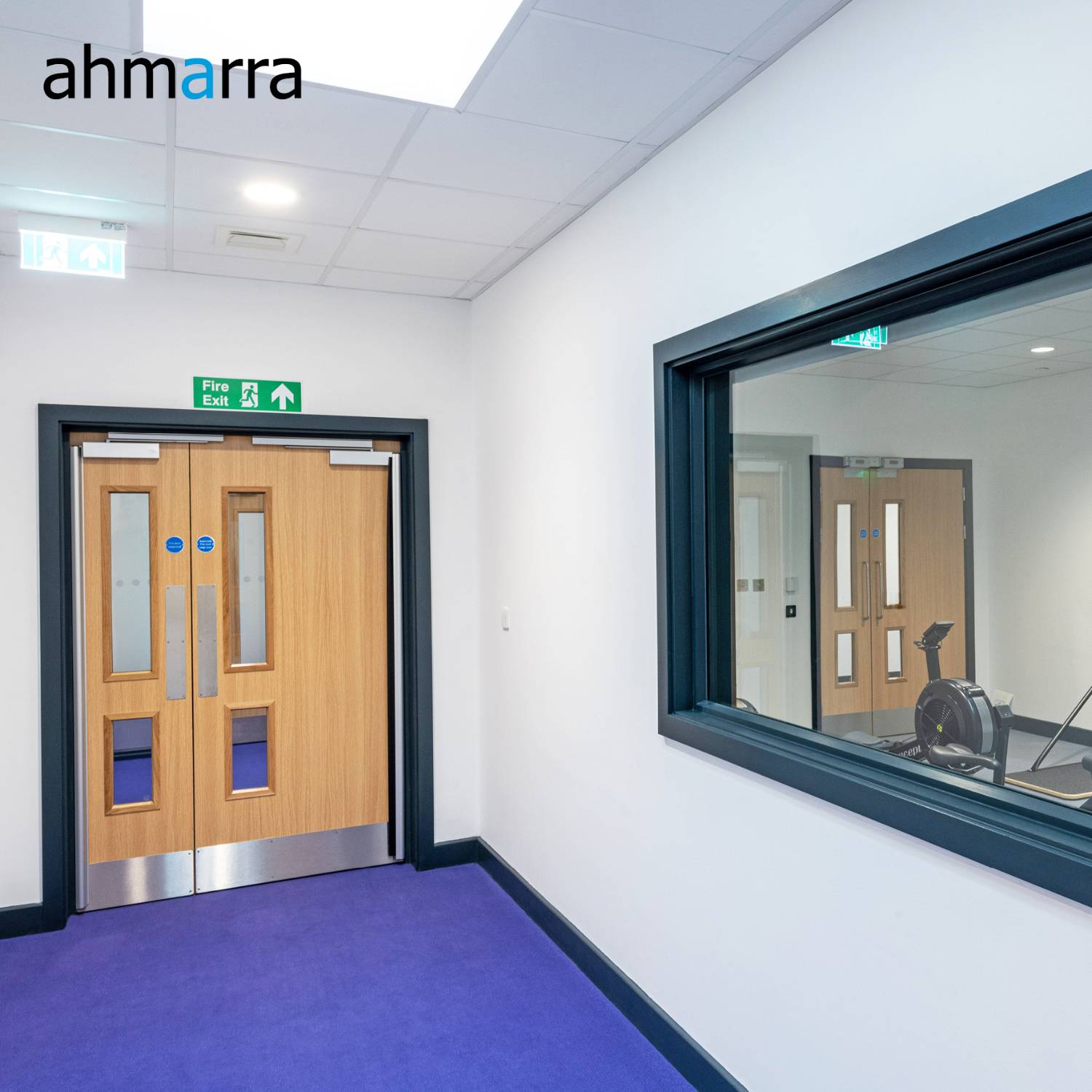

The screens can be standalone internal windows (i.e. elevated from floor level and not attached to a door), or configured with Ahmarra's internal door ranges as fanlights, side screens, elevated side screens or multiple side screens.

Glass is supplied loose for installation by others following the installation of the screen (window). Approved Document B of the Building Regulations: Table A4, gives guidance on the ‘Limitations of the use of uninsulated glazed elements on escape routes’.

Particular care should be taken when screens are full length and are fitted over an atrium where a potential fall from height needs to be considered. Specific line-loading of glass must be stipulated by the architect/specifier.


Description

Glazed screens are available with NFR, FD30 and FD60 fire-ratings, 35 to 50 RwdB acoustic ratings and Class 1B1, 2B2 and 3B3 safety ratings.


Features and benefits:

  • NFR, FD30 and FD60 fire ratings available.
  • 30, 35, 40 and 50 RwdB acoustic ratings available.
  • Class 1B1, 2B2 and 3B3 safety ratings available.
  • E, EW and EI classifications available.
  • Bespoke designs - frames are available in a range of wood species.
  • Made-to-measure - manufactured to suit the specified structural opening.
  • Manufactured from FSC®-certified (FSC C018847) and other controlled material that support responsible forestry.
  • Installation service - by Ahmarra's experienced installers is available.


Third party accreditation:

  • BS EN ISO 9001 Quality Management System certified.
  • BS EN ISO 14001 Environmental Management System certified.
  • BS EN ISO 14064 Carbon Footprint verified.
  • FSC® (Forest Stewardship Council®) certified.
  • Fleet Operator Recognition Scheme (FORS).
  • Architectural and Specialist Door Manufacturers' Association (ASDMA) member.
  • Made In Britain member .

General information

Color

Clear

Brown

White

Other

Finish

Primed

Lacquered

Stained

Material

Timber

Glass

Shape

Other

Guidance for specification option:

Bespoke.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

Specification data - Wood window units

Standard

Non-fire and/ or smoke-rated windows.

Third-party certification

FSC® (Forest Stewardship Council) certified.

Dimensions and configurations

Guidance for specification option:

Bespoke manufactured to suit specified structural opening.

Consult manufacturer and insert requirements - height x width.

Product performance

-

Fire performance

-

Fire resistance

Non-fire rated.

Environmental

-

Acoustic performance rating

Not applicable.

30 RwdB.

35 RwdB.

40 RwdB.

50 RwdB.

Manufacturer guidance

Please consult the manufacturer if a acoustic rating higher than 50 RwdB is required.

Frame

-

Standard

To BS EN 942.

Profile

Plain lining screen profile (LNG).

Wood species

Engineered Softwood (ESWD) - primed for on-site painting.

Engineered Hardwood (EHWD) - primed for on-site painting.

Solid Timber - American White Oak.

Solid Timber - American Black Walnut.

Solid Timber - American Cherry.

Solid Timber - Ash.

Solid Timber - Maple.

Solid Timber - Steamed Beech.

Chain of custody

FSC.

Appearance class

Timber in accordance with BS EN 942. Minimum J30.

Finish as delivered

Primed.

Guidance for specification option:

Timber screen frames are available primed in white, ready for on-site painting.

Lacquered.

Guidance for specification option:

Timber screen frames are available with a clear lacquer finish.

Stained.

Guidance for specification option:

Timber screen frames are available with a stain finish.

Operation

-

Type

Fixed.

Configuration

Side screen.

Elevated side screen.

Fanlight.

Internal window.

Safety

To BS EN 12600, Class 1B1.

Guidance for specification option:

Highest performing.

To BS EN 12600, Class 2B2.

To BS EN 12600, Class 3B3.

Manufacturer guidance

For glass to be classified as an impact-safe material, it must undergo the Safety Standard Test. This test is used to define the level at which glass will ‘break safely’, meaning there will be no large shards of glass, only small fragments that will cause less injury. The classifications within BS EN 12600 are;

  • Class 1B1 (highest performing),
  • Class 2B2,
  • Class 3B3 (lowest performing).

Classification

E - Integrity.

Guidance for specification option:

E offers the base level of fire performance and is also the minimum requirement stated by the UK Building Regulations. It provides effective protection against fire and smoke, but does not prevent the transmission of heat.

EW - Integrity and radiation.

Guidance for specification option:

EW represents an increased level of protection. Fire glass that achieves the EW classification offers the same level of protection against fire and smoke as E, as well as a reduction in the amount of radiant heat transmitted to the protected side. Specifically, EW keeps radiant heat below 15 kW/m².

EI - Integrity and insulation.

Guidance for specification option:

The EI classification offers the highest level of protection. As well as providing a robust barrier against fire and smoke, EI also offers a significant reduction in the amount of heat transferred through the glass, keeping the average temperature of the unexposed side below 140°C. This means that if there is a raging fire on one side of the glass, with temperatures above 800°C, building users on the unexposed side remain protected from the heat and can make an escape.


Please note: While the type of protection offered is determined by the product’s classification, the length of time for which this protection can be maintained will vary from 30 minutes up to 180 minutes.

Architraves

44 x 18 mm.

69 x 18 mm.

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Location

Yes.

No.

Manufacturer guidance

Is the screen positioned at height i.e. overlooking an atrium.

Sustainability data

Country of product manufacture

United Kingdom

Material

Timber

Glass

Manufacturing plant location

Literature

Education Range Door Brochure
