Interior Tiles & Plank Ceilings
Verified by manufacturer 1 year ago
Tile infill units, steel
Tile infill units, steel
Metal ceiling tiles and planks.
Application
Suitable for most building sectors:
- Corporate.
- Retail.
- Leisure.
- Public space.
- Hospitality.
- Healthcare.
- Education.
- Residential.
Description
Metal ceiling tiles are available in both tile and plank form. They require no tools or fasteners for installation and provide easy access to the plenum space. Available in a wide choice of patterns, materials and colours
Features and benefits:
- Tiles:
- Lay-in and lay-on tiles are designed to be installed in conventional T-grid systems.
- Tiles are standard available in steel (0.5 mm); other materials are available on request.
- Good for situations where regular access is required
- Easy cleaning and maintenance of the tiles.
- Optimal acoustic control by using perforated panels with an acoustical inlay bonded to the inside of the panels.
- Full adaptability of the system allowing easy repositioning of tiles, services and lighting.
- Planks:
- Installation as lay-on planks, in C-grid or hook-on system.
- Virtually unlimited choice in shapes and finishes offering versatility in ceiling design.
- Strong acoustic performance when combined with acoustic pads.
- Easy access to the plenum and installations above the ceiling.

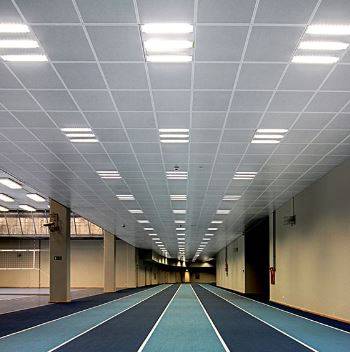

- An impact-resistant version is available for sport hall applications.
General information
Color | Silver Guidance for specification option: Other special colours are available on request, contact manufacturer for details. |
Finish | Chrome |
Material | Steel Aluminium |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Modular suspended ceiling systems
Classification data | |
Ceiling support | Metal suspended ceiling hangers. |
Support fasteners | Manufacturer's standard. |
Ceiling units | 600 x 600 mm lay-in tiles 15/8. Guidance for specification option: 15 mm grid; 8 mm reveal. 625 x 625 mm lay-in tiles 15/8. Guidance for specification option: 15 mm grid; 8 mm reveal. 600 x 600 mm lay-in tiles 24/0. Guidance for specification option: 24 mm grid; 0 mm reveal. 600 x 600 mm lay-in tiles 24/8. Guidance for specification option: 24 mm grid; 8 mm reveal. 600 x 600 mm lay-in tiles 24/16. Guidance for specification option: 24 mm grid; 16 mm reveal. 600 x 600 mm lay-in tiles 12/24, 15 mm grid. 600 x 600 mm lay-in tiles 12/24, 24 mm grid. |
Third-party certification | Cradle to Cradle Certified™ Bronze, FSC Certified, suitable for BREEAM and Leed, Indoor Air Comfort Gold, French VOC-regulation class A+, Oeko-tex Standard 100 klasse IV, SundaHus Miljödata klasse A, GreenGuard Gold. |
Standards | To EN 13501-1. |
Acoustic performance | Aw 0.75. |
Edge profile | L-profile. Guidance for specification option: 25 x 25 mm made of 1.5 mm thick steel aluminium. W-profile. Guidance for specification option: 25 x 25 x 25 x 25 mm made of 1.5 thick aluminium. F-profile. Guidance for specification option: 25 x 25 mm, made of 1.5 thick aluminium. Stepped F-profile. Guidance for specification option: 25 x 25 x 25 x 25 mm, made of 1.5 thick aluminium. |
Fire classification | Non-combustible (to EN 13501-1). |
Gauge | 0.5—0.6 mm. |
Sustainability data
Contains Red List materials | No |
Material | Steel Aluminium |
Literature
Commercial Ceilings & Walls Product Guide 2024/2026
