Inspection Chamber 750 mm x 600 mm
Verified by manufacturer 14 days ago

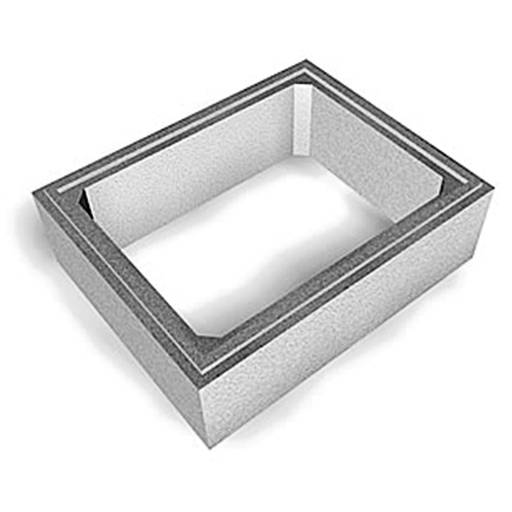

Precast concrete inspection chamber.
Application
Suitable for invert depths up to 2.7m.
Description
Precast concrete inspection chamber with tongue and groove joint detail which can be used on invert depths up to 2.7m and are available in a range of sizes.
General information
Color | Other Guidance for specification option: Natural. |
Height | 150 mm |
Length | 750 mm |
Width | 600 mm |
Material | Concrete |
Shape | Rectangle |
Size | 750 x 600 x 150 mm |
Uniclass | |
CAWS | R12/755 Jointing concrete manhole chamber sections P30/150 Access and inspection chamber systems Q37/830 Inspection chamber installation |
Specification data - Concrete inspection chamber sections
Dimensions | |
Clear internal dimension | 750 x 600 x 150 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 1 |
