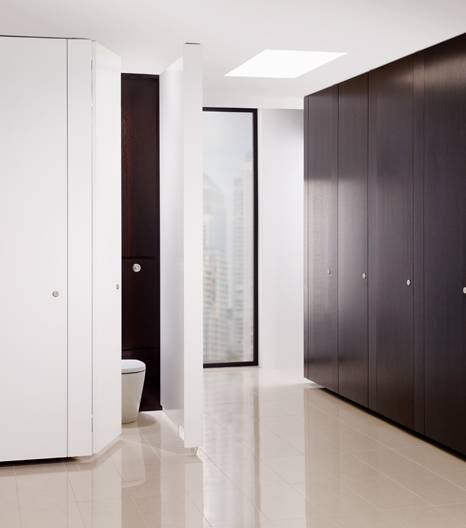

Infinite Cubicles

Description

Frameless cubicle system with clean lines, flush fronts and minimalist fittings. Available with colour or veneer finishes.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Product Reference

Infinite Colourcoat

Polyurethane lacquer finish.

Infinite Veneer

Wood veneer finish.

Size

-

Depth

Maximum: 1800 from face of back wall or rear ducting.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Floor clearance: 50 mm.
  • Ceiling clearance: 20 mm.
  • Pedestal adjustment: ± 8 mm.

Construction:

  • Headrail: Slimline aluminium profile with stainless steel finish, 3 part fixing system which allows cubicles to finish 20 mm below ceiling height.
  • Pedestals: Stainless steel with brushed finish.
  • Wall fixings: Concealed aluminium channel.

Ironmongery:

  • Hinges: Spring loaded, stainless steel butt hinges.
  • Bolt: Stainless steel, lever operated indicator bolt with circular face plate and emergency release.

Product Options

Product reference:

– Infinite ColourCoat:

  • Board/ panel: 720 kg/m³ MDF, sprayed with one coat of primer and finished with pigmented polyurethane lacquer.
  • Thickness: Partitions, 30 mm; doors and pilasters, 44 mm.
  • Edge treatment: As main board.
  • Colour: Any RAL: colour.

– Infinite Veneer:

  • Board/ panel: 720 kg/m³ MDF, finished with lacquered, genuine wood veneer.
  • Thickness: Partitions, 30 mm; doors and pilasters, 44 mm.
  • Edge treatment: Matching hardwood.
  • Finish: Consult Venesta Washroom Systems for available veneers.

Height:

  • Standard: 2115 mm from FFL to top of headrail.
  • Maximum: To 1500 mm deep, 2765 mm; 1501–1800 mm, 2450 mm.
