ImpactoMat 5 - Resilient Acoustic Underlay
Verified by manufacturer 5 days ago
Thin and resilient floor soundproofing underlay to help reduce impact noise.
Application

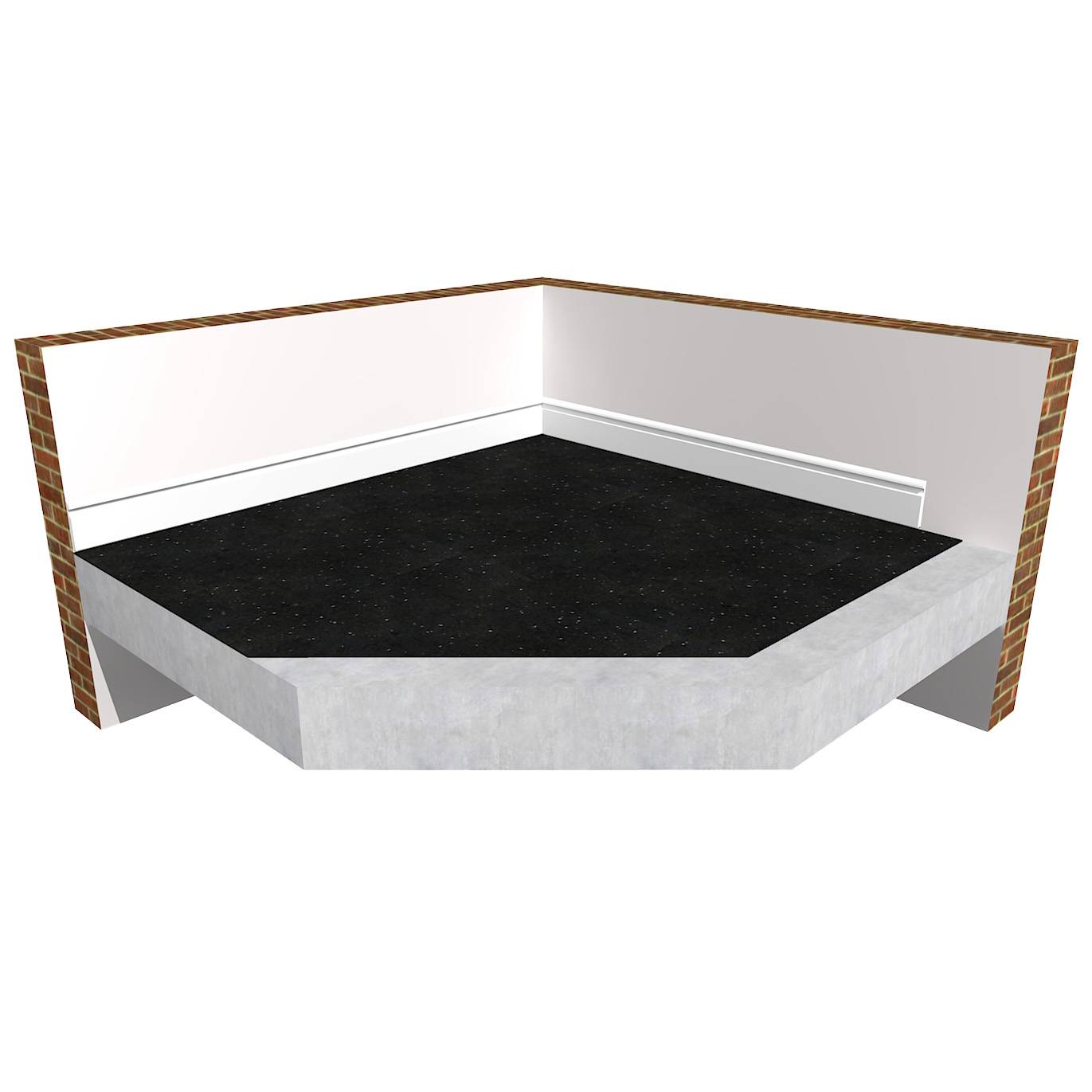

Suitable for use on concrete floors or as an under-screed soundproofing layer in offices, apartments, hotels and commercial applications. Compatible with underfloor heating (UFH).
Description
The ImpactoMat 5 is a thin floor soundproofing solution to help reduce impact noise.
Features and benefits:
- Reduces impact noise.
- Easy to install.
- 100% recyclable.
- Thin, only 5 mm thick.
- Part E compliant.
- Can be cut to size.
- Low thermal resistance.
- Compatible with most floor finishes.
General information
Color | Black |
Shape | Rectangle |
Length | 10000 mm |
Width | 1000 mm |
Height | 5 mm |
Uniclass | |
CAWS | M40/5 Tiling M40/110 Tiling K21/20 Composite laminated flooring K21/10 Wood laminate flooring K11/27 Acoustic separating floor K11/275 Acoustic separating floor system K21/146 Laminate flooring K21/145 Composite laminate flooring K21/140 Battened wood laminate flooring K21/130 Battened wood floating floor K21/115 Wood laminate flooring |
Specification data - Resilient layer insulation
Classification data | |
Thickness | 5 mm. |
Fire performance | To EN 13501-1, Class E. |
Sound insulation rating | 55 dB (LnT, w). Guidance for specification option: Tested on a 200 mm concrete slab. |
Roll size | 10 000 x 1000 mm. Guidance for specification option: 10 m². |
Weight | 37.5 kg. Guidance for specification option: Per roll. |
ThermalConductivity | 0.132 W/m·K. |
Thermal resistance | 0.038 m²·K/W. |
Accessories | Not required. High tack tape - 33 m x 50 mm. Acoustic sealant - 900 ml. Perimeter flanking strip (25 m x 100 mm x 5 mm). IsoBond rubber adhesive 12 kg (30 m² coverage). |
Sustainability data
Recyclability | 100% recyclable |
Literature
Literature type
ImpactoMat 5 - Brochure
Performance Data: ImpactoMat
