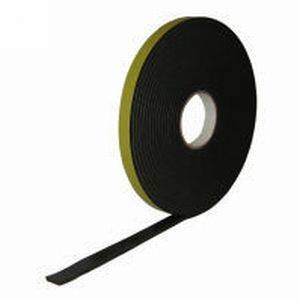

illbruck TN583  Sealing Tape P335

Description

Features:

  • A specialist load-bearing foam tape, designed to act as a spacing element between the insulating glass unit and frame during the assembly of structural glazing fabrications.
  • Forms an effective short-term bond between the frame and the glass unit during assembly and creates a gap of the correct dimensions for the structural silicone adhesive, which is used as the primary bond.

Limitations:

  • The tape is designed to be used as a spacer only.
  • The product is not designed to form structural load bearing bonds.

Substrate:

  • Surfaces must be clean and dry before application.
  • The use of alcohol based solvents (eg AW414) when cleaning the frame prior to application is recommended.

General information

Features

A specialist load-bearing foam tape, designed to act as a spacing element between the insulating glass unit and frame during the assembly of structural glazing fabrications

Forms an effective short-term bond between the frame and the glass unit during assembly and creates a gap of the correct dimensions for the structural silicone adhesive, which is used as the primary bond

Uniclass 2015

Pr_35_90_87_56 Non-impregnated foam glazing tapesPrimary

CAWS

H11/775 Bonding sealants for structural sealant/ bonded glazing

H13/750 Structural sealant joints

Specification data - Non-impregnated foam glazing tapes

Product Reference

illbruck TN583 Sealing Tape P335

Section

-

Thickness

6 mm

10 mm

SectionWidth

Cut to order, see 'Options' and insert requirements.

Standard product features

Colour:

Black.

Compatibility with structural silicone sealants:

  • Dow Corning 797, 993.
  • GE Bayer SSG 4000, 4000-AC, 4400.
  • Rhodia VEC90, VEC99.
  • Wacker SG18, SG20, SG500.
  • Test reports are available on request.

Performance:

  • Foam density: 335 Kg/m³.
  • Application temperature range: +10 to +30°C.
  • Service temperature range: -30 to +60°C.
  • Tensile strength: >1000 KPa.

Product Options

Section:

  • Width (standard): 6–950 mm.
  • Other widths and thicknesses are available subject to minimum order or agreement.
