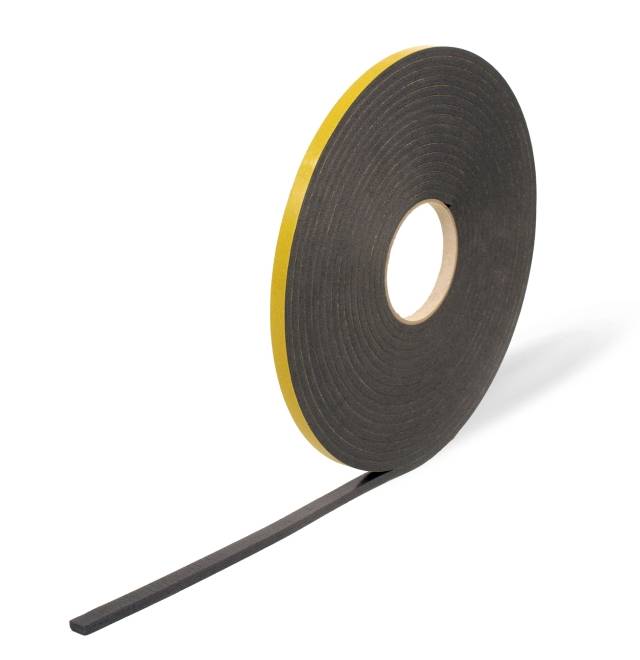

illbruck TN550 Security Glazing Tape PVC


A high density substantially closed cell PVC foam for increased strength, coated on both sides with an acrylic pressure sensitive, moisture resistant, cross-linked adhesive reinforced with a tissue interleave (DST version). This plasticiser resistant adhesive system gives improved long term performance and excellent intrusion resistance.

  • Quick and easy to apply.
  • Cost effective. Replaces the internal gasket and reduces site glazing time.
  • High quality adhesive systems for maximum performance.
  • Enables externally beaded windows to satisfy the glazing security requirements of PAS24:2016.

General information

Uniclass 2015

Pr_35_90_87_84 Structural glazing tapesPrimary


L40/310 Bead-fixed single-glazing

L40/330 Bead-fixed single-glazing

L40/372 Bead-fixed insulating glass units

Specification data - Structural glazing tapes

Product Reference

illbruck TN550 Security Glazing Tape PVC-DST

illbruck TN550 Security Glazing Tape PVC-DSX


2 mm

3 mm

4 mm

5 mm

6 mm

8 mm

10 mm




Standard product features


235 kg/m³.

Temperature resistance:

-30°C up to +60°C.
