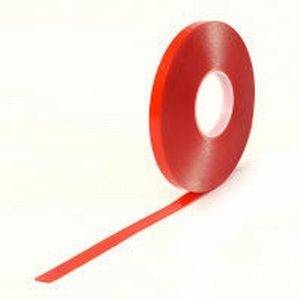

illbruck TN021 Foamed Acrylic Tape

Application

  • Cladding panels.
  • Georgian bar bonding.
  • Metal fabrication.
  • Resin bonded laminated glass.
  • Signs.

Description

TN021 Foamed Acrylic Tape is made from a composition of viscoelastic acrylic copolymers and monomers with glass microsphere fillers. The product is naturally tacky and is capable of forming structural bonds with many non-porous materials. Certain grades have an additional acrylic adhesive coating to enhance adhesion to low energy surfaces.

Applications:

  • Cladding panels.
  • Georgian bar bonding.
  • Metal fabrication.
  • Resin bonded laminated glass.
  • Signs.

General information

Uniclass 2015

Pr_35_90_87_69 Polymer-based adhesive sealant tapesPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/250 Wood windows

L10/260 Wood windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/315 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/350 PVC-U windows

L10/360 PVC-U windows

L10/380 PVC-U windows

L10/400 Composite windows

L10/45 Rooflights

L10/460 Rooflights

L10/480 Roof windows

L10/510 Glazed wood screens

L10/550 Glazed metal screens

null Glazed screen system

L40/310 Bead-fixed single-glazing

L40/330 Bead-fixed single-glazing

Specification data - Polymer-based adhesive sealant tapes

Product Reference

illbruck TN021 Foamed Acrylic Tape

Type

C040

White, 0.40 mm thick, acrylic adhesive.

C064

White, 0.64 mm thick, acrylic adhesive.

C080

White, 0.80 mm thick, acrylic adhesive.

C110

White, 1.10 mm thick, acrylic adhesive.

025C

Clear, 0.25 mm thick.

050C

Clear, 0.50 mm thick.

100C

Clear, 1.00 mm thick.

150C

Clear, 1.50 mm thick.

200C

Clear, 2.00 mm thick.

040W

White, 0.40 mm thick.

064W

White, 0.64 mm thick.

080W

White, 0.80 mm thick.

110W

White, 1.10 mm thick.

200W

White, 2.00 mm thick.

025G

Dark Grey, 0.25 mm thick.

040G

Dark Grey, 0.40 mm thick.

080G

Dark Grey, 0.80 mm thick.

110G

Dark Grey, 1.10 mm thick.

150G

Dark Grey, 1.50 mm thick.

Standard product features

Density:

850 kg/m³.

Temperature resistance:

Short term: up to 160°C; Long term: up to 100°C.
