illbruck TN 136 Security Glazing Tape PE

illbruck TN 136 Security Glazing Tape PE

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

CPG UK Ltd

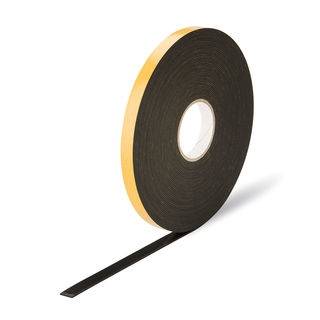

Premium grade security glazing double-sided foam tape for use in PVC-U windows and doors.

Jump to:
+44 (0)1942 251400 www.cpg-europe.com/en-gb/
Description

Manufactured from low density cross-linked, 100% closed cell, polyethylene (PE) foam coated on both faces with a pressure sensitive, moisture resistant adhesive.

  • Cost effective. Replaces the internal gasket and reduces site glazing time.
  • High quality adhesive systems for maximum performance.
  • Enables externally beaded windows to satisfy the glazing security requirements of PAS24:2016.

General information
Uniclass 2015
Pr_35_90_87_84 Structural glazing tapesPrimary
CAWS

L40/310 Bead-fixed single-glazing

L40/372 Bead-fixed insulating glass units

L40/330 Bead-fixed single-glazing

Specification data - Structural glazing tapes
Product Reference

illbruck TN136 Security Glazing Tape PE

Thickness

1 mm

2 mm

3 mm

4 mm

5 mm

6 mm

Standard product features

Colour:

Black.

Density:

50 kg/m³ (mean result when tested to BS 4443-1, method 2).

Temperature resistance:

-40°C up to +80°C.

Third party certifications
  • PAS24:2016
