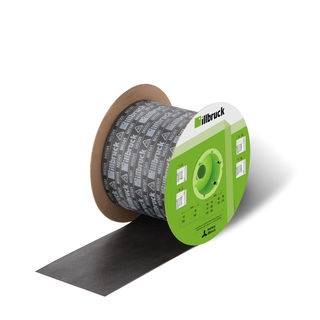

illbruck ME501 DUO HD Intelligent Membrane
Verified by manufacturer 19 days ago
Standard
Standard
BBA Agrément Certificate
Certificate type
An air and water tight membrane with variable vapour permeability for connection between the external perimeter of the window, door or curtain wall frame and the backing wall substrates.
Application
Applied to principally to the external perimeter of windows doors and curtain walling or over other linear construction joints. Often accompanied by illbruck ME508 Duo EW/F applied to the internal perimeter for a complete perimeter seal . ME501 Duo HD may also be used internally for difficult details, or where the width of the membrane exceeds the available sizes of Me508 Duo EW/F. Please consult illbruck for advice.
Description
ME501 Duo HD is a highly water tight and airtight "intelligent" membrane with reactive and variable vapour control. ME501 Duo HD provides a high performance seal to the external perimeter joints between the window, door curtain wall and the external construction reveal. The membrane is suitable for external and interior use and provides an air and weathertight but breathable seal. The standard version is bonded on both edges with illbruck SP525 Polymer Hybrid adhesive sealant or another sealant specified by illbruck for difficult substrates.
Features and benefits:
- Complies with principle of ‘inside tighter than outside’ in order to facilitate efficient vapour control - avoids interstitial condensation.
- Excellent drying potential.
- High strength, tear resistant.
- UV stable; will tolerate up to 12 months direct exposure prior to covering.
- Membrane can be applied before or after window installation to suit on-site details and programming.
- Also available in a self-adhesive option (ME501 VV) and with gasket options for fixing to the profile.
For Technical Data Sheets and Safety Data Sheets, please refer to the illbruck website Download Centre.
General information
Color | Grey |
Finish | Smooth Textured |
Material | Polyethylene Polyester Laminate |
Shape | Rectangle |
Length | 25000 mm |
Height | 0.6 mm |
Warranty description | Manufacturer guidanceAny product which has been applied (a) in accordance with Tremco CPG UK Ltd written instructions and (b) in any applications recommended by Tremco CPG UK Ltd, but which is proved to be defective, will be replaced free of charge. |
Uniclass | |
CAWS | H11/772 Curtain walling joint assembly sealants L10/75 Sealant joints L10/810 Sealant joints L20/80 Sealant joints L20/820 Sealant joints |
Product range |
Specification data - Plastics sheets
Material | Non-woven polyester fleece and microporous polyethylene laminate. |
Performance characteristics | |
Water vapour resistance (minimum) | To BS EN 1027, variable sd-value 0.3 m to 20 m.Guidance for specification option: Vapour resistance 1.5MNs.g to 99MN.s.g. |
Fire performance | To EN 13501-1 Class E; to DIN 4102, Class B2. |
UV stabilization | 12 months. |
Third-party certification | British Board of Agrement Certificate.Guidance for specification option: 12/4891 (i3 System) and product sheet 4 12/4891. |
Physical properties | |
Colour | Anthracite/ dark grey. |
Dimensions | |
Thickness (minimum) | 0.6 mm. |
Width (minimum) | Slit to width 60–1500 mm. |
Roll length (minimum) | 25 m. |
Execution | Manufacturer guidanceIn strict accordance with manufacturers' method statement. Applied with the textured face outermost. Application always starts at the cill or threshold. Do not over apply the specified paste adhesive. Window, door and curtain wall applications-Minimum bond to glazing frame is 20 mm. Minimum lap and bond to backing wall/substrate is 50 mm. When applied as linear construction joint seal the membrane should be applied equal distant over the joint with a 50/50 lap to the corresponding substrates and a minimum bond of 35 mm, 50 mm preferred |
Air permeability | To BS EN 1026, <0.1 m³/m².hr@50Pa. |
Resistance to water penetration | Resistance to driving rain to BS EN 1027, 1200 Pa; Resistance to liquid water penetration to EN 1928, Class W1. Guidance for specification option: Weathertight against driving rain. |
Application temperature | +5° to +40°C. |
Service temperature | -40°C to +80°C. |
UV resistance | 12 months full exposure. |
Storage | 12 months in cool dry conditions. |
Accessories | Cutting shears. Seam roller. Tape measure. Retractable bladed knife. |
Adhesive | Plain - bonded with SP525 on both edges. |
Third party certifications
BBA Agrément Certificate
BBA Certificate ME508 and ME501 Duo Window Membranes
Similar products from illbruck – a brand of Tremco CPG UK Ltd

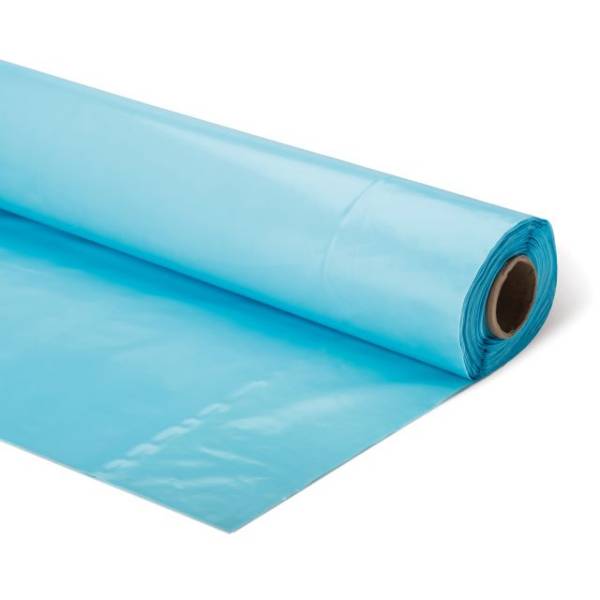

illbruck ME003 Vapour Barrier
