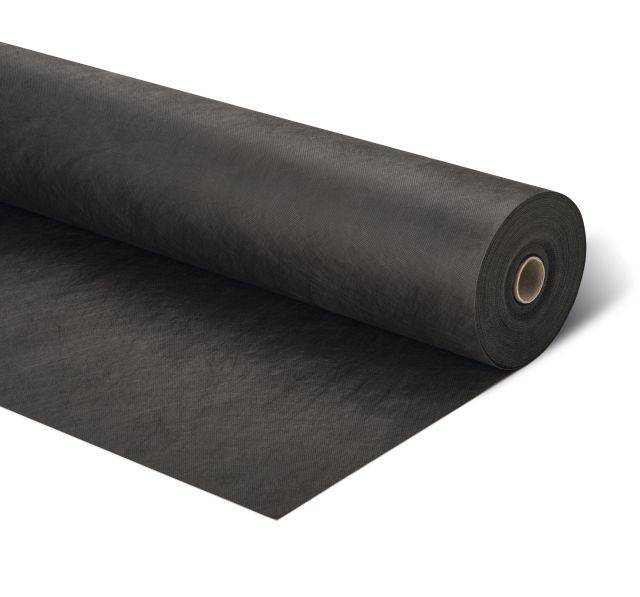

illbruck ME011 Breather Membrane UV

Application

To be directly laid on a sheathing board or thermal insulation behind partially open façades or curtain walling.

Description

A highly vapour open breather membrane, air and weather tight, with six months UV-resistance.

Features and benefits:

  • High range of in-service temperature resistance.
  • Highly vapour open.
  • Non-branded, plain black finish - ideal for visible applications.
  • Airtight and weather tight.
  • Six months UV-resistance.
  • Available with self-adhesive strip.

Applications:

To be directly laid on a sheathing board or thermal insulation behind partially open façades or curtain walling.

Can be used in conjunction with:

  • OT301, SP525 and SP925 adhesives - To bond the membrane to adjacent walls and floors to create a lasting air-tight and vapour-tight connection.
  • ME315 and ME31 tapes - To seal the membrane overlaps on non-porous or other suitable surfaces.

General information

Material

Non-woven water repellent polyester

Uniclass 2015

Pr_25_57_10_94 Vapour permeable sheetsPrimary

CAWS

H92/785 Breather membrane

P10/320 Breather membrane

P10/65 Breather membrane

Specification data - Vapour permeable sheets

Product Reference

illbruck ME011 Breather Membrane UV

Self-adhesive strip

Not required

Required

Standard product features

Material:

Non-woven water repellent polyester.

Colour:

Grey.

Thickness:

0.4 mm (approximate).

Roll size (w x l):

1.5 x 50 m.

Weight:

120 g/m² (approximate).

Technical properties:

  • Water vapour permeability (sd value): 0.15 m.
  • Air permeability: 0.1 m³/m².hr (approximate, at 50 Pa).
  • UV-resistance: Six months.
  • Service temperature: -40 to +120ºC.
