IL-Design - Aluminium

Environmental:

All Kingspan Insulated Panels manufacturing facilities across the UK and Ireland are 100% Net Zero Energy. In addition, facilities located in Kingscourt, Holywell and Sherburn generate renewable energy onsite which contributes to that sites energy mix.

Quality and Durability:

Kingspan insulated panels are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with:

• BS EN ISO 14001 panels are manufactured under Environmental Management System Certification.
• BS EN ISO 9001 standard, ensuring long term reliability and service life.
• BS EN ISO 50001 Energy Management System Certification.
• BS EN ISO 45001 Occupational Health and Safety Certification.
• BS EN ISO 37301 Compliance Management Systems
• CE marked to BS EN 14509: 2013.

Certification and Testing:

• Classified A2-s1,d0, when tested on the external face of the product, according to the European Reaction to Fire classification system (Euroclasses) BS EN 13501–1.

Please contact Kingspan Tech-eXchange for further information regarding certification and testing.

Kingspan Tech-eXchange:

Kingspan Tech-eXchange is our dedicated team supporting you during the conception, design and installation of your project using our building envelope solutions, Kingspan Tech-eXchange supports our customers using the latest modelling and design software packages.

Kingspan Warranty:

Kingspan Warranty

• Up to 25 year external coating warranty.

Kingspan Planet Passionate:

Planet Passionate is Kingspan’s ambitious 10-year global sustainability programme which aims to impact three big global issues:

• Climate change.
• Circularity.
• Protection of our natural world.

By setting ourselves challenging targets in the areas of energy, carbon, circularity and water, we aim to make significant advances in the sustainability of both our business operations and our products.

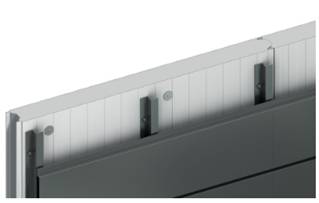

The IL Design Cassette System is a secret-fix facade solution with a slim linear aesthetic. Planks are available with closed ends for open joints or with butt-straps for pencil joints. The planks may be installed either horizontally or vertically. The planks may be attached to Quadcore or K-Roc Karrier or to any suitable supporting framework such as a helping hand system. Planks are fixed with blind rivets through pre-punched fixed point and floating point holes.

When installed to Karrier panels, Kingspan Ref KSSVG25 self-adhesive closed cell PVC foam tape must be included between the contact flanges of the planks and the face of the Karrier.

Features and benefits:

• Available in 1.5 or 2.0 mm thick aluminum.
• Polyester powder coated in any colour/finish from the Kingspan Colours and Coatings Book.
• Face width from 160 to 400 mm, lengths from 300 to 3800 mm.
