IKO Permatec Ecowrap

Name: IKO Permatec Ecowrap
Brand: IKO Ireland
SKU: t8wNCKhu7uNovrJpKg389G

Verified by manufacturer 6 months ago

IKO Ireland

Product certifications:

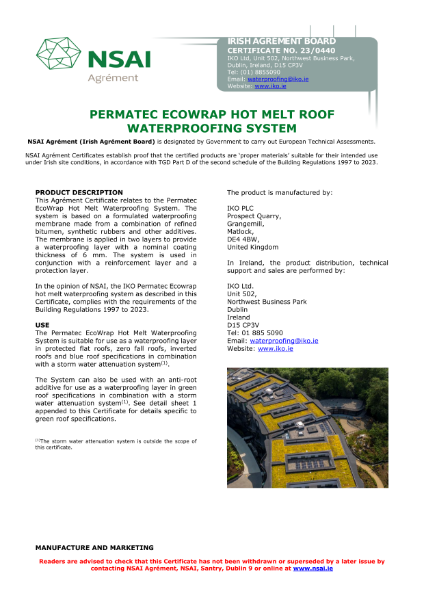

NSAI Agrément Certificate
Certificate type

Hot-melt bitumen roofing waterproofing membrane system.

Jump to:

Request BIM

+353 1 88 55 090 Website

Application

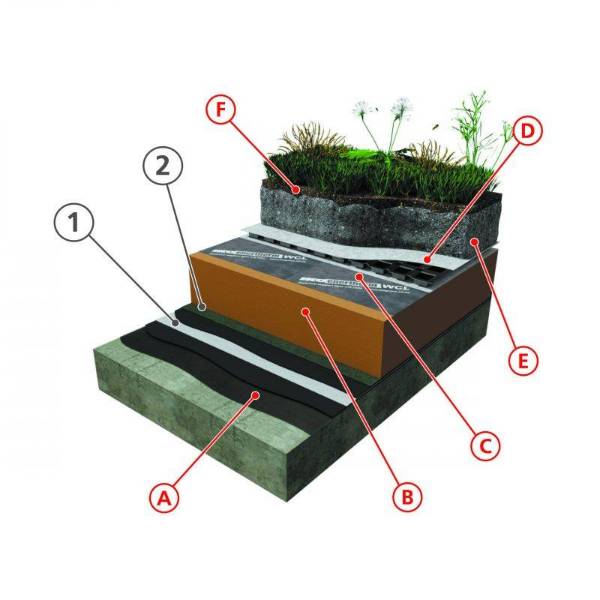

Waterproofing layer in protected flat roofs (including zero fall), inverted roofs and blue roof specifications in combination with a storm water attenuation system.
Suitable for community and amenity, education, health, hotel and leisure, industrial, mixed-use, offices, utilities and retail applications.

Description

A hot applied roofing waterproofing membrane system manufactured from a specially formulated combination of refined bitumen, synthetic rubbers, fillers and other additives while being very environmentally friendly with 45% recycled content and zero wrapper waste. The membrane is applied in two layers to provide a waterproofing layer with a nominal coating thickness of 6 mm.

Features and benefits:

BBA approved (Certificate no.03/4009).
Environmentally friendly - constructed with 45% recycled content.
Virtually no packaging to be disposed of (zero wrapper waste).
Hot applied system – no solvent content - multi-purpose use.
Suitable for flat roof and zero falls decks.
Seamless application - excellent low temperature flexibility.
High bond strength to substrate - high tensile strength.
Rapid setting - resistant to rain, snow and frost immediately after application.
Outstanding durability, tough and resistant to impact damage - lasts the life of the building.

General information

Color	Black
Material	Bitumen Guidance for specification option: A hot applied roofing waterproofing membrane system manufactured from a specially formulated combination of refined bitumen, synthetic rubbers, fillers and other additives.
Length	Bespoke
Width	Bespoke
Warranty description	25 year Guidance for specification option: Up to 25 years.

Uniclass	Ss_30_40_30_42 Liquid-applied inverted roof covering systemsPrimary
CAWS	J31/130 Inverted roof coating J31/12 Inverted roof coating

Specification data - Liquid-applied inverted roof covering systems

Classification data
Preparation	-
Horizontal work	IKO Permatec Polymer Primer. IKO Permatec high penetration primer.
Skirtings and vertical work	IKO Permatec Polymer Primer. IKO Permatec high penetration primer.
Liquid-applied waterproofing	-
Type	2 no. coats of IKO Permatec Ecowrap hot melt compound. 2 no. coats of IKO Permatec Ecowrap hot melt compound, plus IKO Permaguard-HDPB (Heavy Duty). Guidance for specification option: Permaguard-HDPB is a 3 mm thick high density polymeric protection board with high impact resistance for use in heavy-duty situations. It is installed into the second coat of Permatec Compound whilst it is still hot. 2 no. coats of IKO Permatec Ecowrap hot melt compound, plus IKO Permaguard-PB. Guidance for specification option: Permaguard-PB is a 3.2 mm thick protection board, fabricated with a bituminous core and glass fibre reinforcement. It is installed into the second coat of Permatec Compound whilst it is still hot.
Reinforcement	IKO Permaflash-R reinforcement.
Surface treatment	IKO Permaguard-F protection layer. IKO Roofgarden 4 APP AD/F. Guidance for specification option: IKO Roofgarden is used as the top layer to reinforced bitumen membrane systems when installing roof garden finishes above.
Insulation	-
Type	Unilin XPS insulation board. Ravatherm XPS insulation board. Fibran XPS insulation board.
Water control layer	IKO enertherm water control layer.
Drainage layer	Not required. Required. Guidance for specification option: For roof garden applications. Consult manufacturer and insert requirements.
Flashings and detail work	Not required. IKO PermaFLASH-D150. Guidance for specification option: A nominal 1.25 mm thick flexible bitumen EPDM polymer detailing sheet. A reinforcement layer of PermaFLASH-D150 should be applied prior to applying the PermaTEC membrane at all non-monolithic changes in substrate materials, at structural/shrinkage cracks between 3 and 6 mm wide, at structural joints between 6 and 12 mm wide and where minor movement may occur. IKO PermaFLASH-D500. Guidance for specification option: A flexible bitumen EPDM polymer detailing sheet, installed as a reinforcement layer around rainwater outlets. IKO PermaFLASH-UN. Guidance for specification option: At structural movement joints up to 25 mm (maximum 50% total movement), PermaFLASH-UN reinforcement must be installed fully bonded in hot Permatec compound centrally over the movement joint. At structural movement joints between 12 and 50 mm (maximum 50% total movement), a proprietary joint system must be installed. Consult manufacturer for suitable products.

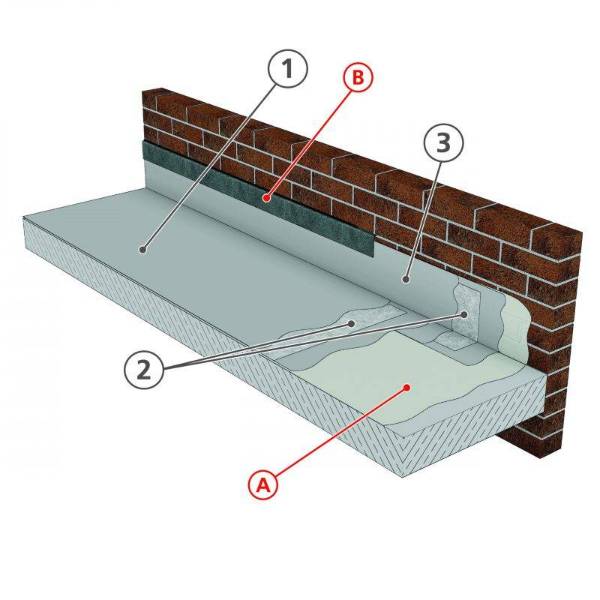

Upstand	Exposed upstand details: IKO PermaGUARD-M Torch On (T-O) protection layer. Guidance for specification option: A protection layer to PermaTEC on exposed upstand details.
Outlets	IKO Elite Extended Grate Outlets.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Bitumen Guidance for specification option: A hot applied roofing waterproofing membrane system manufactured from a specially formulated combination of refined bitumen, synthetic rubbers, fillers and other additives.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	45 %
