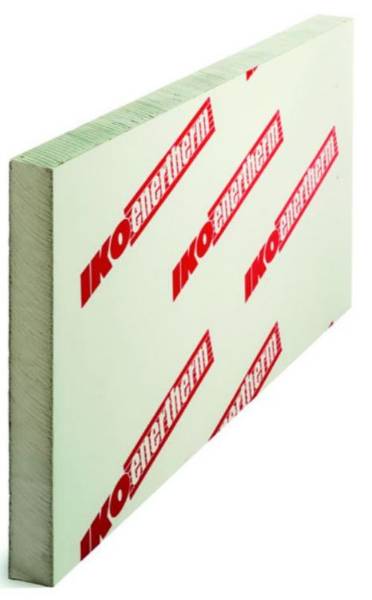

IKO enertherm MG Insulation Board

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

IKO PLC

Insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a perforated, coated glass membrane.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

For use as part of commercial and domestic projects of any size within roofing applications, particularly flat roofs in combination with plastic membranes. Can be used on:

  • Concrete.
  • Timber.
  • Masonry.
  • Profiled metal decking.

Description

Insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a perforated, coated glass membrane, designed to assist with the application of bituminous membranes, single-ply membranes and mastic asphalt systems.

Features and benefits:

  • Multi-layer.
  • 100% chlorofluorocarbon (CFC) and hydrochlorofluorocarbon (HCFC) free.
  • Fire resistant.
  • Manufactured with micro-cell technology.
  • CE marked to EN 13165.
  • BBA approved and FM certified.

Applications:

For use as part of commercial and domestic projects of any size within roofing applications, particularly flat roofs in combination with plastic membranes. Can be used on:

  • Concrete.
  • Timber.
  • Masonry.
  • Profiled metal decking.

General information
Size

A wide range of size and thickness combinations are available, providing varying thermal resistances; consult manufacturer for details and insert requirements.

Uniclass 2015
Polyisocyanurate (PIR) foam boards (Pr_25_71_63_66)Primary
Specification data - Polyisocyanurate (PIR) foam boards
Product Reference

IKO enertherm MG Insulation Board

Size

A wide range of size and thickness combinations are available, providing varying thermal resistances; consult manufacturer for details and insert requirements.

Edging

Rebate (SP)

Straight

Standard.

Standard product features

Colour:

Grey.

Technical characteristics:

  • Fire classification (to EN 13501-1): Class E.
  • Density: 32 kg/m³.
  • Compressive strength at 10% deformation: >150 kPa.
  • Behaviour under uniformly distributed loading: Class C.
  • Closed cells: More than 95%.
  • Water vapour diffusion: PIR foam: μ = 60; facing: μ > 10.
  • Thermal conductivity: <120 mm: 0.027 W/m·K; 120–140 mm: 0.026 W/m·K.
