IKO enertherm BGF Insulation Board

Third party certifications:

  • BBA Agrément Certificate

    Certificate type

IKO PLC

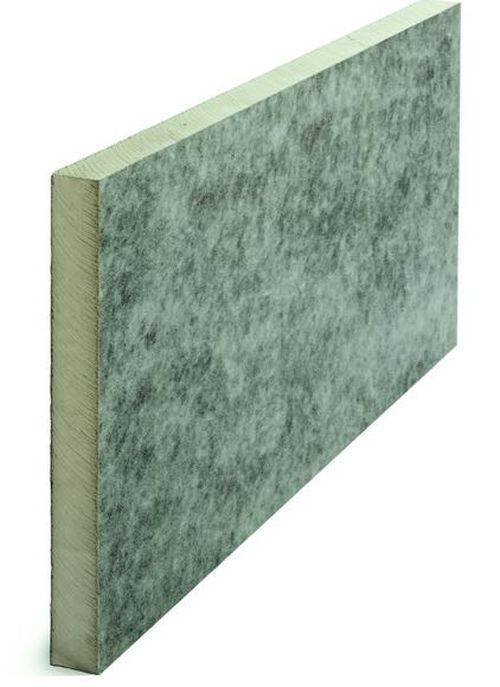

Insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a polypropylene-covered bitumen sand free glass fabric membrane.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

For use as part of commercial and domestic projects of any size within roofing applications, particularly flat roofs. Can be used on:

  • Concrete.
  • Timber.
  • Flat and pitched roofs.
  • Masonry.

Description

Insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a polypropylene-covered bitumen sand free glass fabric membrane, designed to assist with the application of single-ply membranes.

Features and benefits:

  • Multi-layer.
  • 100% chlorofluorocarbon (CFC) and hydrochlorofluorocarbon (HCFC) free.
  • Fire resistant.
  • Manufactured with micro-cell technology.
  • Suitable for the application of torch-on or pour and roll systems.
  • CE marked to EN 13165.
  • BBA approved and FM certified.

Applications:

For use as part of commercial and domestic projects of any size within roofing applications, particularly flat roofs. Can be used on:

  • Concrete.
  • Timber.
  • Flat and pitched roofs.
  • Masonry.

General information
Uniclass 2015
Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
Specification data - Polyisocyanurate (PIR) foam boards
Product Reference

IKO enertherm BGF Insulation Board

Thickness

30 mm

40 mm

50 mm

60 mm

70 mm

80 mm

90 mm

120 mm

140 mm

Edging

Rebate (SP)

Straight

Standard.

Standard product features

Size (l x w):

  • 30–90 mm: 1200 x 600 mm.
  • 120–140 mm: 1200 x 1000 mm.

Colour:

Grey.

Technical characteristics:

  • Fire classification (to EN 13501-1): Class F.
  • Density: 32 kg/m³.
  • Compressive strength at 10% deformation: >150 kPa.
  • Behaviour under uniformly distributed loading: Class C.
  • Closed cells: More than 95%.
  • Water vapour diffusion: PIR foam: μ = 60; facing: μ > 100.
  • Thermal conductivity: <120 mm: 0.027 W/m·K; 120–140 mm: 0.026 W/m·K.

Product Options

Thickness:

Consult manufacturer for corresponding thermal resistance (R-value) data.
