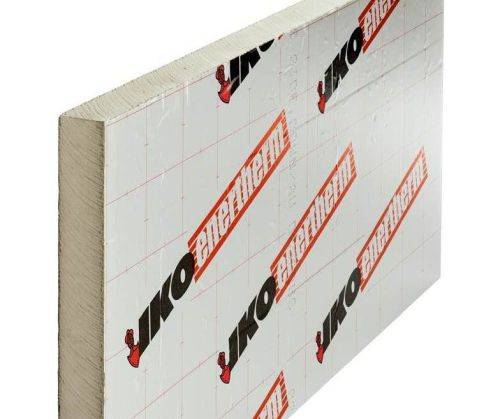

IKO enertherm ALU Insulation Board

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

IKO PLC

Multi-functional insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a multi-layer, gas-tight aluminium construction.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

For use as part of commercial and domestic projects of any size, including for:

  • Basements.
  • Cladding.
  • Flat and pitched roofs.
  • Cavity walls.
  • Floors.
  • Lofts.

Can be used on:

  • Concrete.
  • Steel.
  • Timber.
  • Masonry.

Description

Multi-functional insulation board with a rigid polyisocyanurate (PIR) foam core, clad on both sides with a multi-layer, gas-tight aluminium construction.

Features and benefits:

  • Multi-layer; consists of seven layers in total.
  • The aluminium cladding is reflective.
  • 100% chlorofluorocarbon (CFC) and hydrochlorofluorocarbon (HCFC) free.
  • Has been tested for performance for water absorption, mechanical properties, corrosion resistance and emissivity.
  • Fire resistant.
  • Manufactured with micro-cell technology.
  • CE marked to EN 13165.
  • BBA approved.

Applications:

For use as part of commercial and domestic projects of any size, including for:

  • Basements.
  • Cladding.
  • Flat and pitched roofs.
  • Cavity walls.
  • Floors.
  • Lofts.

Can be used on:

  • Concrete.
  • Steel.
  • Timber.
  • Masonry.

General information
Size

A wide range of size and thickness combinations are available, providing varying thermal resistances; consult manufacturer for details and insert requirements.

Uniclass 2015
Polyisocyanurate (PIR) foam boards (Pr_25_71_63_66)Primary
Specification data - Polyisocyanurate (PIR) foam boards
Product Reference

IKO enertherm ALU Insulation Board

Size

A wide range of size and thickness combinations are available, providing varying thermal resistances; consult manufacturer for details and insert requirements.

Edging

Rebate (SP)

Straight

Standard.

Tongue and groove (TG)

Standard product features

Colour:

Silver.

Technical characteristics:

  • Fire classification (to EN 13501-1): Class E.
  • Fire classification ‘end use’ (to 13501-1): B-s2,d0 (steel deck).
  • Density: 32 kg/m³.
  • Compressive strength at 10% deformation: 175 kPa.
  • Behaviour under uniformly distributed loading: Class C.
  • Closed cells: More than 95%.
  • Water vapour diffusion: PIR foam: μ = 60; aluminium facing: μ > 100 000.
  • Moisture insensitivity: Class 1.
  • Thermal conductivity: 0.022 W/m·K.
