IG Brick Slip Lintels - XHD-BSL
Verified by manufacturer 2 months ago
Brick Slip adhesion system applied to single leaf lintels.
Application
Used to achieve brick soffits over windows and door openings on a masonry facade. Suitable for use on residential buildings under 18 metres (11 metres in Scotland).
Description

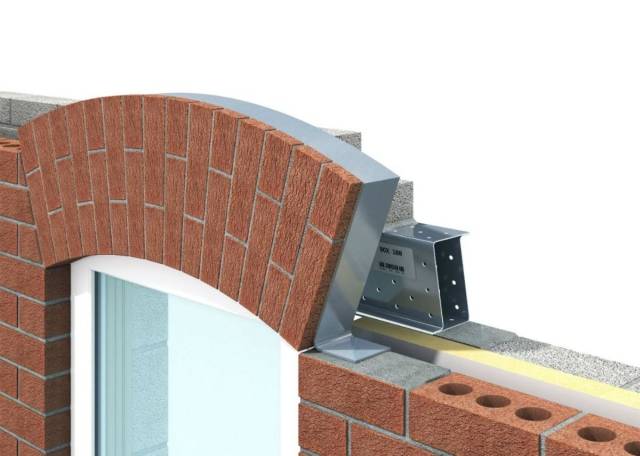

IG Brick Slip Lintels are a lightweight, stainless steel, prefabricated brick slip unit designed for openings up to 3.6 metres. Manufactured offsite, the units are delivered to site complete with brick slips adhesively bonded to the stainless steel carrier unit. These BBA approved lightweight units facilitate fast and efficient installation and integrate seamlessly with brickwork constructed onsite. Brick Slip Lintels can be designed to suit variations in shape and a variety of spans and loading conditions.
Features and benefits:
- Simplicity of installation.
- No brick cutting required onsite.
- Support steelwork is completely hidden.
- Adjustable on all axes.
- All brick patterns and various soffit sizes achievable.
- Blends seamlessly with brickwork constructed onsite.
- Reduces the need for masonry support in certain applications, saving time on installation.
Applications:
Used to achieve brick soffits over windows and door openings on a masonry facade. Suitable for use on residential buildings under 18 metres (11 metres in Scotland).
General information
Color | Silver |
Finish | Brick Stainless steel |
Material | Stainless steel Brick |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | F30/265 Support system |
Specification data - Masonry angle supports
Product Reference | IG Brick Slip Lintels |
Typical Design Solutions For Load Bearing Brick Slip Lintels | BSL Stretcher 65-327Guidance for specification option: Brick Slip Lintel. Size: 65 x 327 mm. BSL Header 65-215Guidance for specification option: Brick Slip Lintel. Size: 65 x 215 mm. BSL Rowlock 102-215Guidance for specification option: Brick Slip Lintel. Size: 102 x 215 mm. BSL Soldier 215-215Guidance for specification option: Brick Slip Lintel. Size: 215 x 215 mm. BSL Half Lap Bond 215-327Guidance for specification option: Brick Slip Lintel. Size: 215 x 327 mm. |
Uniclass 2015 Title | Stainless steel lintels |
Standard product features | Material: Austenitic stainless Steel, Grade 1.4301 (304) |
Product Options | Design and bond pattern: IG Brick Slip Lintels can accommodate any loading capacity. Solutions can be provided for any load and bond pattern required, consult the manufacturer for details.
Units to create a stretcher bond can be designed to suit a one, two and three brick deep soffit.
Units to create a header bond can be designed to suit a one, two and three brick deep soffit. The header bond detail on the BSL unit differentiates the soffit from the brickwork on the main facade.
Units to create a rowlock bond can be designed to suit a one, two and three brick deep soffit. The rowlock bond detail on the BSL unit differentiates the soffit from the brickwork on the main facade.
Units to create a soldier bond can be designed to suit a one, two and three brick deep soffit. The soldier bond detail on the BSL unit differentiates the soffit from the brickwork on the main facade.
Units to create a half lap bond can be designed to suit a one, two and three brick deep soffit. The half lap bond detail on the BSL unit differentiates the soffit from the brickwork on the main facade. IG Brick Slip Lintels can accommodate any loading capacity. Bespoke solutions including other brick arrangements, brick formats, face heights and soffit depths can be designed to suit specific project requirements. Note: Unit is manufactured using the brick of your choice, supplied free issue to IG Masonry Support. |
