IG Brick Slip Lintels - HD-BSL

IG Brick Slip Lintels - HD-BSL

Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

IG Masonry Support Ltd

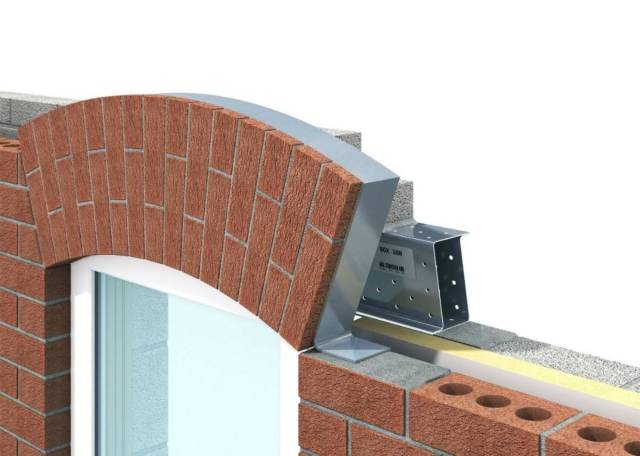

Brick Slip adhesion system applied to single leaf lintels.

Jump to:
+44 (0) 28 86760 334 www.igmasonrysupport.com
Application

Used over windows and door openings, Brick Slip Lintels eliminate the need for additional masonry supports, save time on installation and the need for specialist trades.

Description

Bespoke, prefabricated units manufactured offsite and delivered complete with unpointed bricks bonded to them.

The patented design of the perforated steelwork allows the adhesive to pass through and form a mushroom on the inside of the steel, creating a physical key. A specialist high performance adhesive designed primarily for the decorative brick industry is used for IG Brick Slip Lintels, it has been extensively tested and is BBA approved.

IG Brick Slip Lintels are produced offsite in a factory environment. This ensures that the bonding process occurs in optimum conditions, free from wet weather, extreme temperature variations and excessive dust.

Brick Slip Lintels are installed in the same way as a standard lintel with no fixings required. This system eliminates the need for additional masonry support, saves time on installation and reduces the need for specialist trades onsite.

Features and benefits:

  • Bespoke, manufactured to project requirements.
  • Simply installed as a standard lintel.
  • Blends seamlessly with already constructed brickwork.
  • Prefabricated for major reduction in onsite labour requirement.
  • Cost saving.
  • BBA certified.
  • BS EN 1090-1.
  • Independently tested by Ceram.

Applications:

Used over windows and door openings, Brick Slip Lintels eliminate the need for additional masonry supports, save time on installation and the need for specialist trades.

General information
Color

Stainless Steel

Features

Stainless Steel Lintel with Brick Slips bonded to a perforated stainless steel carrier

Finish

Project specific brick type

Material

Stainless Steel

Shape

Rectangle

WarrantyDescription

10 Years

Uniclass 2015
Pr_20_85_03_50 Masonry angle supportsPrimary
CAWS

F30/265 Support system

Specification data - Masonry angle supports
Product Reference

IG Brick Slip Lintels

Type

Apex arch

Flat ach 1½ brick deep

Full arch Bullseye

Gothic arch

Parabolic arch

Segmental arch 1½ brick deep

Design

BSL

HD-BSL

XHD BSL

Bond pattern

Header

Rowlock

Stretcher

Product Options

Design and bond pattern:

IG Brick Slip Lintels can accommodate any loading capacity. Solutions can be provided for any load and bond pattern required, consult the manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
Download now from NBS National BIM Library
Third party certifications

Additional certifications:

  • DOP:002MS2018
  • Lucideon Building Technology: Test Report No. 131830 and SW238/02 : Independent testing carried out by Lucideon has verified that in destructive testing there were no failures in the steel/adhesive interface.
