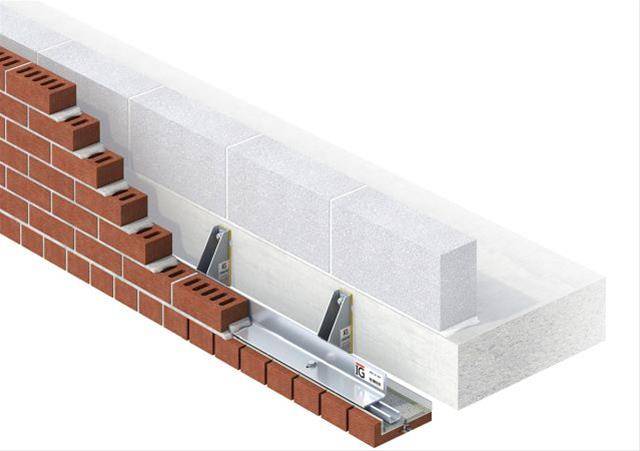

IG Brick On Soffit System - B.O.S.S +

Verified by manufacturer 2 months ago

IG Masonry Support Ltd

Masonry Support & Brick Slip Bolt-Up Technology combine to produce the Brick On Soffit System

Jump to:
+44 (0)1283 200 157 Website

Application

Suitable for use on residential buildings over 18 m above ground level.

Description

B.O.S.S.+ is an innovative, lightweight brick slip soffit system, with the added security of mechanically fixed brick slips. This patent-pending system comprises a stainless steel framework, to which brick slips are adhesively bonded and mechanically fixed. The adhesive surrounds the steel, creating a reinforced sandwich due to the addition of a cement particle board backing element.

The system offers adjustment on all three planes. The masonry support shelf features a slotted hole, giving adjustability along the Z axis. Further adjustment on the Z axis is attained by shimming behind the masonry support bracket. The integrated channel within the B.O.S.S.+ unit allows for increased adjustment on the X axis. Adjustability on the Y axis is created within the masonry support bracket, and the ability to insert shims between the shelf and the bolt-up system.

Features and benefits:

  • Mechanically fixed brick slips.
  • ‘A’ fire-rated.
  • Suitable for all building heights and purposes.
  • Complies with the Building Regulations 2010 (England and Wales) (as amended); the Building (Scotland) Regulations 2004 (as amended) and the Building Regulations (Northern Ireland) 2012 (as amended).
  • Simplicity of installation.
  • Various brick patterns and soffit sizes available.
  • CE marked to BS EN 1090-1.
  • BBA Certified

Application:

Suitable for use on residential buildings over 18 m above ground level.

General information

Color

Other

Finish

Brick

Stainless steel

Material

Brick

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_20_85_03_50 Masonry angle supportsPrimary

CAWS

F30/265 Support system

Specification data - Masonry angle supports

Product Reference

IG Brick On Soffit System (B.O.S.S.+)

Design

Half lap bond, 215 x 215 mm

Guidance for specification option:

890 x 215 x 215 mm (l x h x w) soffit profile.

Header bond, 65 x 215 mm

Guidance for specification option:

890 x 65 x 215 mm (l x h x w) soffit profile.

Soldier bond, 215 x 215 mm

Guidance for specification option:

890 x 215 x 215 mm (l x h x w) soffit profile.

Stretcher bond, 65 x 327 mm

Guidance for specification option:

890 x 65 mm (l x h) soffit profile, 327 mm-wide lintel.

Product Options

Design:

The system can accommodate a large range of bond patterns. Non-standard brick dimensions can also be accommodated. Consult manufacturer for details.

Sustainability data

Material

Brick

Stainless steel

BIM objects

Platform Compatible Version
Revit
-

1
