Application

B.O.S.S. is used to achieve brick soffits, deep reveals and flying beams on a masonry facade. Suitable for use on residential buildings under 18 metres (11 metres in Scotland).

Description

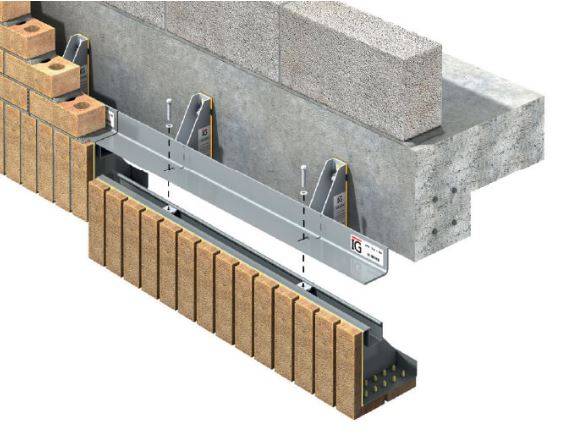

B.O.S.S. is a lightweight, stainless steel, prefabricated brick slip soffit system designed to be quickly and easily bolted to IG’s Welded Masonry Support (WMS) to create deep reveals, soffits and flying beams on masonry facades. Manufactured offsite, the prefabricated components are delivered to site complete with brick slips adhesively bonded to the stainless steel carrier unit. These BBA approved lightweight components facilitate fast and efficient installation and integrate seamlessly with brickwork constructed onsite. Installation time onsite can be reduced by up to 90% and the need for mechanical lifting is removed as B.O.S.S. units are on average 70% lighter than equivalent concrete units.

Features and benefits:

  • Simplicity of installation.
  • No brick cutting required onsite.
  • Support steelwork is completely hidden.
  • Adjustable on all axes.
  • All brick patterns and various soffit sizes achievable.
  • Blends seamlessly with brickwork constructed onsite.

Application:

B.O.S.S. is used to achieve brick soffits, deep reveals and flying beams on a masonry facade. Suitable for use on residential buildings under 18 metres (11 metres in Scotland).

General information

Color

Stainless Steel

Finish

Stainless Steel

Material

Stainless Steel

Shape

Rectangle

WarrantyDescription

10 Years

Uniclass 2015

Pr_20_85_03_50 Masonry angle supportsPrimary

CAWS

F30/265 Support system

Specification data - Masonry angle supports

Product Reference

IG Brick On Soffit System (B.O.S.S.)

Typical Design Solutions

B.O.S.S. Stretcher 65-327

Brick slip masonry support range. Size: 65 x 327 mm.

B.O.S.S. Header 65-215

Brick slip masonry support range. Size: 65 x 215 mm.

B.O.S.S. Rowlock 102-215

Brick slip masonry support range. Size: 102 x 215 mm.

B.O.S.S. Soldier 215-21

Brick slip masonry support range. Size: 215 x 215 mm.

B.O.S.S. Half Lap Bond 215-327

Brick slip masonry support range. Size: 215 x 327 mm.

Stretcher Brick On Soffit System 140-215

Brick On Soffit System range. Size: 140 x 215 mm.

Uniclass 2015 Title

Stainless steel lintels

Standard product features

Material:

Austenitic stainless Steel, Grade 1.4301 (304)

Product Options

Design:

  • B.O.S.S. Stretcher 65-327

Units to create a stretcher bond can be designed to suit a one, two and three brick deep soffit. Adjacent soffit units are designed to interlock, blending seamlessly together once the brickwork is pointed.

  • B.O.S.S. Header 65-215

Units to create a header bond can be designed to suit a one, two and three brick deep soffit. The header bond detail on the B.O.S.S. unit differentiates the soffit from the brickwork on the main facade, and are designed to blend seamlessly together once the brickwork is pointed.

  • B.O.S.S. Rowlock 102-215

Units to create a rowlock bond can be designed to suit a one, two and three brick deep soffit. The rowlock bond detail on the B.O.S.S. unit differentiates the soffit from the brickwork on the main facade, and are designed to blend seamlessly together once the brickwork is pointed

  • B.O.S.S. Soldier Brick On Soffit System 215-215

Units to create a soldier bond can be designed to suit a one, two and three brick deep soffit. The soldier bond detail on the B.O.S.S. unit differentiates the soffit from the brickwork on the main facade, and are designed to blend seamlessly together once the brickwork is pointed

  • B.O.S.S. Half Lap Bond 215-327

Units to create a half lap bond can be designed to suit a one, two and three brick deep soffit. The half bond detail on the B.O.S.S. unit differentiates the soffit from the brickwork on the main facade, and are designed to blend seamlessly together once the brickwork is pointed.

Bespoke solutions including other brick arrangements, brick formats, face heights and soffit depths can be designed to suit specific project requirements.

Note: Unit is manufactured using the brick of your choice, supplied free issue to IG Masonry Support.
