Icon Aluminium

Application

  • Commercial spaces.
  • High-quality offices.
  • Hotels.
  • Leisure areas/ clubs.
  • Theatres.

Description

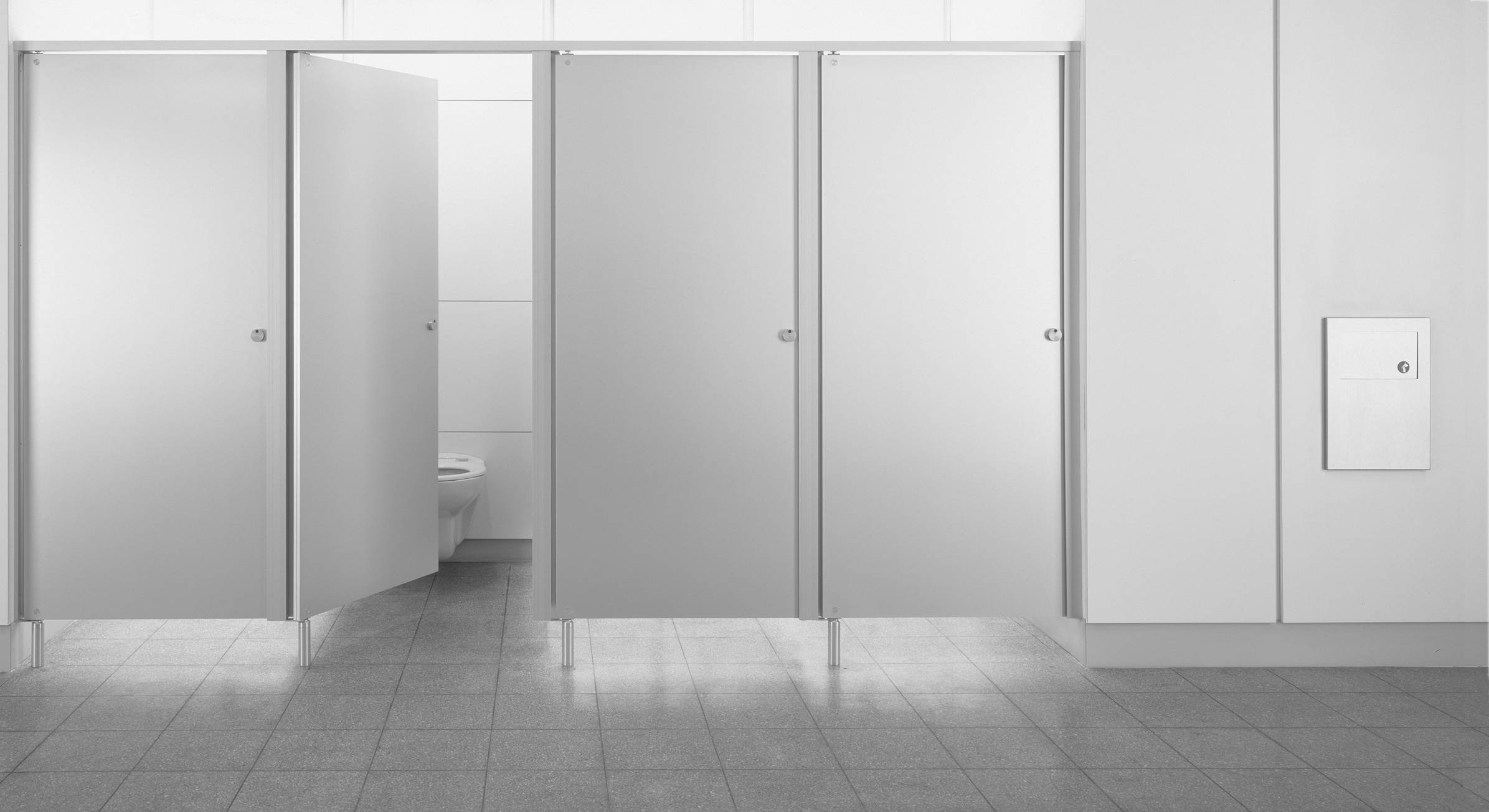

Overall aluminium cubicle height of up to 2000 mm with a 150 mm floor clearance, supplied with a ten-year warranty.


Features and benefits:

  • Full aluminium frame.
  • Pivoted door.
  • Anti-finger trap.
  • Lock located in post.
  • Stainless through-fixings.
  • Machined aluminium feet.
  • Solid aluminium lock.
  • 27 mm thick door faced with 0.7 mm anodized aluminium.
  • Double-folded on vertical edges.
  • Sealed self-closing mechanism.
  • Emergency release.

General information

Material

Aluminium

WarrantyDescription

Ten year

Size

Up to 2000 mm with 150 mm floor clearance.

-

Uniclass

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/11 Fully framed panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems Enhanced data

Panel supports

Full anodized aluminium frame using aluminium alloy 6063T6, with a 5 micron anodized finish and with 60% recycled content, comprising extruded headrail and vertical posts. Lock locates directly into vertical closing post, incorporating full-length buffer.

Doors

27 mm finished thickness, consisting of a 25 mm moisture-resistant chipboard core using timber sourced from sustainable forests, edged top and bottom in matching high-pressure laminate, then faced both sides with aluminium sheet. Each is double-folded to create a vertical seam in the centre of the door edge.

Hardware

Components tested over a cycle of 200 000 operations, equating to a ten-year period in a medium-use washroom.

Anodized aluminium lock, hand-turned in UK and able to be opened with a closed fist, fixed through the door to the faceplate for added strength. Incorporating a machined aluminium bar, with a sacrificial hard nylon shear tip, which locates into the vertical closing post. Complete with emergency release facility. Divider fixed to back wall using through-fixed extruded aluminium brackets. Aluminium coat hook supplied as standard.

System accessories

Divider.

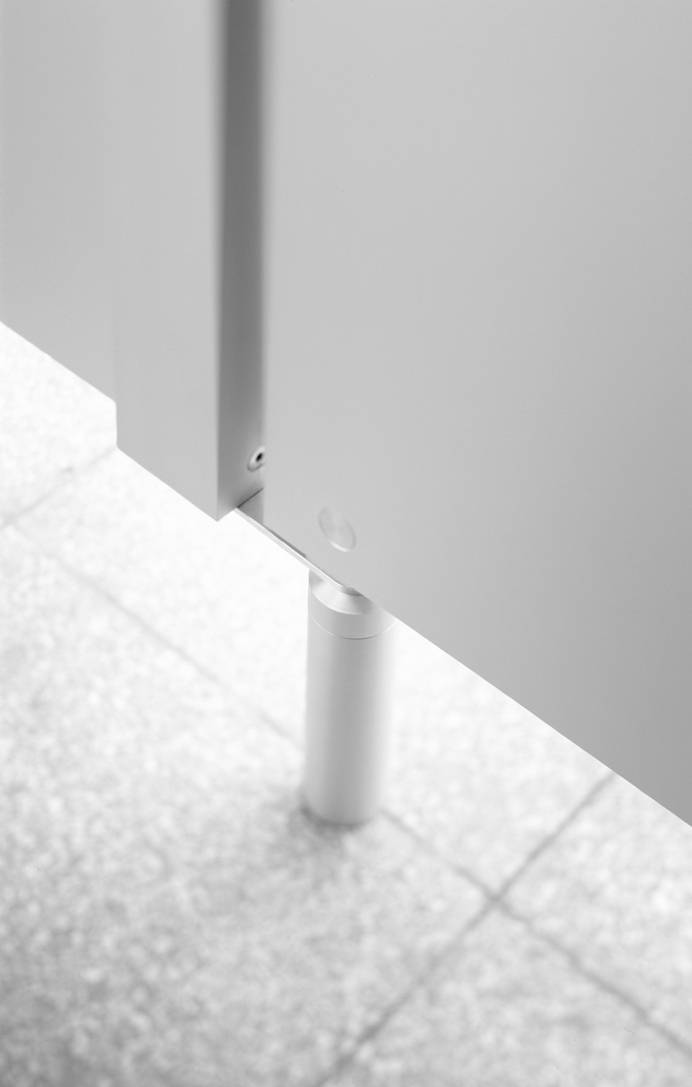

17 mm finished thickness consisting of a 15 mm moisture-resistant chipboard core using timber sourced from sustainable forests, lip-edged first to visible edges with a matching high-pressure laminate, then faced with aluminium sheet. Supported 150 mm from the floor by an engineered anodized aluminium foot, hand-turned in UK, with height adjustment.

Size:

Up to 2000 mm with 150 mm floor clearance.

-

Fascia

Where required, 17 mm finished thickness, consisting of a 15 mm moisture-resistant chipboard core using timber sourced from sustainable forests, lip-edged first to visible edges with a matching high-pressure laminate, then faced with aluminium sheet.

Product Reference

Icon Aluminium
