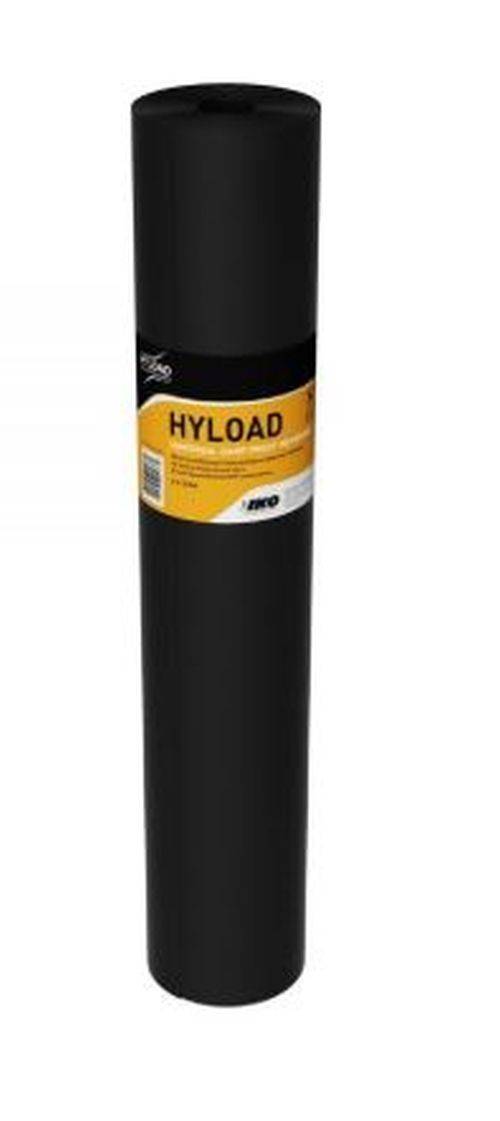

Hyload Universal DPM

Hyload Universal DPM

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

IKO PLC

A polyethylene damp proof membrane (DPM).

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

The product is primarily specified for use within floor constructions, such as ground bearing concrete slabs, beam and block floors, and structural suspended floor slabs.

Membranes should not be subjected to long periods of exposure to ultraviolet light, and covered with follow on fabric as soon as practicable.

Description

A damp proof membrane (DPM) manufactured from polyethylene which is flexible and can be used for damp proofing at or above ground level in instances that are not subject to hydrostatic pressure.

Features and benefits:

  • Tried and tested – deemed suitable for use in line with current Building Regulations, this product type has been specified for use as a damp proofing material since 1973.
  • Ease of use – does not require specialist skills to install.
  • Developed components – has a full range of system components.
  • Available as a 1200 gauge or 2000 gauge membrane.
  • Cost effective.
  • Highly resistant to puncture.
  • Manufactured from 98% recycled materials.
  • When subject to the normal conditions of use, the membrane will provide an effective barrier to the transmission of liquid water and water vapour for the life of the fabric into which it is installed.
  • CE marked.
  • Manufactured in accordance with EN 13967: 2012.

Applications:

The product is primarily specified for use within floor constructions, such as ground bearing concrete slabs, beam and block floors, and structural suspended floor slabs.

Membranes should not be subjected to long periods of exposure to ultraviolet light, and covered with follow on fabric as soon as practicable.

General information

Uniclass 2015

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/120 Loose laid plastics or rubber sheet damp proofing

J40/20 Loose laid plastics or rubber sheet damp proofing

Specification data - Plastics sheets

Product Reference

Hyload Universal DPM (300 µm), 30833500

1200 gauge (300 µm).

Hyload Universal DPM (500 µm), 30833510

2000 gauge (500 µm).

Accessories

IKO Flashing Tape

IKO Hyload Jointing Tape No2

IKO Hyload Jointing Tape No3

IKO Hyload Pre-formed Cloak Units

IKO Hyload Protection Board

Standard product features

Composition:

Recycled low density polyethylene (LDPE) form.

Roll colour:

Black.

Technical characteristics:

  • Water tightness (to EN 1928): 2 kPa: Pass.
  • Reaction to fire: F.
  • Resistance to Static Loading: Soft: Pass, Hard: Pass.
  • Durability: Heat ageing: Pass, Alkali: Pass.
  • Water tightness: Pass.

Product Options

Product reference:

– Hyload Universal DPM (300 µm):

  • 1200 gauge.
  • Sheet width: 4 m.
  • Roll length: 25 m.

– Hyload Universal DPM (500 µm):

  • 2000 gauge.
  • Sheet width: 4 m.
  • Roll length: 12.5 m.

Acccessories:

  • IKO Hyload Jointing Tape No2 – Black, double sided butyl mastic tape in 50 mm x 10 m rolls for bonding damp proof membranes at overlaps and for bonding damp proof membranes to IKO Hyload damp proof courses at junctions with internal and external walls.
  • IKO Hyload Jointing Tape No3 – Single sided PVC tape in 75 mm x 33 m rolls for securing overlap detailing at the free edge and is essential to ensure robustness at joints.
  • IKO Flashing Tape – ‘Hi-tack’, single-sided metal surfaced bitumen tape.
  • IKO Hyload Protection Board – 3 mm thick, flexible, load bearing and rot proof polymeric board. Used for the protection of membranes against damage from backfill operations, foot traffic or the process of positioning spacers and reinforcement prior to laying a reinforced concrete slab.
  • IKO Hyload Pre-formed Cloak Units – Covering all aspects of detailing from stop ends to complex and awkward interface detailing, IKO Hyload Pre-formed cloak units reduce on site detailing work to a rapid position and fix operation, whilst providing consistent quality of work throughout. Includes internal corner cloaks, external corner cloaks, and pipe penetration cloaks. Includes internal corner cloaks, external corner cloaks, and pipe penetration cloaks.

Ultrasonic welding technology allows the semi-rigid polymeric cloak material to be formed into a vast number of profiles and shapes. Consult manufacturer for details.

Third party certifications
  • CE Marked: Certificate: 0836-CPR-13/F064
