Hydroswell BentoStrip - Hydrophilic Waterstop
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
Butyl rubber and bentonite clay based hydrophilic waterstop.
Application
- Developed for the sealing of construction joints in reinforced concrete construction.
- Can also be applied as a system component for Hydroswell BentoGuard Membrane. It seals against perched water as well as hydrostatic head.
- To ensure a continuous “gasket” of the Hydroswell water bar joints should have a lateral (side by side) overlap of 100 mm with the ends pressed firmly together.
- A minimum concrete coverage of 70 mm on any exposed side is required.
- BentoStrip 2.0 can be applied both vertically and horizontally, but under no circumstances should it be used in expansion joints.
Description

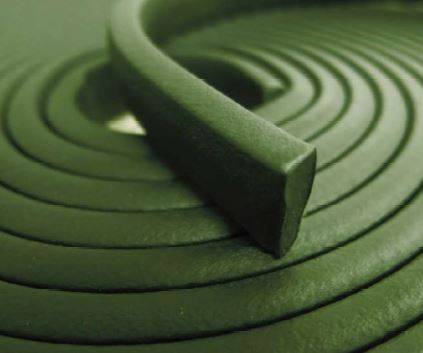

Hydroswell BentoStrip 2.0 is a high-quality butyl rubber and sodium bentonite hydrophilic water bar for the sealing of construction joints in concrete.
BentoStrip 2.0 has high resistance to a wide range of chemicals. Final confirmation about compatibility under specific conditions can be obtained from the manufacturers technical department.
Due to shrinkage of the drying concrete small voids can appear in construction and cold joints, through which water can penetrate. In contact with water, Hydroswell BentoStrip 2.0 swells to seal these voids in the joint.
Features and benefits:
- Hydroswell BentoStrip 2.0 is a permanently active system, which swells up to more than 400% of its original dry volume.
- User-friendly system: simple and quick to install by means of gun nailing, with BentoSteel 2.0 fixing mesh, tie wiring or gluing to metal surfaces.
- The use of Hydroswell BentoSteel 2.0 helps the installation and will protect the BentoStrip 2.0 against damage during pouring or compaction of the concrete.
- Able to resist hydrostatic pressures of up to 60 m of water column = 6 bar.
- The durability and performance of the Hydroswell BentoStrip 2.0 will exceed the design life of the structure (bentonite is a natural product).
- The highly elastic and plastic properties of will easily counterbalance the initial concrete shrinkage of the structure.
- Will not dissolve in water and is non-polluting.
General information
Color | Green |
Material | Butyl Clay Guidance for specification option: Sodium bentonite. |
Shape | Other |
Length | 5000 mm |
Width | 20 mm |
Height | 25 mm |
Uniclass | |
CAWS | E40/320 Hydrophilic waterstops D40/565 Proprietary waterstops |
Specification data - Rubber hydrophilic waterstops
Certification | British Board of Agrément (BBA) Certificate. |
Cross section | 20 x 25 mm. |
Expansion | Volume expansion in concrete water: 150%. |
Density | 1.43 g/cm³. |
Swelling capability | Swelling pressure when encapsulated: 1.8 N/mm². |
Resistance | Resistance to hydrostatic pressure: 6 bar. Guidance for specification option: Tested to 4 bar. |
BendRadius | 50 mm. Guidance for specification option: At corners. |
Accessories | Not required. Hydroswell BentoSteel. Guidance for specification option:
|
Third party certifications
BBA Agrément Certificate
Hydroswell Hydrophilic Waterstops: Agrément Certificate 21/5901
BBA Agrément Certificate
Hydroswell BentoGuard Membrane: Agrément Certificate 21/5917
