Hydropave Tegula 240 | Permeable Block Paving
Verified by manufacturer 4 months ago
EPD
Certificate type

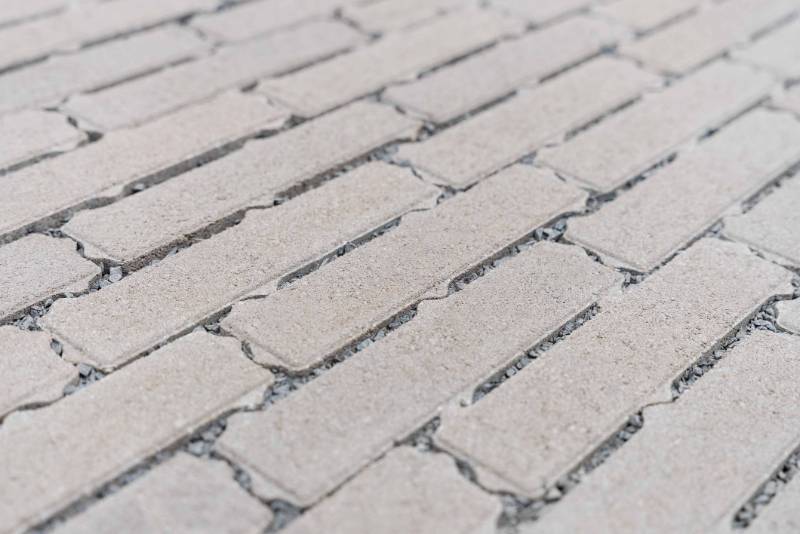

Permeable concrete paving block.
Application
For residential and commercial applications when used in conjunction with the correct sub-base design, and in accordance with the latest British Standard.
Description
Permeable paving combining the aesthetics of Tegula and the environmental benefits of permeable paving.
Features and benefits:
- Larger block size increases installation speed.
- Has frost protection.
- BREEAM rating A (A+ can be achieved when used with recycled sub-base).
General information
Color | Other Guidance for specification option:
|
Finish | Tumbled |
Material | Concrete |
Shape | Rectangle |
Length | 240 mm |
Width | 120 mm |
Height | 80 mm |
Uniclass | |
CAWS | Q24/115 Permeable concrete block paving – total infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/119 Permeable concrete block paving – no infiltration |
Product range |
Specification data - Concrete paving blocks
Standard | To BS EN 1338.Manufacturer guidanceInstalled to BS 7533-3. |
Physical properties | |
Colour | Bracken.Charcoal.Natural. |
Finish | Tumbled. |
Dimensions and associated tolerances | |
Nominal sizes | 240 x 120 x 80 mm. |
Weathering resistance | Class 3.Guidance for specification option: ≤1.0 kg/m² as a mean with no individual value >1.5 kg/m². |
Abrasion resistance | Class 3.Guidance for specification option: Wide Wheel Abrasion Test: ≤23 mm. |
Slip resistance | Mean polished skid resistance value (PSRV): >45. |
Recycled content (minimum) | Not less than 12%. |
Efflorescence | Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence. |
Drainage void width | 6% to accommodate correct grit grading, reduced maintenance and maximise drainage flow rate. |
Permeability | 35 000 L/s/ha. |
Strength | >3.6 MPa. |
EnergyUsed | 100%. |
BREEAM rating | A (A+ can be achieved when used with recycled sub-base). |
Surface finish | Hard-wearing surface layer with a minimum layer of 4 mm and >350 kg/m³ cement. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 21.67 kg CO₂ eq/m² |
Recyclability | 100% |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD
Environmental Product Declaration (EPD)- Hydropave Tegula 240, Hydropave Tegula Duo 60mm, Retro 60mm, Tegula , Tegula Setts, Tegula Trio, Kingston 215x100x65mm, Lansdowne 215x100x65mm, Kerbstone
