Description

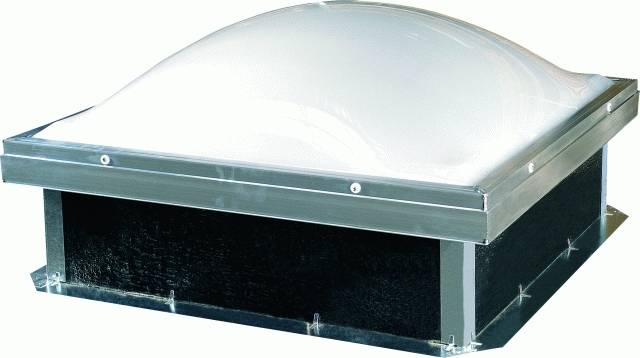

A fixed, non opening rooflight with aluminium frame and integral, insulated galvanised steel kerb.

General information
Size

As drawings

___ x ___ mm

Uniclass 2015 Framed rooflights (Pr_30_59_72_31)
Specification data
Product Reference

HYDOME

Size

As drawings

___ x ___ mm

Kerb -
Internal colour

Off White, RAL 9002

Adaptor plate

Not required

To suit builder's kerb

Glazing details

16 mm Special k Multi wall structured polycarbonate

Double dome polycarbonate

Twin wall structured polycarbonate

Other requirements

None

Anti-fall grill

Anti-access grill

Standard product features

Frame

Aluminium.

Frame finish:

Milled.

Frame colour:

Natural.

Kerb:

Integral, insulated, galvanised steel kerb 310 mm high.

Fixing:

Kerb is mechanically fastened to supporting structure with screws at max. 300 mm centres.

Product Options

Internal kerb colour:

Off White RAL 9002. Consult with Axter for availability of alternative colours and to obtain samples.

Adapter plate:

Available to suit builder's kerb.

Glazing:

  • Double dome polycarbonate, U value = 2.8 W/m²K.
  • 16 mm Special k Multi wall structured polycarbonate, U value = 2.1 W/m²K.
  • Twin wall structured polycarbonate, U = 3.1 W/m²K.

Other requirements:

  • Anti-fall grill to resist 1200 joules.
  • Anti-access grill.
