Hush Acoustic Infills - Acoustic Insulation for Metal Roof Decks - Acoustic Roof Deck Infill
Verified by manufacturer 3 days ago
Acoustic roof deck infill for profiled metal roof sheets designed to reduce reverberation and improve the general acoustic environment inside buildings.
Application
Suitable for metal roof decks of many different types used in buildings with large areas of hard internal surfaces, such as leisure centres, school sports halls and swimming pools.
Description
Acoustic infill designed to prevent reverberation and improve the acoustic environment in buildings with large areas of hard internal surfaces such as leisure centres, school sports halls and swimming pools.
It consists of rigid slabs of non-combustible mineral wool that has been factory cut to suit the upper profile of structural metal roof decks. The use of Hush Acoustic Infills can contribute towards the satisfaction of a requirement for a ceiling with Class C acoustic absorption.
Features and benefits:
- Supplied to suit any profiled roofing sheet.
- Simple to install.
- Excellent acoustic absorption.
- Water repellent.
- Maintenance free.
Hush Acoustic Infills are normally supplied in 1200mm lengths and factory cut to fit the relevant roof profile. Shorter lengths are available on request.

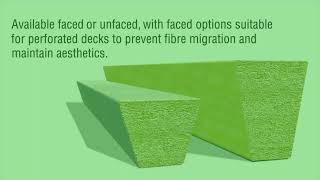

The product can also be supplied un-faced, although where it is used with perforated metal decks, it is normally faced on the lower three sides with black or white glass tissue. Alternatively it can be faced on all four sides to further decrease the risk of fibre migration.
General information
Color | Black |
Finish | Manufacturer guidance
|
Material | Mineral wool Guidance for specification option: Non-combustible. |
Shape | Trapezoid |
Length | 1200 mm |
Width | Bespoke Guidance for specification option: Factory cut to suit the upper profile of structural metal roof decks. |
Height | Bespoke Guidance for specification option: Factory cut to suit the upper profile of structural metal roof decks. |
Uniclass | |
CAWS | H31/254 Acoustic insulation H31/271 Mineral wool thermal insulation H31/50 Mineral wool thermal insulation H31/65 Profile fillers |
Product range |
Specification data - Mineral wool slab insulation
Classification data | |
Thickness | Manufacturer guidanceFactory cut to suit the upper profile of structural metal roof decks, insert requirement. |
Facing | Unfaced. Faced on four sides, black. Faced on four sides, white. Faced on three sides, black. Faced on three sides, white. |
Edges | Square. |
Density | Dense. Guidance for specification option: 80 kg/m³ mineral wool core. Fire rated. Guidance for specification option: 100 kg/m³ mineral wool core. Light. Guidance for specification option: 45 kg/m³ mineral wool core. Standard. Guidance for specification option: 60 kg/m³ mineral wool core. |
Fire performance | Non-combustible mineral wool. |
Sound insulation rating | Class C to BS EN ISO 11654. |
Length | 1200 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Mineral wool Guidance for specification option: Non-combustible. |
Literature
Hush Acoustic Infills
