Horizontal Recess Fix Cladding

Name: Horizontal Recess Fix Cladding
Brand: cgadvWiek6VKMdWpg2HdW6
SKU: r94cqHRhE3pmfffW6HJbsL

Argonaut Powder Coating Ltd

Overlapping horizontal joint rainscreen cladding system.

Jump to:

+44 (0)23 8087 3455 www.argonaut-uk.com

Description

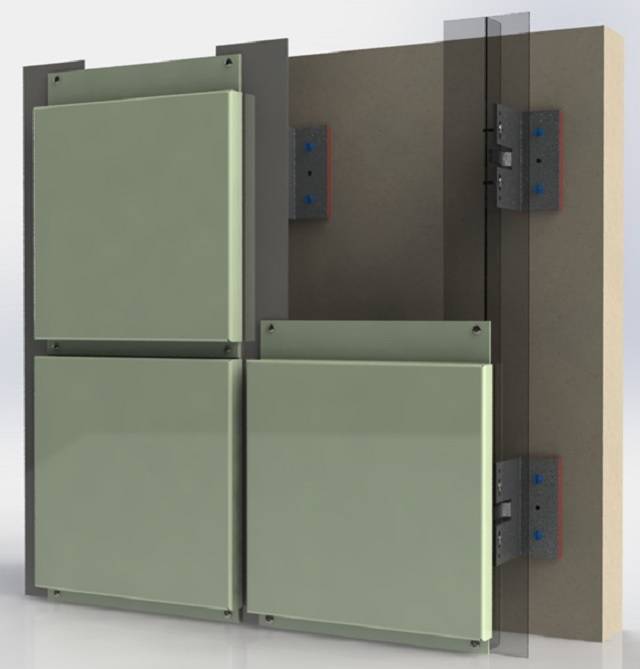

Overlapping horizontal joint rainscreen cladding system with aluminium panels, to be attached to the outer wall substrate. Based on a single skin ‘tray’ type panel offering a modern sleek design to the facade of the building.

The panel design allows for a minimal amount of fixings to be seen. Fixings are in turn fitted in the recess joints between the panels.

System includes:

Thermal isolators.

Argonaut aluminium support brackets.

Rear ventilated cavity.

Argonaut aluminium carrier system.

Rainscreen cladding panels.

General information

Material	Aluminium alloy (grade 1050 H14) for panels Aluminium alloy (grade 5083) for Argonaut aluminium support brackets Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail
Uniclass 2015	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Product Reference

Horizontal Recess Fix Cladding

Thickness

2 mm panels

3 mm panels

Finish/ Colour

Anodized

Polyester powder coated (PPC)

Insert colour requirement.

Standard product features	Material: Aluminium alloy (grade 1050 H14) for panels. Aluminium alloy (grade 5083) for Argonaut aluminium support brackets. Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail. Horizontal and vertical joint width (minimum): 21 mm. Rail centres: 600 mm. Fixings: Self-drilling screws.
Product Options	Panel size (h x l): Maximum: 600 x 3850 mm. Larger panels available subject to a Structural Engineer's report; consult manufacturer for details. Finish/ Colour: Polyester powder coated (PPC): Conforms to BS EN 12206-12004. Consult manufacturer for colour options.
