Horizontal Interlocking Cladding
Interlocking horizontal joint rainscreen cladding system.

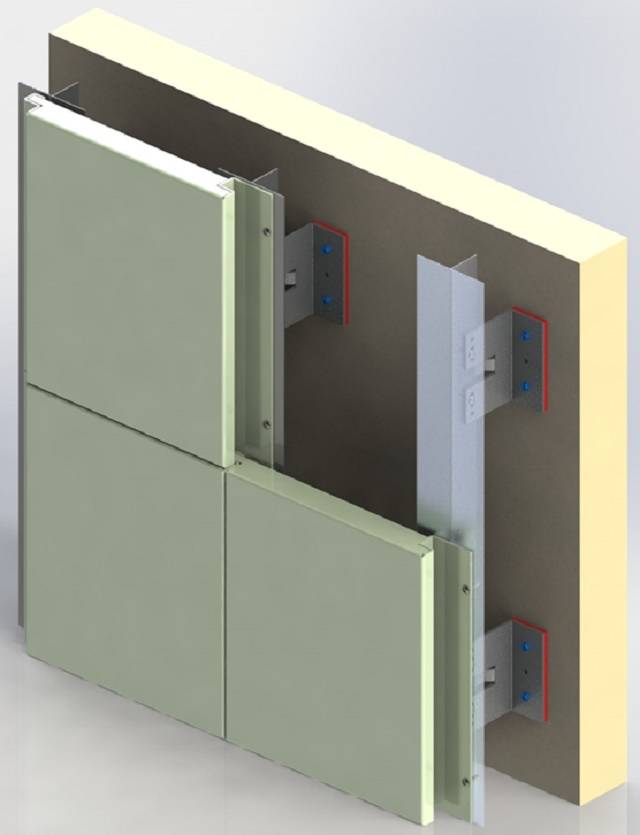

Interlocking horizontal joint rainscreen cladding system with aluminium panels, to be attached to the outer wall substrate. Based on an interlocking panel offering a modern sleek design to the facade of the building.
The horizontal top/ bottom flanges of the panels interlock with each other and are then fixed in position from the front.
System includes:
- Thermal isolators.
- Argonaut aluminium support brackets.
- Rear ventilated cavity.
- Argonaut aluminium carrier system.
- Rainscreen cladding panels.
Material | Aluminium alloy (grade 1050 H14) for panels Aluminium alloy (grade 5083) for Argonaut aluminium support brackets Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail |
Uniclass 2015 | |
CAWS | H92/120 Rainscreen cladding |
Product Reference | Horizontal Interlocking Cladding |
Finish/ Colour | AnodizedPolyester powder coated (PPC)Insert colour requirement. |
Standard product features | Material:
Thickness: 3 mm. Horizontal and vertical joint width (minimum): 10 mm. Rail centres: 600 mm. Fixings: Self-drilling screws. |
Product Options | Panel size (w x l):
Finish/ Colour: Polyester powder coated (PPC): Conforms to BS EN 12206-12004. Consult manufacturer for colour options. |
