Description

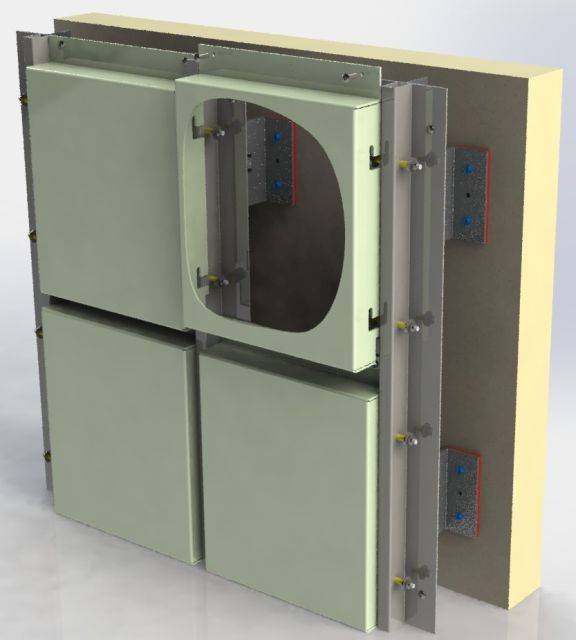

Vertical hook-on rainscreen cladding system with aluminium panels, to be attached to the outer wall substrate. Based on a ‘tray’ type panel which hooks onto spigots via a top-hat vertical rail offering a modern sleek design to the facade of the building.

System includes:

  • Thermal isolators.
  • Argonaut aluminium support brackets
  • Rear ventilated cavity.
  • Argonaut tophat carrier system (mounted to tee-rails).
  • Rainscreen cladding panels.

General information
Material

Aluminium alloy (grade 1050 H14) for panels and tophats

Aluminium alloy (grade 5083) for Argonaut aluminium support brackets

Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail

Uniclass 2015
Drained and back-ventilated rainscreen cladding systems (Ss_25_20_70_25)Primary
Specification data - Drained and back-ventilated rainscreen cladding systems
Product Reference

Hook-on Cladding

Finish/ Colour

Anodized

Polyester powder coated (PPC)

Insert colour requirement.

Standard product features

Material:

  • Aluminium alloy (grade 1050 H14) for panels and tophats.
  • Aluminium alloy (grade 5083) for Argonaut aluminium support brackets.
  • Aluminium alloy (grade 6063-T6) for Argonaut aluminium carrier rail.

Thickness:

3 mm panels.

Horizontal and vertical joint width (minimum):

25 mm.

Rail centres:

600 mm.

Fixings:

Self-drilling screws.

Product Options

Panel size (w x l):

  • Maximum: 575 x 3850 mm.
  • Wider panels available subject to a Structural Engineer's report; consult manufacturer for details.

Finish/ Colour:

Polyester powder coated (PPC): Conforms to BS EN 12206-12004. Consult manufacturer for colour options.
