Application

Suitable for residential and perimeter demarcation, including:

  • Residential and commercial.
  • Civic and public sector.
  • Education and schools.
  • Leisure and sports facilities.

Description

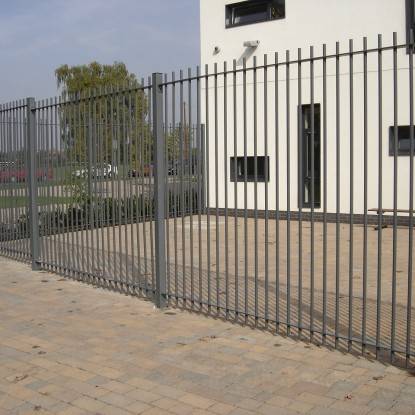

Hollow tube vertical bar railing system, similar to Zaun's solid vertical bar railings.

Features and benefits:

  • Available up to 2.4 m high.
  • Larger in diameter than the equivalent weight solid vertical bar, with a similar strength.
  • Suited to areas where appearance is a priority.
  • Economical.
  • Available with swing and sliding gates.

Applications:

Suitable for residential and perimeter demarcation, including:

  • Residential and commercial.
  • Civic and public sector.
  • Education and schools.
  • Leisure and sports facilities.

General information
Finish

Galvanized and polyester powder-coated (PPC)

Uniclass 2015 Carbon steel framed vertical section panels (Pr_25_71_50_15)
Specification data
Product Reference

Hollow Vertical Bar Railings

Rail type -
Body

Round section

Square section

Topping

Flat

Standard.

Mitred

For an attractive effect.

Height

0.5–2 m. Consult manufacturer and insert requirements.

Colour/ Finish

Insert RAL colour requirement.

Gates -
Swing

Required

To required width. Consult manufacturer and insert requirements.

Not required

Sliding

Required

To required width. Consult manufacturer and insert requirements.

Not required

Accessories/ Other requirements

Not required

Ornate finials

Standard product features

Finish:

Galvanized and polyester powder-coated (PPC).

Posts and rails:

  • Posts: At 0.5–1.2 m height: 50 x 50 mm; at 1.2–1.5 m: 70 x 70 mm; at 1.6–2 m: 80 x 80 mm.
  • Rails: 50 x 10 mm.
  • Post centres: 2760 mm.

Tube thickness:

At 0.5–1.2 m height: 20 mm; at 1.2–2 m: 25 mm.

Wall thickness:

1.5 mm.

Literature
