Hockey fencing systems.
Zaun’s Hockey 200 Spectator Rails are specifically designed to improve safety for both players and spectators. They are manufactured to the highest quality from strong tubular section and supplied with the Hockey 200 mesh infill – making them lightweight, robust and attractive.
The mesh infill is produced using twin wire 6 mm horizontal wires and uses EPDM rubber inserts to insulate the panels from the noise from impact during play, while stylish fixings hold the horizontal rails.
They can be designed with any number of gates of any size into the pitch perimeter to allow maintenance equipment unfettered access to the pitch.
Features and benefits:
Galvanized and polyester powder coated
Q40/125 Open mesh steel panel general purpose fencing
Q40/27 Open mesh steel panel general purpose fencing
Q40/30 Proprietary fencing
Q40/430 Proprietary fencing

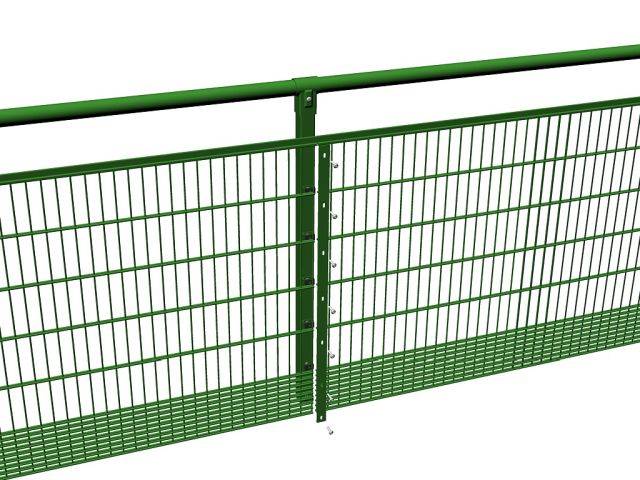

Hockey 200 Spectator Rail
1.0–1.2 m, insert requirements.
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Standard product features
Galvanized and polyester powder coated.
Hockey mesh comprising 200 mm of 25 x 50 mm mesh and 200 x 50 mm Duo8 mesh above with single 6 mm vertical wires 50 mm centres and dual 8 mm horizontal wires at 200 mm centres.
60 x 60 mm rectangular hollow section (RHS) posts, spaced at 2525 mm centres.
Post to panel fixing:
Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 200 mm centres with EPDM inserts. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Framed in 50 x 50 mm RHS, with Zaun Hockey 200 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
