Description

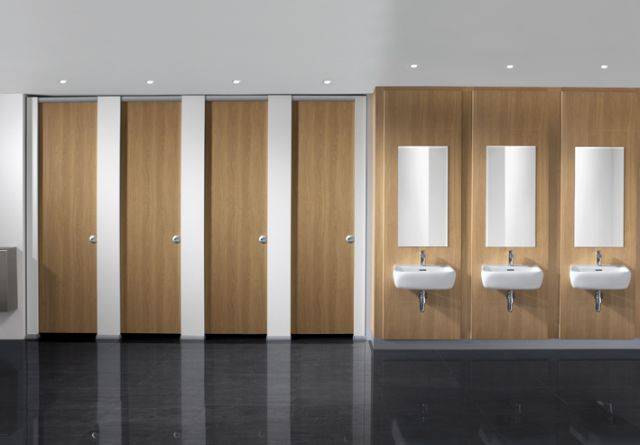

HiZone SGL is a complete full height cubicle. Featuring standard 50 mm floor clearance to doors and aluminium skirting to partitions as standard. HiZone is a robust cubicle ideal for any prestigious environment, including office washrooms or retail changing rooms. Available with full height door or door and over panel.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: headrail, pilaster shoe, hinges and channel.

General information
Specification data - Fully-framed panel cubicle systems
Product Reference

HiZone SGL Panel Cubicles

Configuration

Door and over panel

Full height door

Height

___ mm

As drawing ___

Colours -
Hinges/ Channel

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Faceplate & Pilaster Shoe

Charcoal grey

Powder coated ABS.

Silver

Powder coated ABS.

Panels

Refer to manufacturer's standard colour range.

Pilaster

Refer to manufacturer's standard colour range.

Accessories

Refer to manufacturer's standard accessories range.

Standard product features

Panel Material:

  • High density solid grade laminate panels, 1400 kg/m³.
  • Thickness (overall): 13 mm nominal.
  • Edge detail: Polished black radiused edges.

Product Options

Colours:

- Panels & Pilasters:

36 laminate colour options - select from manufacturer's literature.

Heights:

  • Minimum: 2250 mm.
  • Maximum: 2550 mm.

Accessories:

Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
